As someone who has spent years walking through noisy corrugator halls and fine‑tuning carton printing machines for overseas brand owners, I've seen firsthand how a simple corrugated box evolves from wet wood pulp into a high‑precision, fully printed shipping container. In this guide, I'll walk you through that journey step by step, highlight where printing and converting decisions make or break box performance, and share practical tips I give to packaging buyers, wholesalers, and factory owners around the world. [aopackmachine]
Corrugated boxes are multi‑layer paper structures designed to protect, transport, and display products in global supply chains. A typical shipping carton has two flat paper layers (linerboards) and one fluted medium in between, forming a strong but lightweight sandwich. [aopackmachine]
Key elements you must know before talking to any supplier or OEM partner:
- Linerboard: Outer and inner flat layers, typically kraft or white‑top, providing print surface and stacking strength. [aopackmachine]
- Corrugated medium (fluting): Wavy inner layer that absorbs shocks. [packagingdigest]
- Board combinations: Single‑wall (3‑ply), double‑wall (5‑ply), and triple‑wall (7‑ply) for heavier loads. [airseacontainers]
- Flute types: A, B, C, E, F and combinations (e.g., BC, EB), each balancing cushioning, printability, and thickness. [aopackmachine]
For packaging engineers and buyers, choosing the right flute and board grade is just as important as choosing the right printing machine or die‑cutting technology. [lansbox]
The journey begins with cellulose fiber sourced from wood pulp (pine, fir, and other softwoods) and increasingly from recycled paper streams. [aopackmachine]
- Wood logs are chipped and processed into pulp through chemical or mechanical pulping, breaking down lignin and freeing cellulose fibers. [aopackmachine]
- Mills either integrate pulping and papermaking or buy market pulp in bale form, re‑pulp it with water, and refine it for paper production. [aopackmachine]
- Fibers are cleaned, sometimes bleached, and then formed into kraft paper used as linerboard and corrugating medium. [packagingdigest]
From an industry perspective, the stability of paper quality (burst strength, compression, moisture content) is the foundation for consistent corrugation and high‑quality printing later. [aopackmachine]
Once large rolls of linerboard and medium arrive at the box plant, they are loaded onto the corrugator, a long integrated machine that transforms paper into corrugated board. [aopackmachine]
- Rolls are mounted on reel stands and spliced for continuous running. [packagingdigest]
- Paper is preheated and conditioned to reach proper moisture and temperature, increasing flexibility and bonding strength. [lansbox]
- The corrugating medium passes between fluted rollers under heat and pressure to form the familiar wave structure. [aopackmachine]
- Starch adhesive is applied to flute tips, and the first liner is pressed on to create single‑face board. [aopackmachine]
- A second liner (and more mediums/liners for double‑ or triple‑wall) is glued to create finished corrugated board. [airseacontainers]
- The board is dried, tension‑controlled, and flattened to maintain consistent caliper and strength. [lansbox]
Quality checkpoints at this stage include:
- Flute integrity and height.
- Bond strength between liners and medium.
- Board warp control, which later affects printing registration and die‑cutting accuracy. [lansbox]
Once corrugated board exits the corrugator, it moves to converting lines where it is transformed into box blanks ready for folding and gluing. [packagingdigest]
- Slitter‑scorers trim board to width, cut to required length, and score fold lines. [aopackmachine]

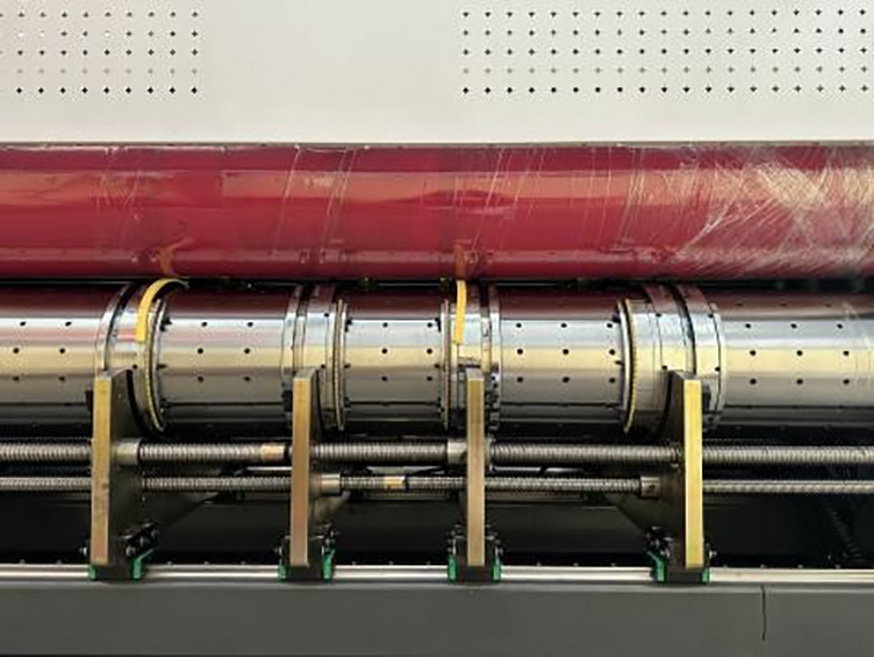

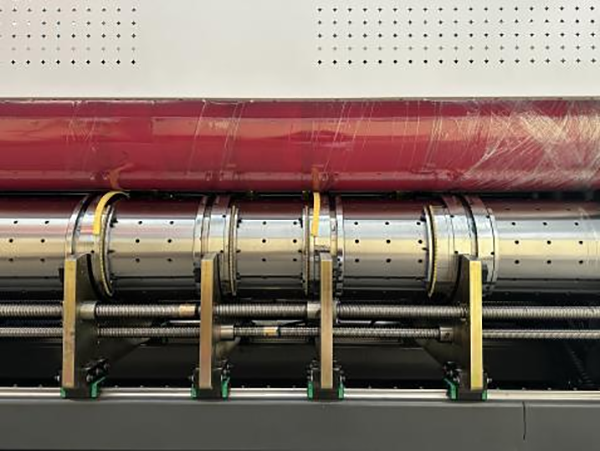

- Slotters and die‑cutters create flaps, hand holes, ventilation slots, and special shapes required by brand owners. [lansbox]
From my experience, accurate scoring and slotting are essential for dimensional tolerances and smooth high‑speed folding on downstream machines. [grandviewresearch]
- High‑volume industrial plants often use in‑line flexo printer‑slotter‑die‑cutter lines, integrating printing, slotting, and die‑cutting in one pass. [futuremarketinsights]
- For complex graphics or specialty boxes, converters may run separate printing, die‑cutting, and folding‑gluing steps off‑line. [airseacontainers]
For overseas wholesalers and brand owners, printing quality on the carton is not just cosmetic; it is part of the brand identity and logistics system. This is where our role as an OEM carton printing machine manufacturer in China becomes critical. [ouyecartonmachine]
- Flexographic (flexo) printing: The mainstream choice for shipping cartons; uses flexible plates and water‑based inks, ideal for medium‑ to high‑volume orders. [aopackmachine]
- Digital printing: Growing for short runs, multi‑SKU campaigns, and variable data like QR codes and personalization. [grandviewresearch]
- Preprint liner: High‑quality graphics printed on linerboard before corrugation, then combined into the board. [airseacontainers]
In our factory, we see a strong shift from single‑color or two‑color flexo to high‑efficiency multi‑color printing machines with automated registration and quick job changeover to support e‑commerce and retail packaging. [ouyecartonmachine]
Based on OEM project feedback from European and American clients:
- Specify board quality and moisture range clearly, because unstable board leads to poor registration and wash‑boarding in flexo printing. [packagingdigest]
- Align print direction with flute orientation to reduce cracking on scored lines and keep barcodes scannable. [airseacontainers]
- For high‑coverage solid areas, ask your supplier about anilox configuration, plate material, and ink type; this dramatically affects color consistency. [futuremarketinsights]
After printing and die‑cutting, the flat box blanks move to folding and gluing stages. [aopackmachine]
- Blanks are fed into folder‑gluer or flexo folder‑gluer lines where scores are folded, side seams are glued or stitched, and boxes are squared. [lansbox]
- Depending on design, boxes may use cold glue, hot melt, or wire stitching, especially for heavy‑duty applications. [towardspackaging]
- Finished boxes are stacked, bundled, strapped, and prepared for palletizing and shipment to end users. [packagingdigest]
At this stage, our overseas partners usually focus on erection performance on their packing lines—how smoothly boxes open, how well they hold shape, and how consistent inner dimensions are. [aopackmachine]
As an OEM supplier, we often work with clients to align box specifications, testing standards, and machine settings so their packaging passes both internal QA and third‑party audits. [airseacontainers]
Typical tests include:
- Edge Crush Test (ECT) and Box Compression Test (BCT) for stacking strength. [lansbox]
- Bursting strength, checking resistance to impact and internal pressure. [aopackmachine]
- Cobb test, measuring water absorptiveness of paper. [aopackmachine]
- Dimensional tolerance and print registration checks at converting lines. [packagingdigest]
Modern corrugated plants integrate these checks into real‑time data systems, reducing waste and improving overall equipment effectiveness (OEE) on corrugators and carton printing machines. [grandviewresearch]
Corrugated packaging is not a static, low‑tech industry anymore; it is closely linked to e‑commerce, sustainability, and automation. [gminsights]
- The global corrugated packaging market was valued around USD 233.8 billion in 2024 and is projected to reach about USD 380 billion by 2034, with roughly 5% annual growth. [gminsights]
- The corrugated box market specifically is forecast to grow from about USD 179.8 billion in 2025 to around USD 297.0 billion in 2035, at a CAGR of about 5.1%. [futuremarketinsights]
Key demand drivers:
- Explosive growth of online retail requiring sturdy shipping boxes.
- Strong focus on recyclable and sustainable packaging in food, electronics, and pharmaceuticals. [futuremarketinsights]
At the equipment level, the corrugated box making machine market is also expanding, expected to exceed USD 3.3–4.4 billion by the mid‑2030s, reflecting continuous investment in higher‑speed, more automated equipment. [futuremarketinsights]
Hebei Ou Ye Carton Machinery Manufacturer is one of the Chinese factories specializing in carton printing machines and linked production lines for overseas markets. We work with foreign brand owners, wholesalers, and box plants as OEM partners, designing and manufacturing equipment under their private labels or customized configurations. [ouyecartonmachine]
From our daily communication with customers in Europe, North America, Southeast Asia, and the Middle East, the main reasons include:
- Cost–performance balance: Achieving comparable print quality and speed with more competitive investment and operating cost. [ouyecartonmachine]
- Customization freedom: Tailoring printing sections, feeding units, slotting modules, and stackers to specific product portfolios. [ouyecartonmachine]
- 24/7 remote support: Online diagnostics, spare‑parts recommendations, and training help maintain uptime. [ouyecartonmachine]

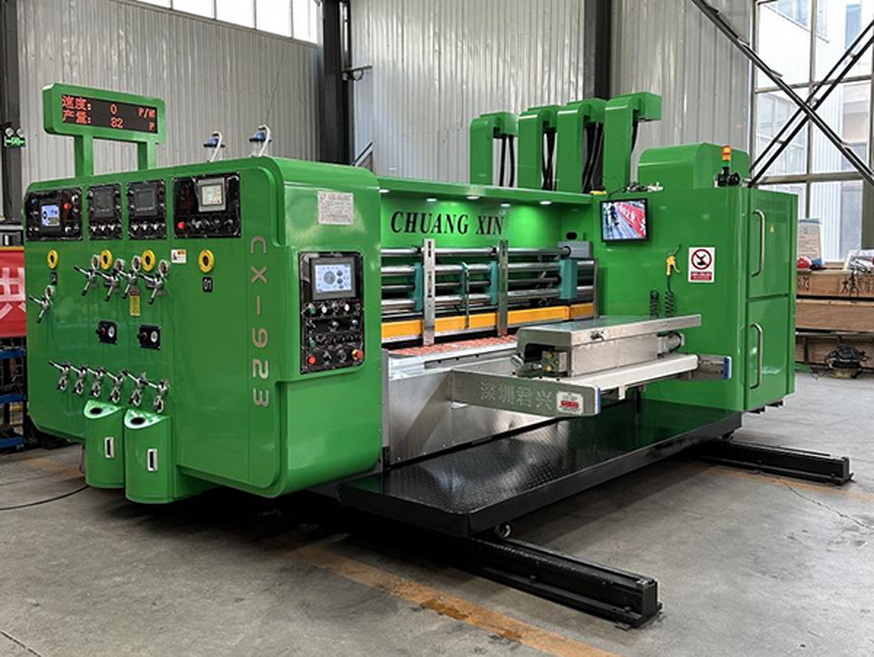

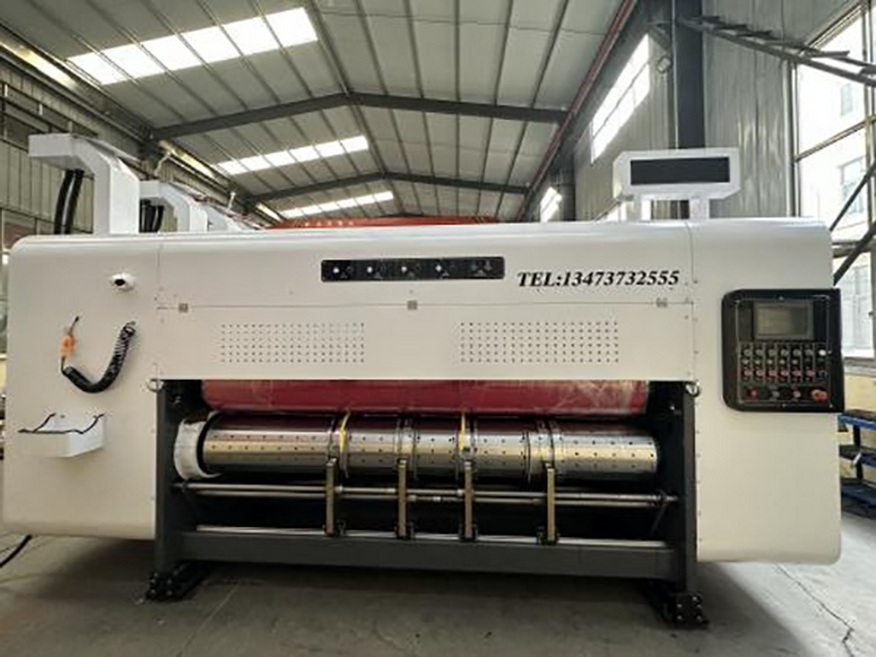

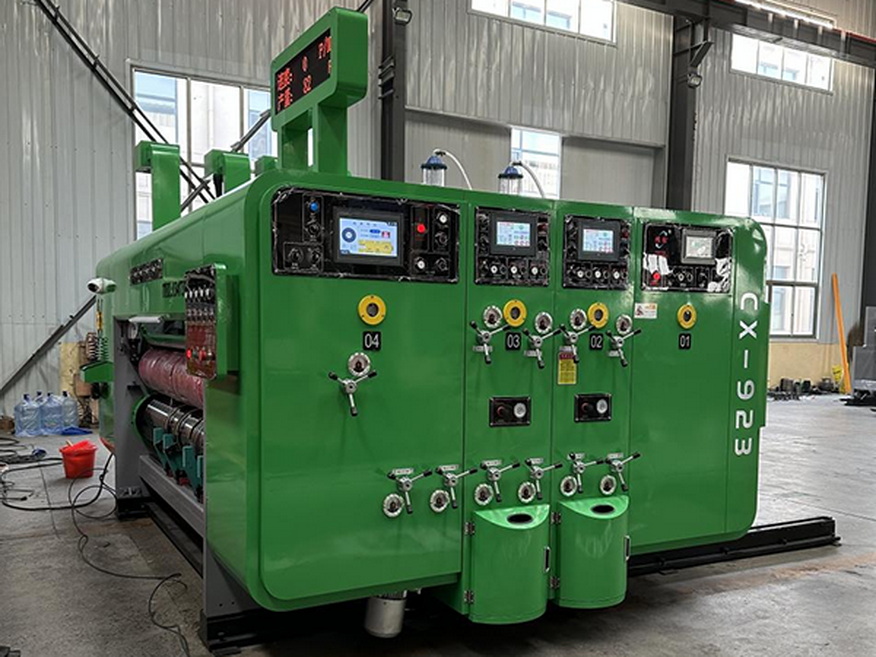

A modern carton printing machine configuration for export clients often includes:
- Lead edge or vacuum feeding system for stable sheet transport.
- 2–5 color flexo printing units with automatic plate cleaning and register control.
- High‑precision slotting, die‑cutting, and folding‑gluing sections.
- Intelligent control systems and data interfaces for plant‑wide integration. [ouyecartonmachine]
When I support new overseas customers, I usually walk them through this simple checklist before they finalize box or machine specifications:
1. Define product and logistics risk
- Weight, fragility, stacking height, transport distance, climate conditions.
2. Choose board structure and flute
- Single vs. double wall, flute type (B/C/E, etc.), target ECT/BCT values. [airseacontainers]
3. Clarify printing requirements
- Number of colors, registration tolerance, barcodes/QR, branding elements, ink and coating choices. [lansbox]
4. Align machine capability with growth plan
- Required speed, job change frequency, automation level, and long‑term capacity needs. [grandviewresearch]
5. Set up quality and testing standards
- Testing methods, acceptance criteria, and reporting format to avoid disputes downstream. [aopackmachine]
Using a structured checklist like this dramatically improves communication between brand owners, box suppliers, and OEM machine manufacturers, reducing project delays and rework. [futuremarketinsights]
If you are considering adding or upgrading carton printing capacity, selecting the right OEM partner is as important as choosing the machine model itself. [ouyecartonmachine]
Use this quick evaluation table during vendor selection:
| Evaluation aspect | What to check | Why it matters |
|---|---|---|
| Mechanical stability | Frame thickness, drive system, precision components | Ensures print registration and long service life. (ouyecartonmachine) |
| Print capability | Max colors, repeat length, registration tolerance | Aligns machine with branding and barcode needs. (lansbox) |
| Automation level | Auto setup, job memory, remote diagnostics | Reduces changeover time and operator dependency. (grandviewresearch) |
| OEM/ODM experience | Export projects, private label cases, certifications | Lowers project risk and speeds compliance approvals. (ouyecartonmachine) |
| After‑sales service | Spare parts lead time, training, online support | Protects uptime and total cost of ownership. (ouyecartonmachine) |
When we cooperate as an OEM, we usually start with a joint technical review, then provide layout drawings, utility requirements, and ROI calculations based on the customer's actual order mix. [ouyecartonmachine]
If you are a brand owner, wholesaler, or box factory looking to upgrade from basic brown cartons to efficient, high‑impact printed packaging, the right partner can shorten your learning curve dramatically. Whether you need a single high‑efficiency carton printing machine or a complete carton linkage production line, our engineering team in Hebei is ready to help you define specifications, optimize layouts, and customize functions for your market. [ouyecartonmachine]
You can share your current box samples, design files, or technical requirements, and our team will recommend suitable machine configurations and OEM options tailored to your growth plan. [ouyecartonmachine]
1. How long does it take to produce corrugated boxes from raw materials?
From pulp production to finished corrugated boxes, integrated mills and box plants can complete the process within a few days, although most buyers only see the final 1–2 day converting lead time at the box plant. [aopackmachine]
2. What is the difference between single‑wall and double‑wall corrugated board?
Single‑wall uses one fluted medium between two liners and suits most standard shipping cartons, while double‑wall adds another medium and liner for higher stacking strength and heavy‑duty applications. [packagingdigest]
3. Which printing method is best for corrugated boxes?
Flexographic printing is the most common for large‑volume shipping boxes, while digital printing works best for short runs, many SKUs, and variable or personalized designs. [grandviewresearch]
4. How is box strength tested?
Box manufacturers typically use Edge Crush Test (ECT), Box Compression Test (BCT), burst strength, and Cobb tests to verify stacking resistance, impact strength, and moisture behavior. [aopackmachine]
5. Why are more buyers investing in new carton printing machines now?
Rising e‑commerce volumes, stricter sustainability requirements, and the need for better branding on shipping boxes are driving investment in faster, more automated, and energy‑efficient carton printing and converting equipment worldwide. [towardspackaging]
