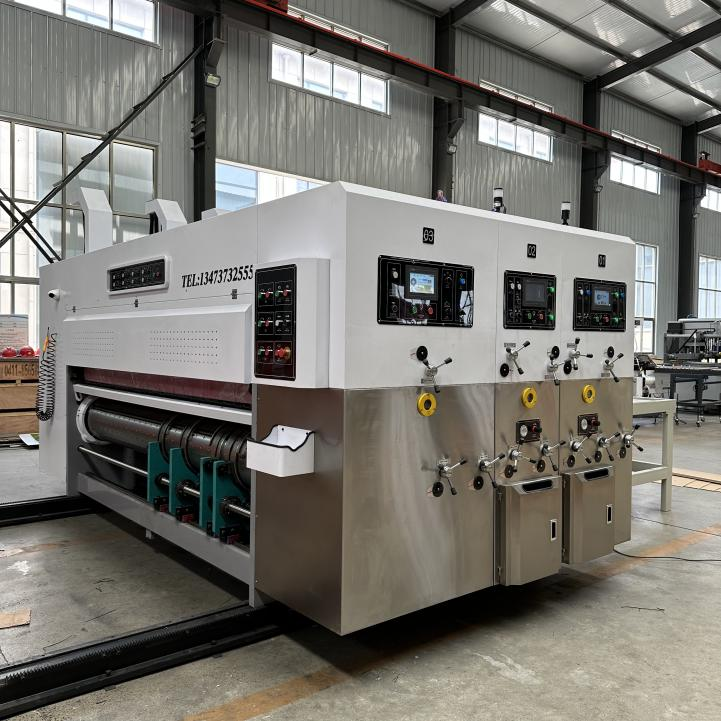

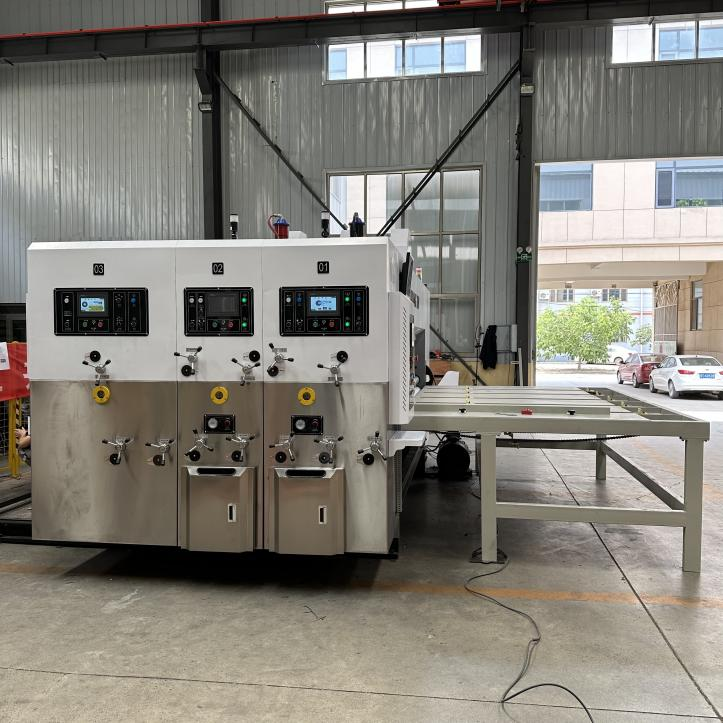

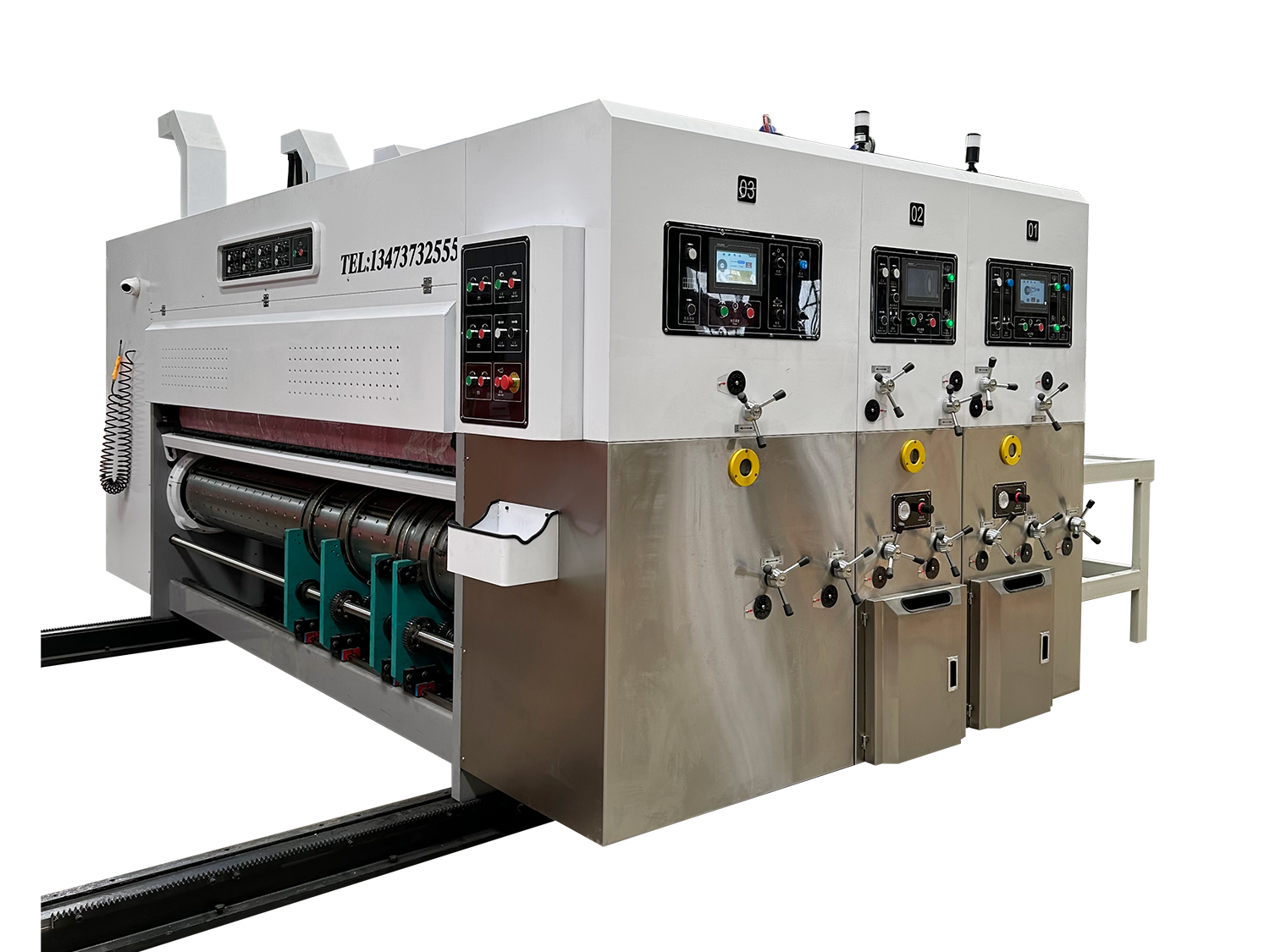

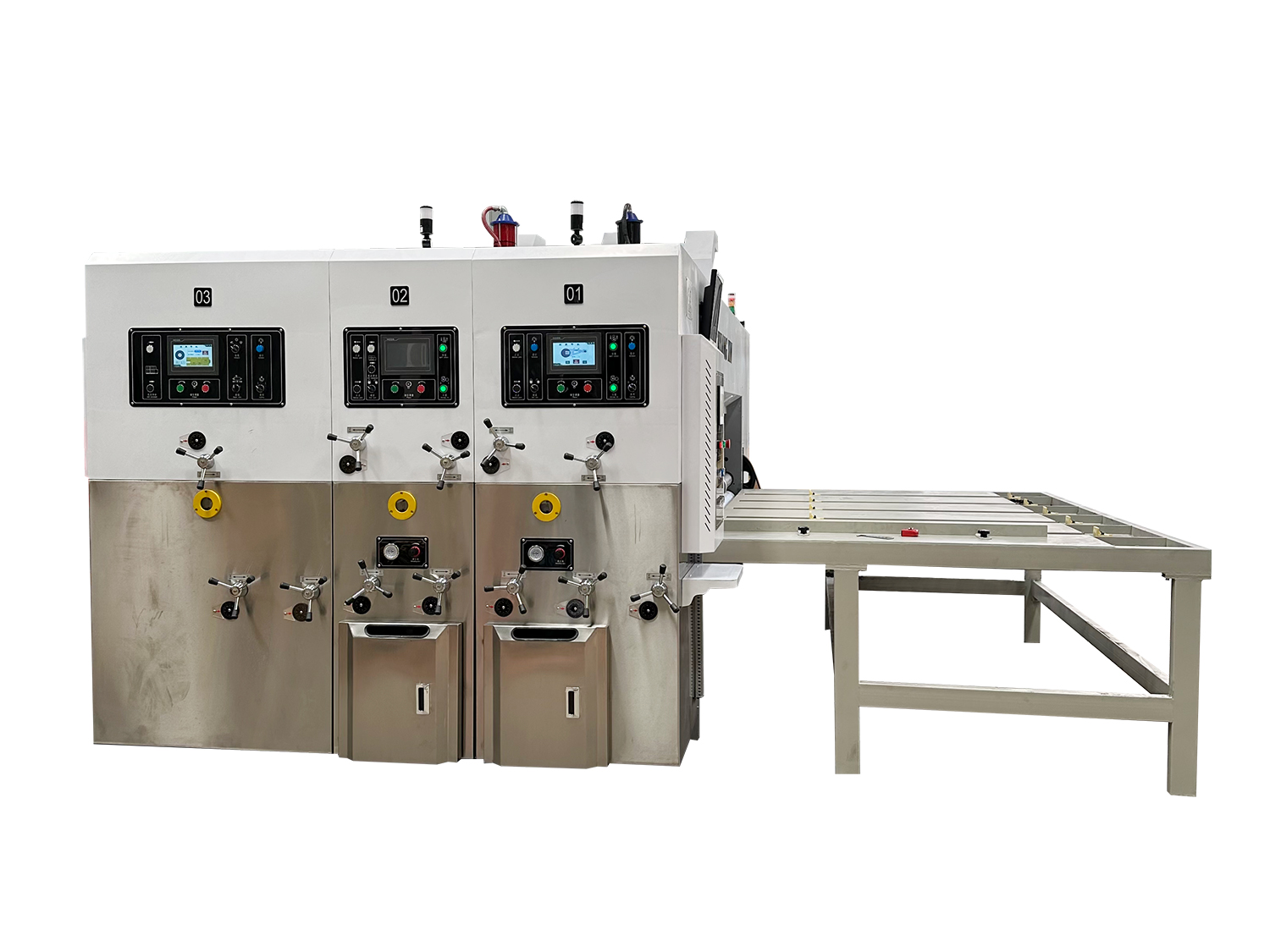

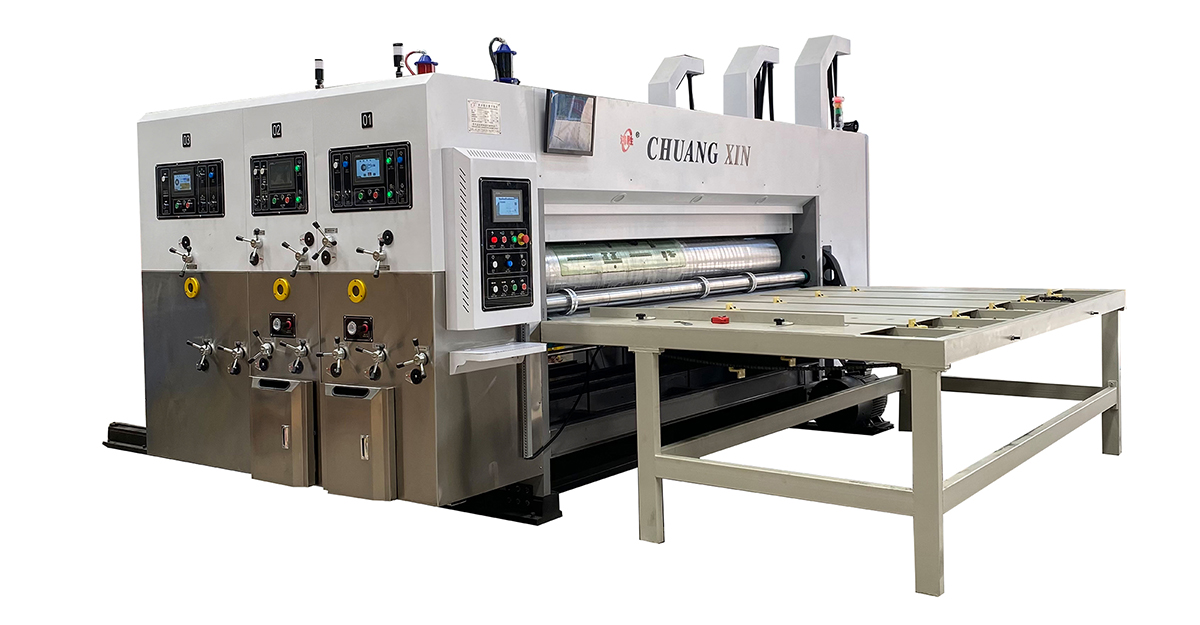

Semi automatic carton box printing slotting die cutting stacking machine
Model | Max.paper feeding size | Effective printing size | The thickness of the plate | Min.paper feeding size | Speed | Dia. |
YSM-A2000 | 1900*900mm | 1700*900mm | 4-7mm | 300*600mm | 80 | 300 |
YSM-A2200 | 2100*900mm | 1900*900mm | 4-7mm | 300*600mm | 80 | 300 |
YSM-B2400 | 2300* 1250mm | 2100*1250mm | 4-7mm | 350*600mm | 60 | 405 |
YSM-B2600 | 2500* 1250mm | 2300* 1250mm | 4-7mm | 350*600mm | 60 | 405 |
YSM-C2600 | 2500* 1470mm | 2300* 1470mm | 4-7mm | 400w600mm | 60 | 480 |
YSM-C2800 | 2700* 1470mm | 2500* 1470mm | 4-7mm | 400*600mm | 60 | 480 |
YSM-D2800 | 2700* 1600mm | 2500* 1600mm | 4-7mm | 400*600mm | 60 | 530 |
YSM-D3000 | 2900* 1600mm | 2700* 1600mm | 4-7mm | 400*600mm | 60 | 530 |
1. This machine adopts chain feeding type, bilateral blocking (side lay) positioning, to ensure that feed paper accurately.
2. Each unit uses electric to separate and combine, pneumatic locking, pneumatic lift plate, automatic ink distributing, pneumatic brake fission positioning.
3. Print and die cut adopts structure of planetary gear type, electric 360° adjustment, digital display.
4. The lubrication way adopt double oil pump, automatic spray, circulating oil supply, keep the balance of the oil level, greatly improve the operation precision and the service life.
5. The machine gear uses 45# steel, helical gear design, shaving uses high frequency quenching.
6. The machine transmission uses cross slide block structure, adopts free key connection, remove the link clearance, operate smoothly.
7. The shaft and roller of the machine are all grinding processing, hard chromium plating.
8. The machine electrical adopts the international famous brand, such as Siemens, Schneider.
9. The machine bearing, adopts one of three domestic famous brands:"Hawa los".
10. The hanging plate is optional, anilox roller mesh can option 180-260 mesh.
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
