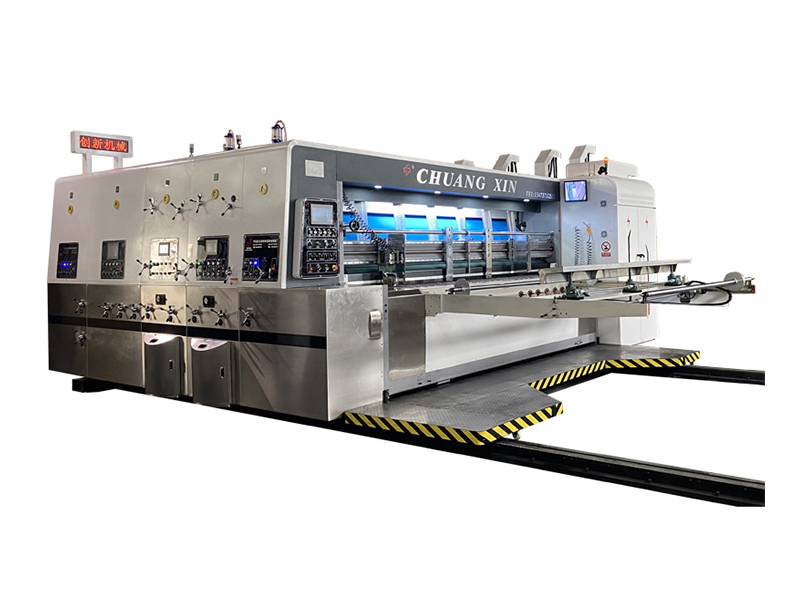

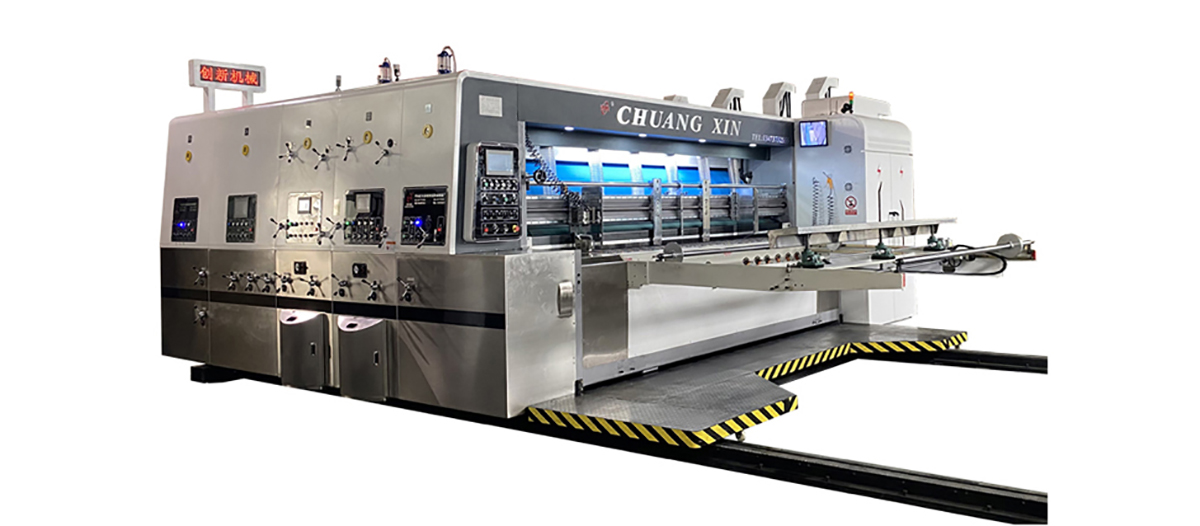

Large Carton Multi-Color Printing Slotting Die Cutting Machine

1. CNC control system (Intelligent Control)
2. Environmental Protection and Energy Saving, use washable ink;
3. Apply to box for big household appliances such as refrigerator, air-conditioner, and heavy industrial box, such as motorbike, auto spare parts.
4. Able to print and make honeycomb box.


Availability:



Inquire Add to Basket

Product Description

Equipment Highlights

1. CNC control system (Intelligent Control)

2. Environmental Protection and Energy Saving, use washable ink;

3. Apply to box for big household appliances such as refrigerator, air-conditioner, and heavy industrial box, such as motorbike, auto spare parts.

4. Able to print and make honeycomb box.

Specifications

Data/Model	1600*3600	2200*3600	2200*4000	2200*4600	2200*5300	2600*3600	2600*4000	2600*4600	2600*5300
Printing Speed(m/min)	160	160	160	160	160	160	160	160	160
Max.Machine Speed(pcs/min)	120	100	100	100	80	80	80	80	80
Max.Feeding Size(mm)	1570x3600	2100x3600	2100x4000	2100x4600	2100x5300	2500x3600	2500x4000	2500x4600	2500x5300
Min.Feeding Size(mm)	450x760	550x900	550x900	550x900	550x900	650x900	650x900	650x900	650x900
Max. Printing Area(mm)	1540x3600	2080x3600	2080x4000	2080x4600	2080x5300	2480x3600	2480x4000	2480x4600	2480x5300
Thickness of Printing Plate(mm)	7.2	7.2	7.2	7.2	7.2	7.2	7.2	7.2	7.2
Min. Panel(mm) Slot Type L.	280x100x280x100	330x110x330x110	330x110x330x110	330x110x330x110	330x110x330x110	360x110x360x110	360x110x360x110	360x110x360x110	360x110x360x110
Max. Slotting Depth(mm)	560	750	750	750	750	850	850	850	850
Max. Thickness of Sheet(mm)	12	12	12	12	12	12	15	15	15
Dimension(LxWxH) T	19852x6670x2700	21173x6670x2800	21173x7070x2800	21173x7670x2800	21173x8370x2800	22495x6670x3000	22495x7070x3000	22495x7670x3000	22495x8370x3000

Main Features

This automatic carton box making machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
Auto high quality materials and parts.
Well hardened and ground transmission gears, hardness more than 60(HRC).
Auto zero return and auto reset.
Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.
All cylinders and rollers are chromed plated for ideal hardness.
PLC control system with touch screen control.
Able to save order,speed up the order shift.
All electronic and pneumatic components are with European standards.
Lead edge feeder or kick feeder is for choice.

Printing Sample

微信图片_20250626174302

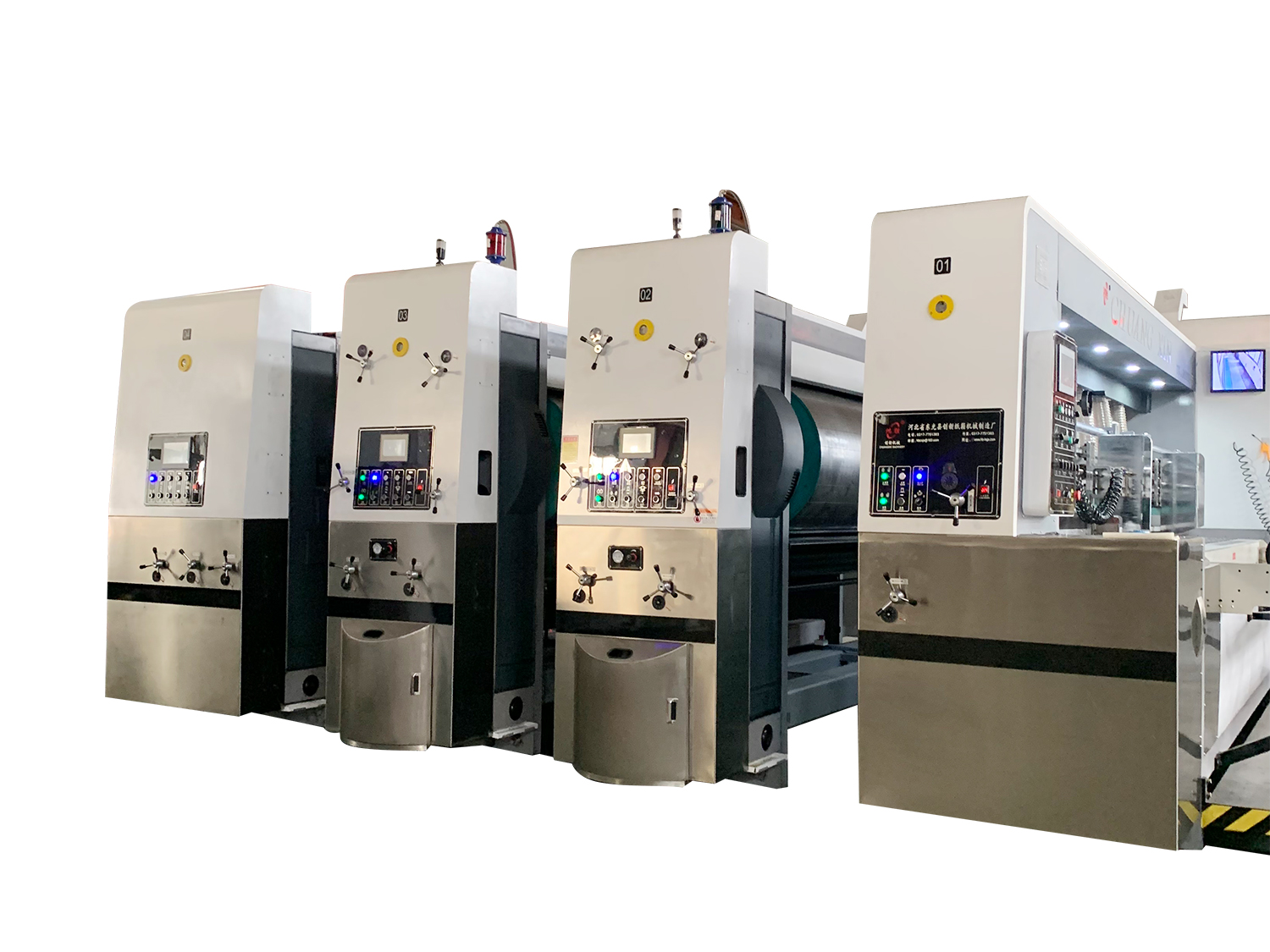

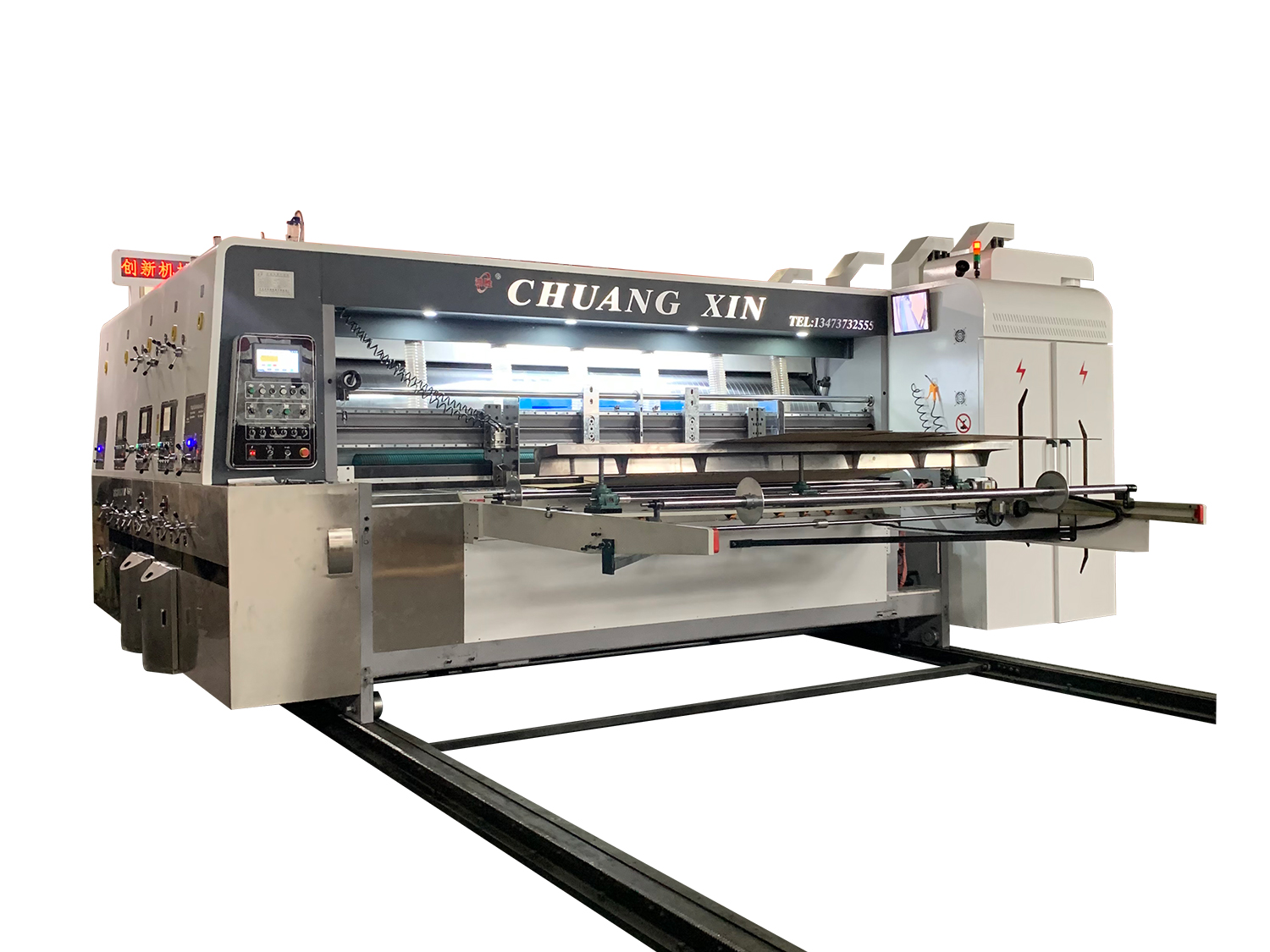

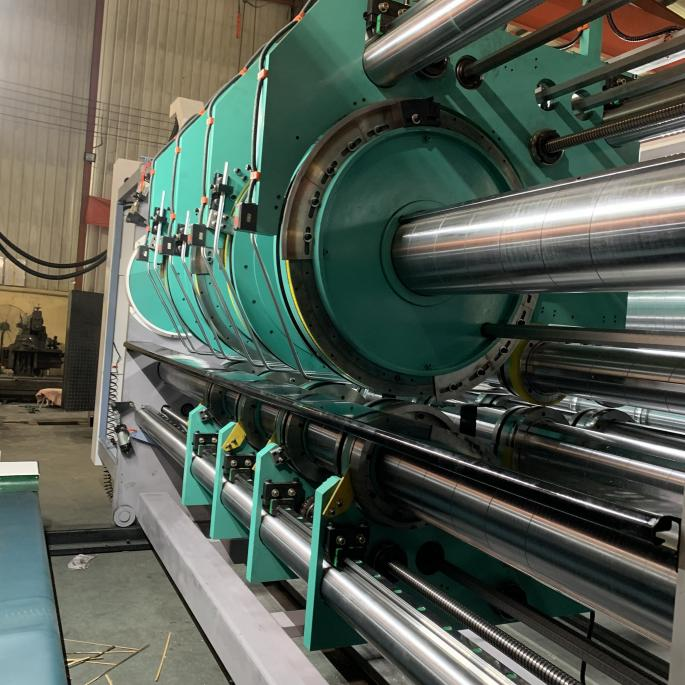

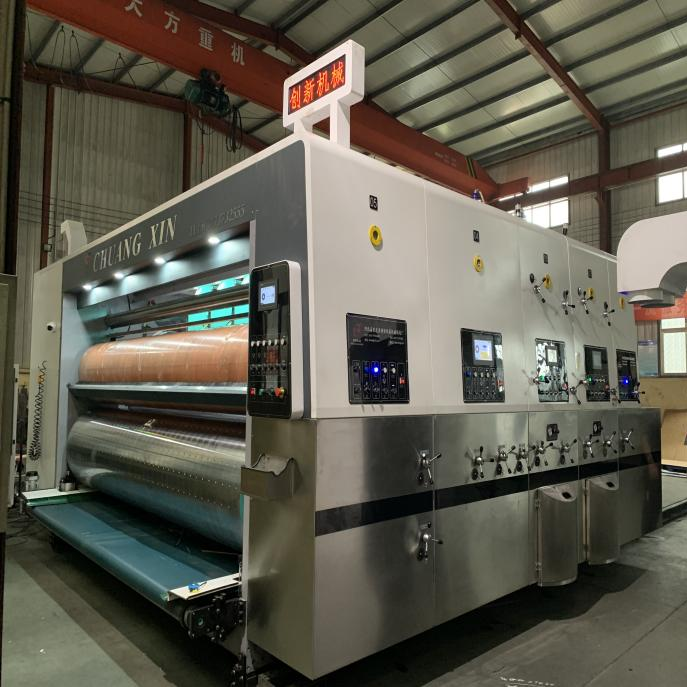

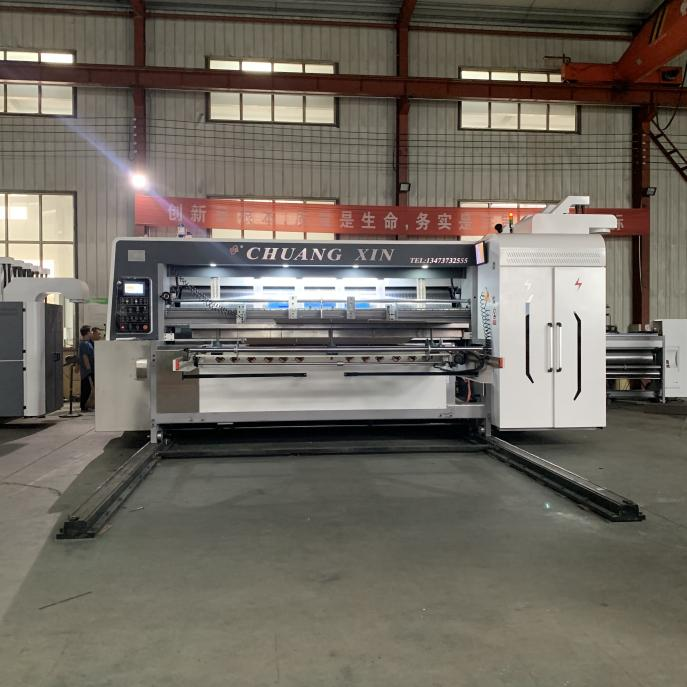

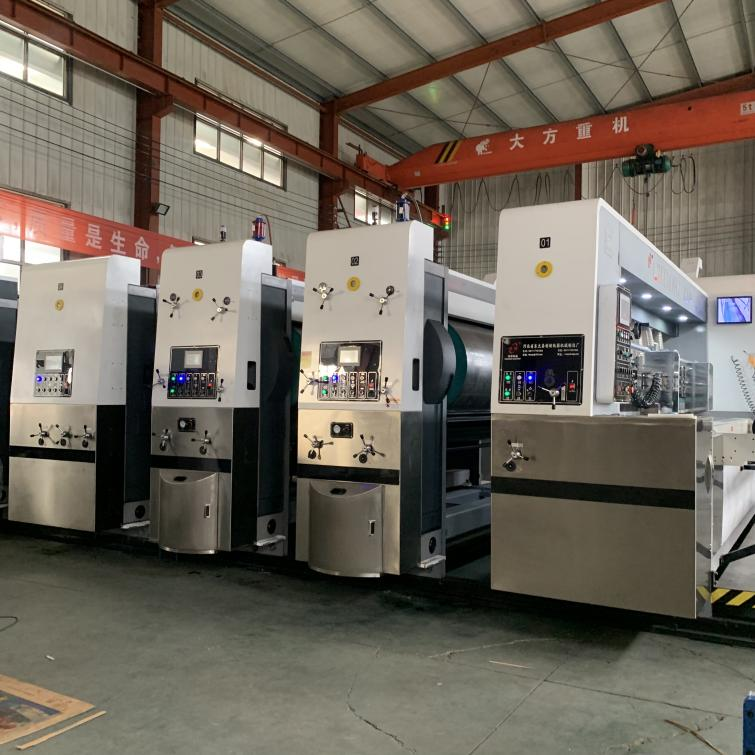

Detailed Introduction

Company Information

Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.

OUYE has a perfect Research and Development system, and owns a high level R&D team, leading capability of independent innovation, and complete producing, processing and manufacturing capability. We has Full computer gantry boring and milling machining center, CNC pentahedron boring and milling machine, 5 meter grinding machine etc.

Certification

certificate

Packaging Shipping

Package Shipping

FAQ

Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

Q: How to control quality?

A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.

Q: What's the delivery time?

A: Around 30~50days, however, based on order.

Q: What's payment terms, trade terms you accept?

A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.

Q: Does it easy to operate and what can i do if it doesn't work?

A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
