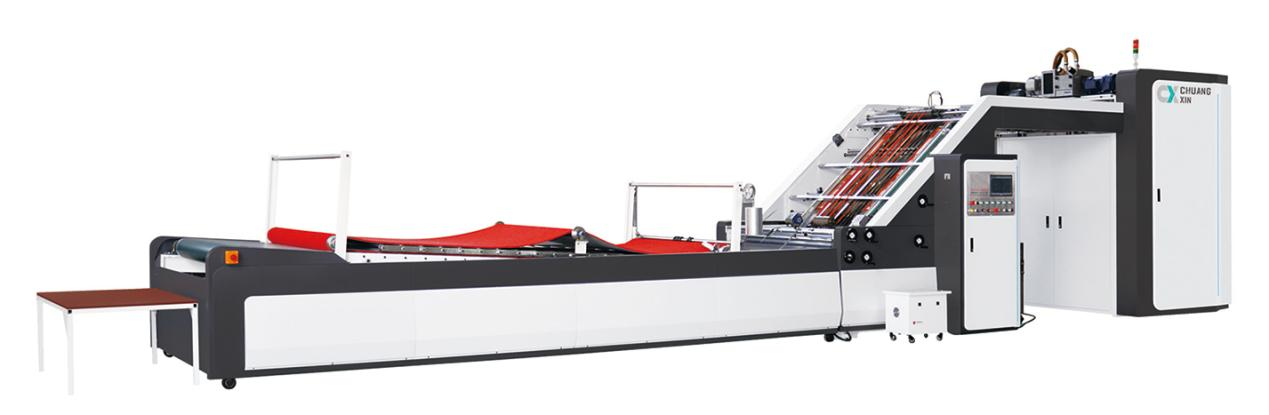

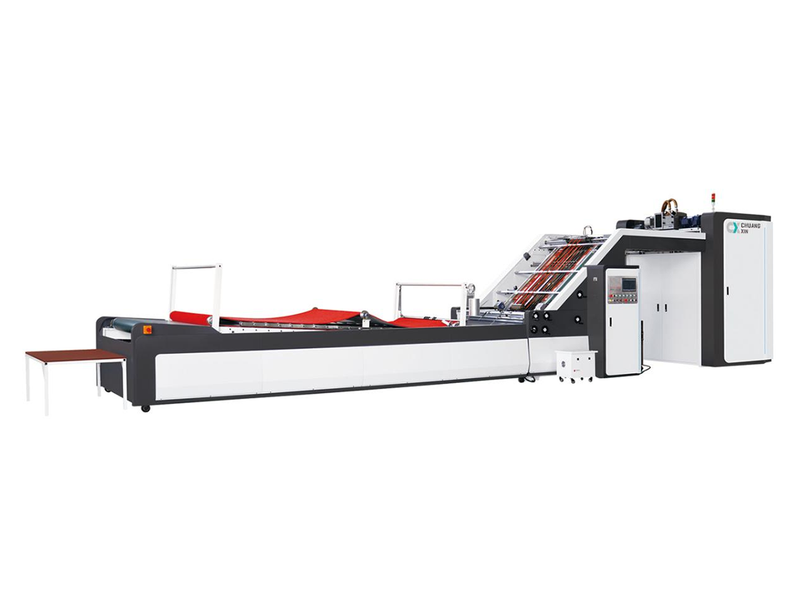

The fully automatic flute laminating machine supplied by OUYE is mainly used to laminate linerboards to the flutes of corrugated board or laminate one cardboard to another cardboard with adhesive. The suitable corrugated flute patterns include A, B, C, E and F flute. This automatic flute laminator is designed with auto suction feeding system for both top linerboards and bottom corrugated boards. It is really an ideal choice for producing high end packaging boxes.
The fast speed, computerized high –speed mount, up to 15000sheets per hour (within 700MM ofpaper)
| Main technical parameter | ||
Machine model | OY-1450G | OY-1700G |
Max paper size | 1450*1450mm | 1700*1450mm |
Min paper size | 400*380mm | 400*380mm |
Surface paper thickness | 200-800g/m² | 200-800g/m² |
Bottom paper thickness | 0.5-12mm | 0.5-12mm |
Machine speed | 176m/min | 176m/min |
Laminating precision | ±1mm/m | ±1mm/m |
Machine size | 14000*2500*2400mm (L * W * H) | 14000*2700*2400mm (L * W * H) |
Machine power | 25KW | 28KW |
Machine weight | 7.2T | 7.8T |

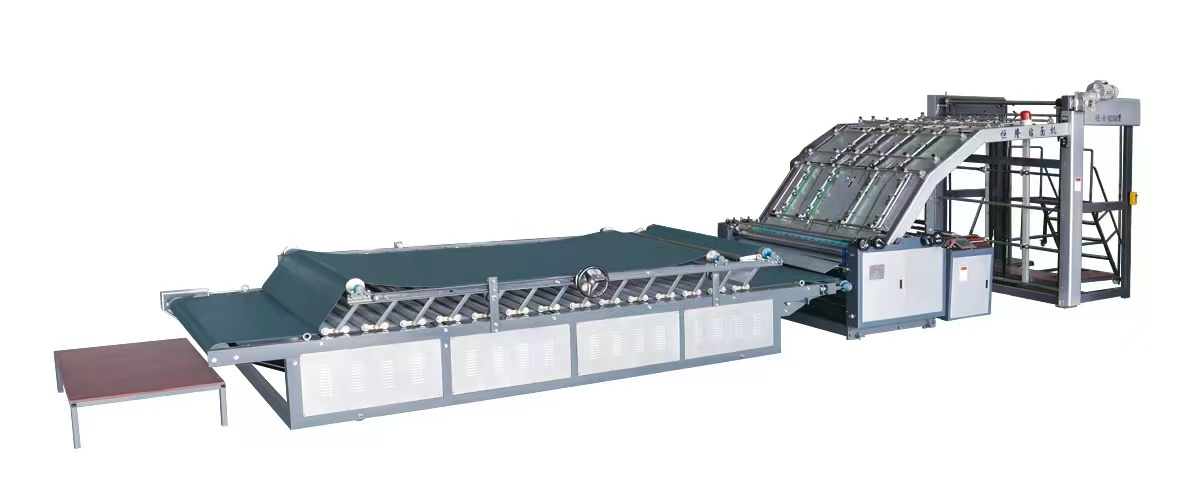

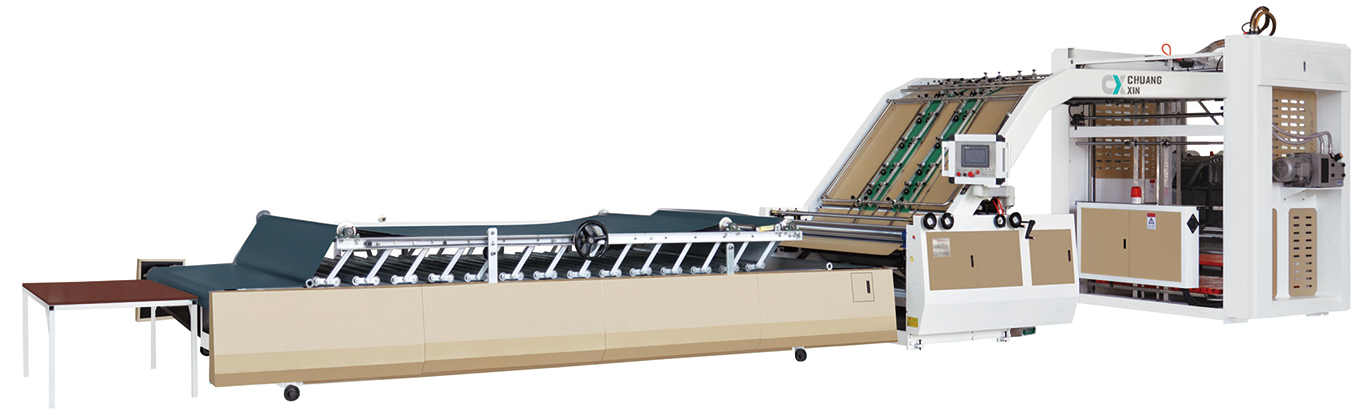

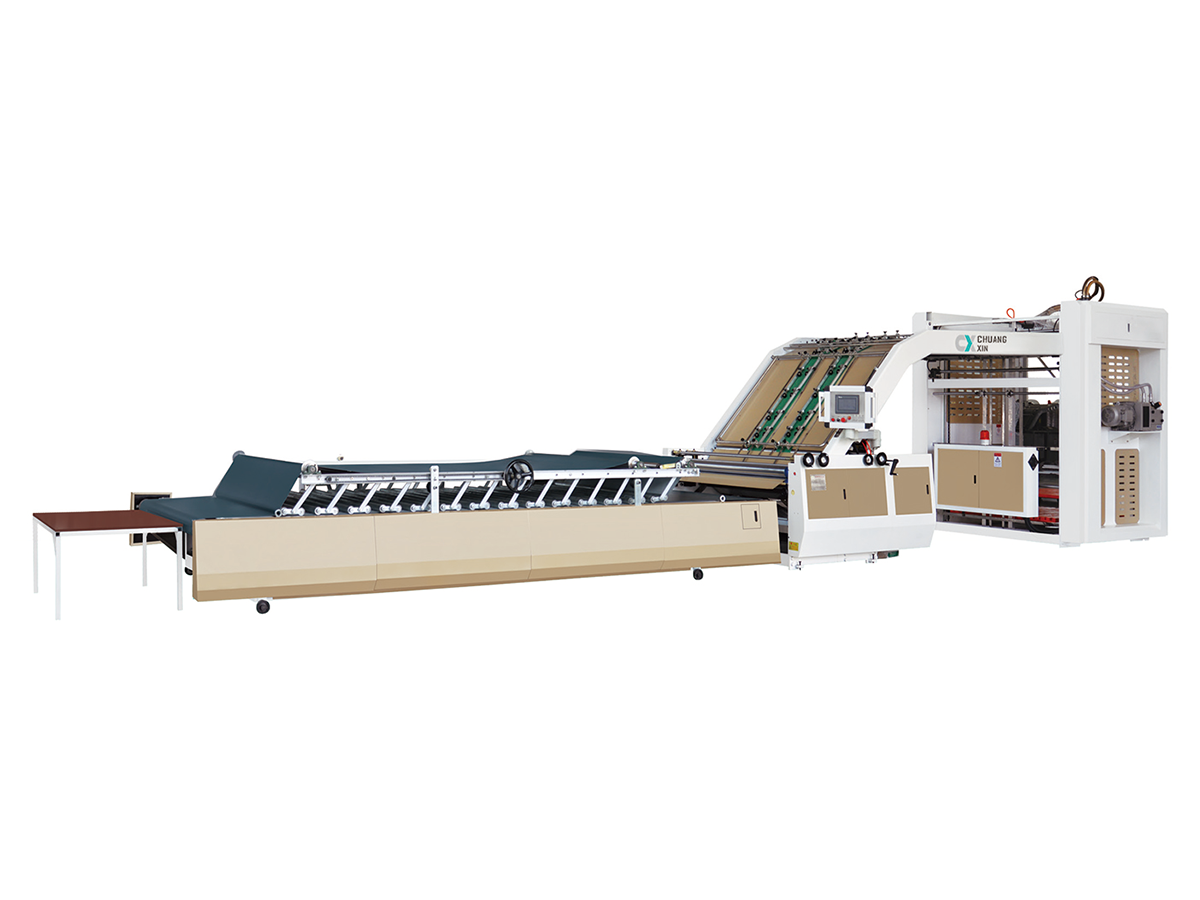

The vacuum suction-type feeding system can lead the paper accurately into the machine;cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient.
Model | OY-1300A-Ⅲ | OY-1450A-Ⅲ | OY-1550A-Ⅲ | OY-1650A-Ⅲ |
Max laminating size | 1300mm×1250mm | 1400mm×1250mm | 1500mm×1250mm | 1600mm×1250mm |
Min laminating size | 400mm×400mm | 400mm×400mm | 400mm×400mm | 400mm×400mm |
Economic speed | 0-120piece/min | 0-120piece/min | 0-120piece/min | 0-120piece/min |
Laminating precision | ± 1.5 | ± 1.5 | ± 1.5 | ± 1.5 |
Power | 10kw | 12kw | 12kw | 12kw |
Size | 13.5m×2m×2.4m | 13.5m×2.05m×2.4m | 13.5m×2.15m×2.4m | 13.5m×2.25m×2.4m |
Weight | About 4.8t | About 5t | About 5.2t | About 5.4t |
Bottom paper thickness | A/B/C/E/F ribs 2/3/4/5 layers 7/layer 12mm | |||
Paper thickness | 150-400g | |||

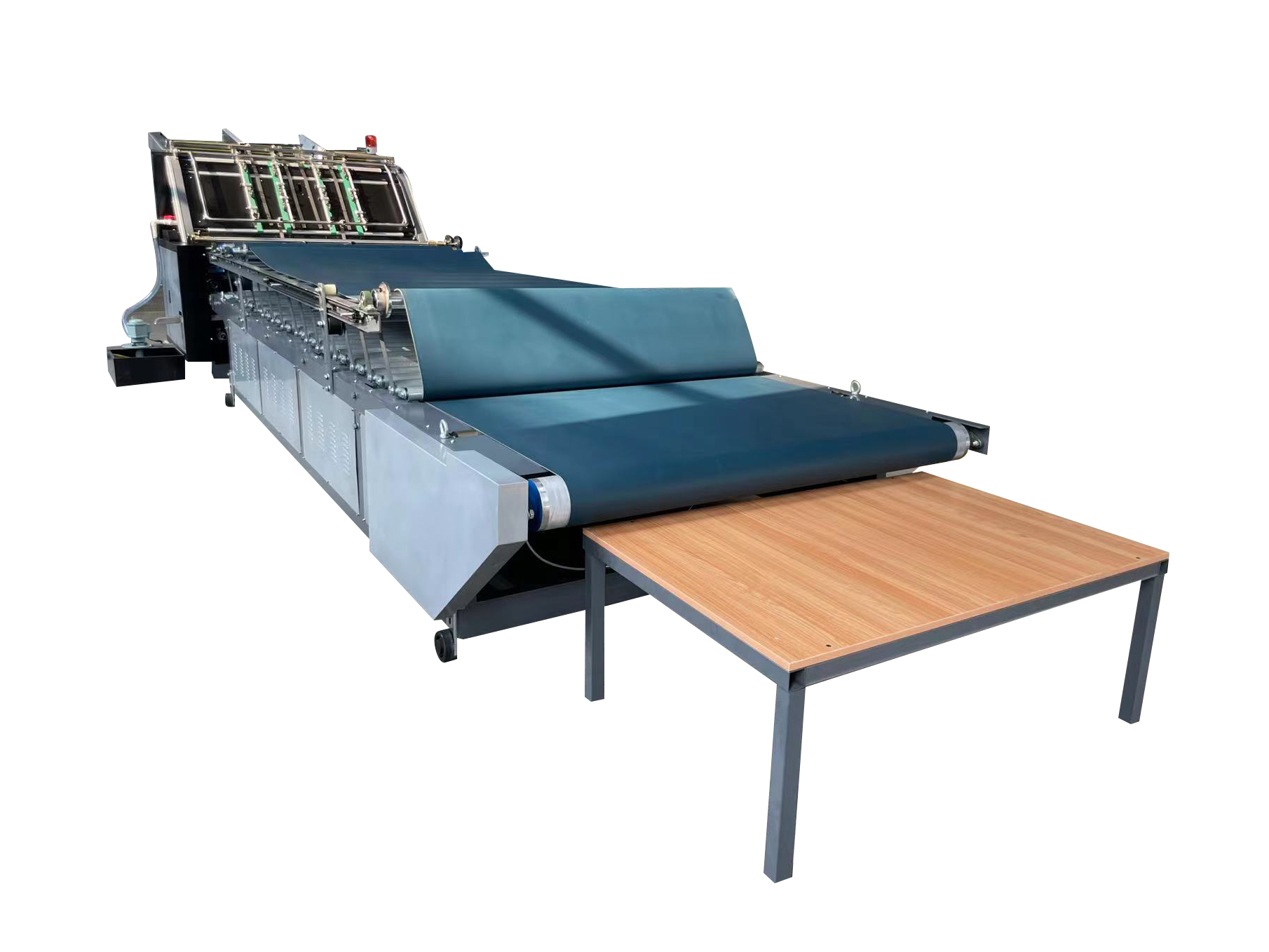

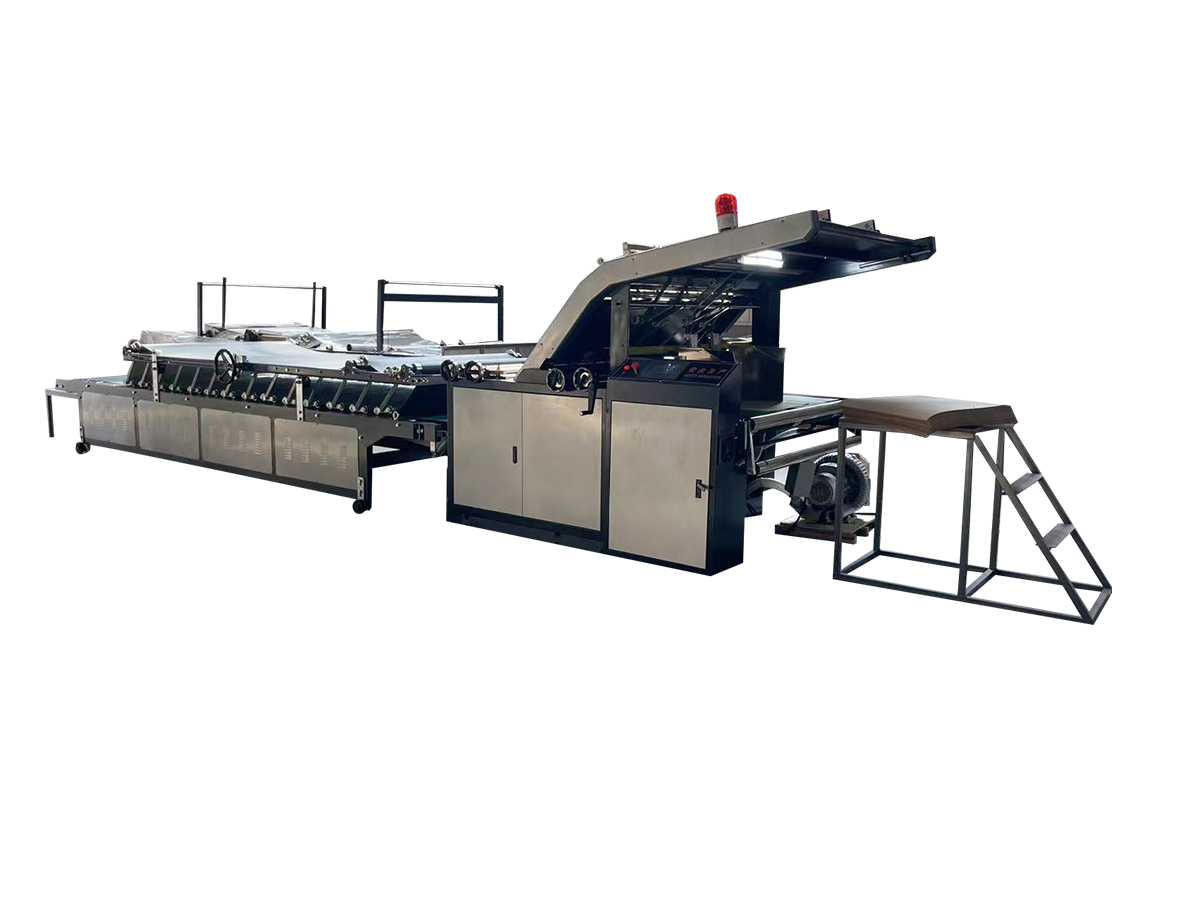

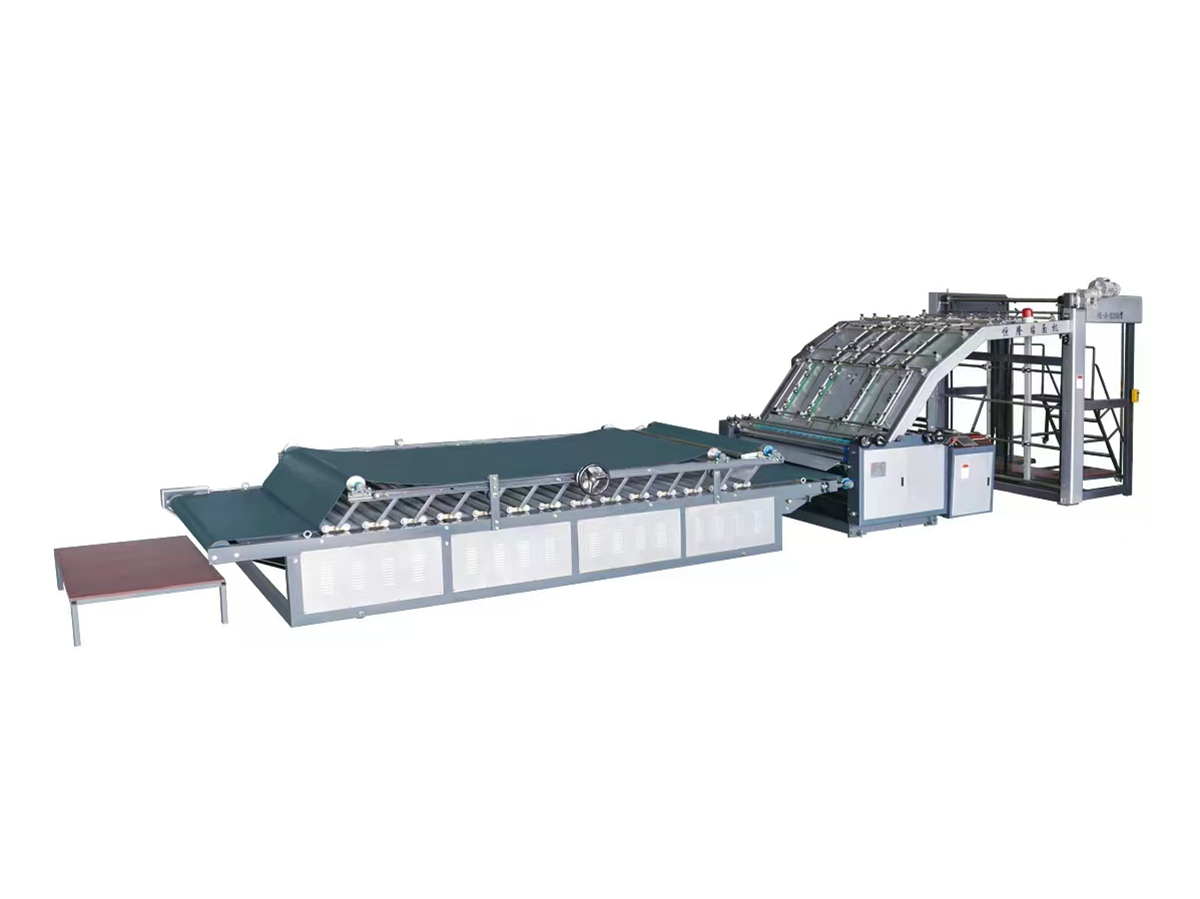

The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.
Product Feature
1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.
2. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.
3. New concept front gauge location, position high accuracy, bottom sheet never pull ahead.
4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.
5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.
6. Roller design scientifically, avoid glue fly out when the speed is high.
7. Pressure rollers adopt one side adjustment, convenient and fast.
8. Rocker controls wash roller's fluctuation, easy cleaning.
9. Counter designs scientifically, easy recording the amount you have been worked.
Product Parameter
Model | OY-1300A | OY-1450A | OY-1550A | OY-1650A |
Max size of laminating（mm） | 1300×1250 | 1400×1250 | 1500×1250 | 1600×1250 |
Min size of laminating（mm） | 360×360 | 360×360 | 360×360 | 360×360 |
Flute type | A C B E F | |||
Economic speed（piece/min） | 0-100 | 0-100 | 0-100 | 0-100 |
Laminating precision（mm） | ±1 | ±1 | ±1 | ±1 |
Power（KW） | 6 | 6.5 | 6.5 | 6.5 |
Size（m） | 8.8×1.95×1.7 | 8.8×2.05×1.7 | 8.8×2.15×1.7 | 8.8×2.25×1.7 |
Weight（T） | About 3 | About 3.5 | About 3.5 | About 3.5 |

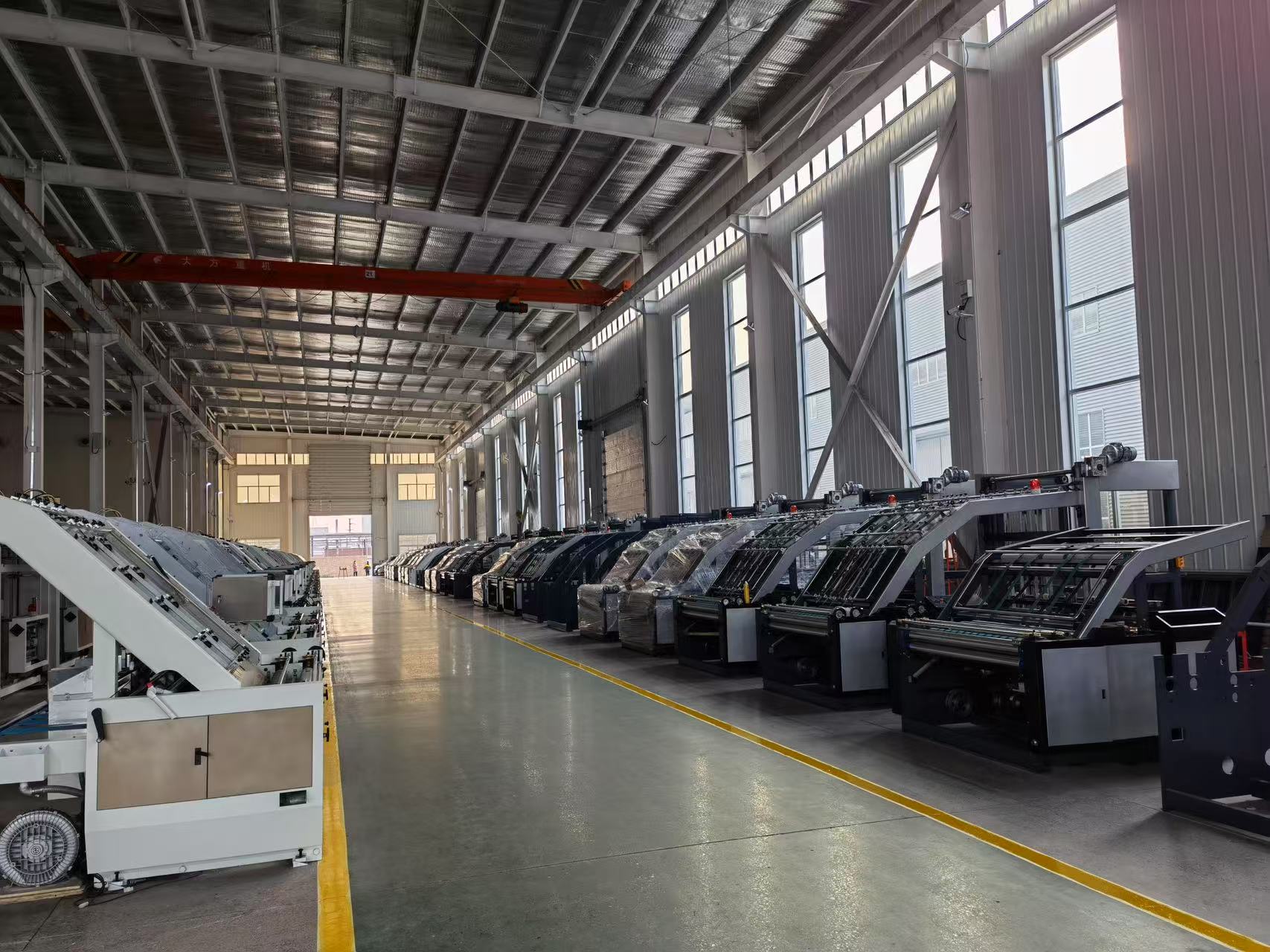

Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
