It is suitable for small and medium-sized cartons with three or five layers, and can be nailed to cartons with bottom and no cover. Seven layers need to be customized (it needs to be explained when the seven layers of cartons and cartons with bottom and no cover are customized).
Models and parameters | SDJ-2500 | SDJ-3000 | SDJ-3500 |

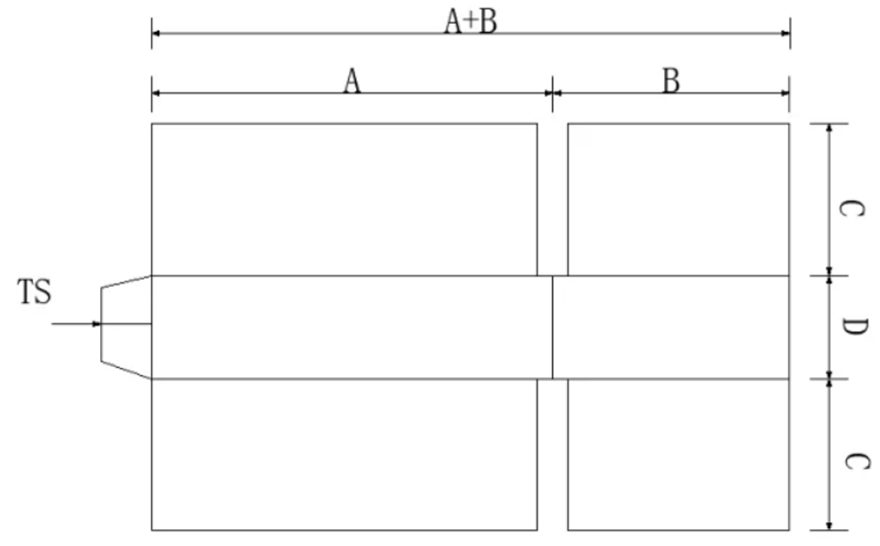

Maximum paperboard size (A+B)*2(mm) | 4000 | 4800 | 6000 |
Minimum paperboard size (A+B)*2(mm) | 1060 | 1060 | 1060 |
Maximum carton length A (mm) | 1850 | 2350 | 2850 |
Minimum carton length A(mm) | 350 | 350 | 350 |
Maximum carton width B (mm) | 1000 | 1200 | 1500 |
Minimum carton width B (mm) | 180 | 180 | 180 |
Maximum paperboard hight (C+D+C) (mm) | 2500 | 2500 | 2500 |
Minimumpaperboard hight (C+D+C) (mm) | 400 | 400 | 400 |
Maximum shake cover size C(mm) | 560 | 560 | 560 |
Minimum rock cover size C(mm) | 50 | 50 | 50 |
Maximum height D(mm) | 2000 | 2000 | 2000 |
The minimum height D(mm) | 150 | 150 | 150 |
Maximum width of the tongue (mm) TS | 45 | 45 | 45 |
Nail distance (mm) | 30-120 | 30-120 | 30-120 |
Nails NO. | 1-99 | 1-99 | 1-99 |
Nailing speed nail/min | 500 | 500 | 500 |
Nail wire type | 17-18 | 17-18 | 17-18 |
Machine weight T | 2.5 | 3 | 3.5 |
1. Imported four servo control system.
2. A dual purpose, can nail single, double, irregular carton.
3. The dimensions are all electrically controlled.
4. Can nail: single nail, double nail, reinforcing nail a complete.
5. The paper feeding section counts automatically, and the finished products are sent out for binding.
6. Suitable for small and medium-sized cartons, binding fast and labor saving.
7. Adjust stitching distance, use computer to set automatic stitching distance.
8. It is suitable for small and medium-sized cartons with three or five layers, and can be nailed to cartons with bottom and no cover. Seven layers need to be customized (it needs to be explained when the seven layers of cartons and cartons with bottom and no cover are customized).
9. Nail distance (small - large) 30mm-120mm can be adjusted arbitrarily.
10. Mechanical speed: 500 nails/min.
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
