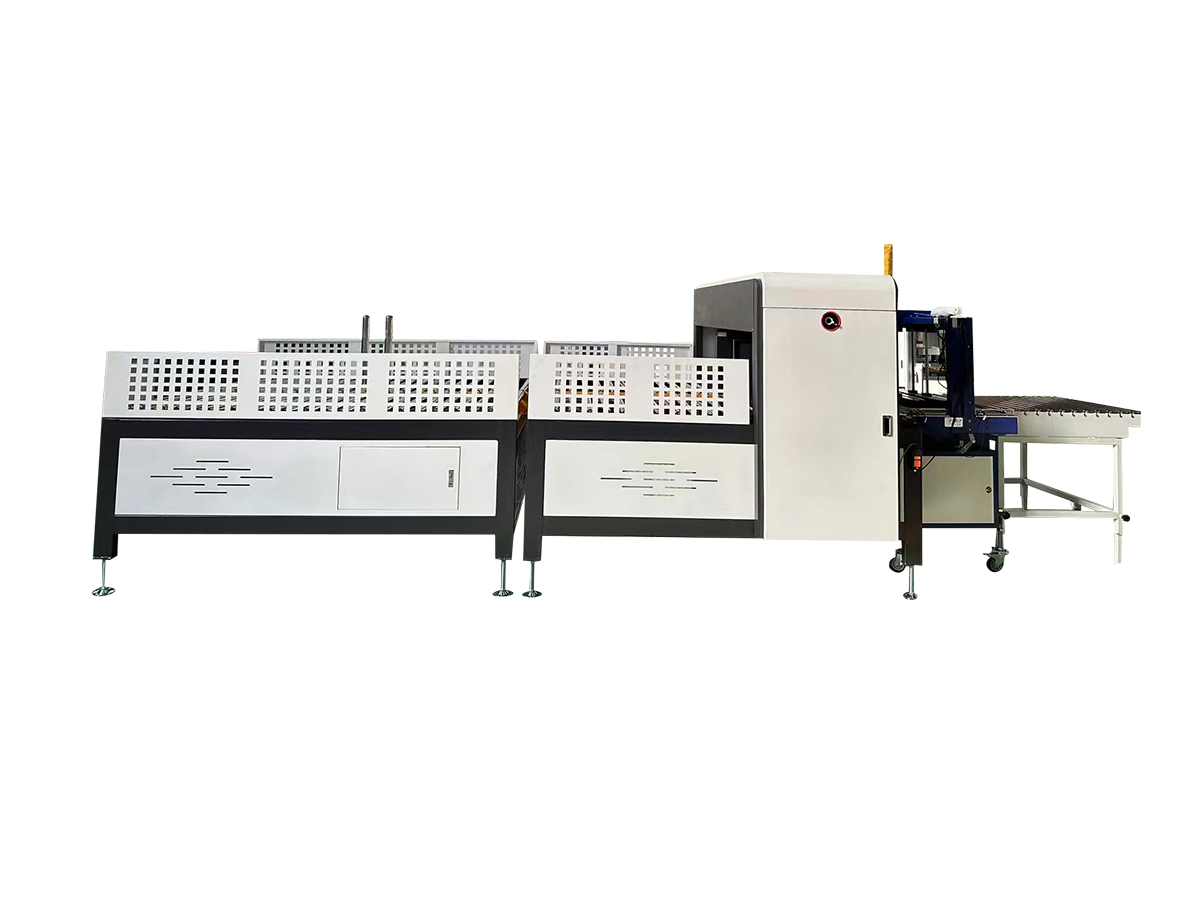

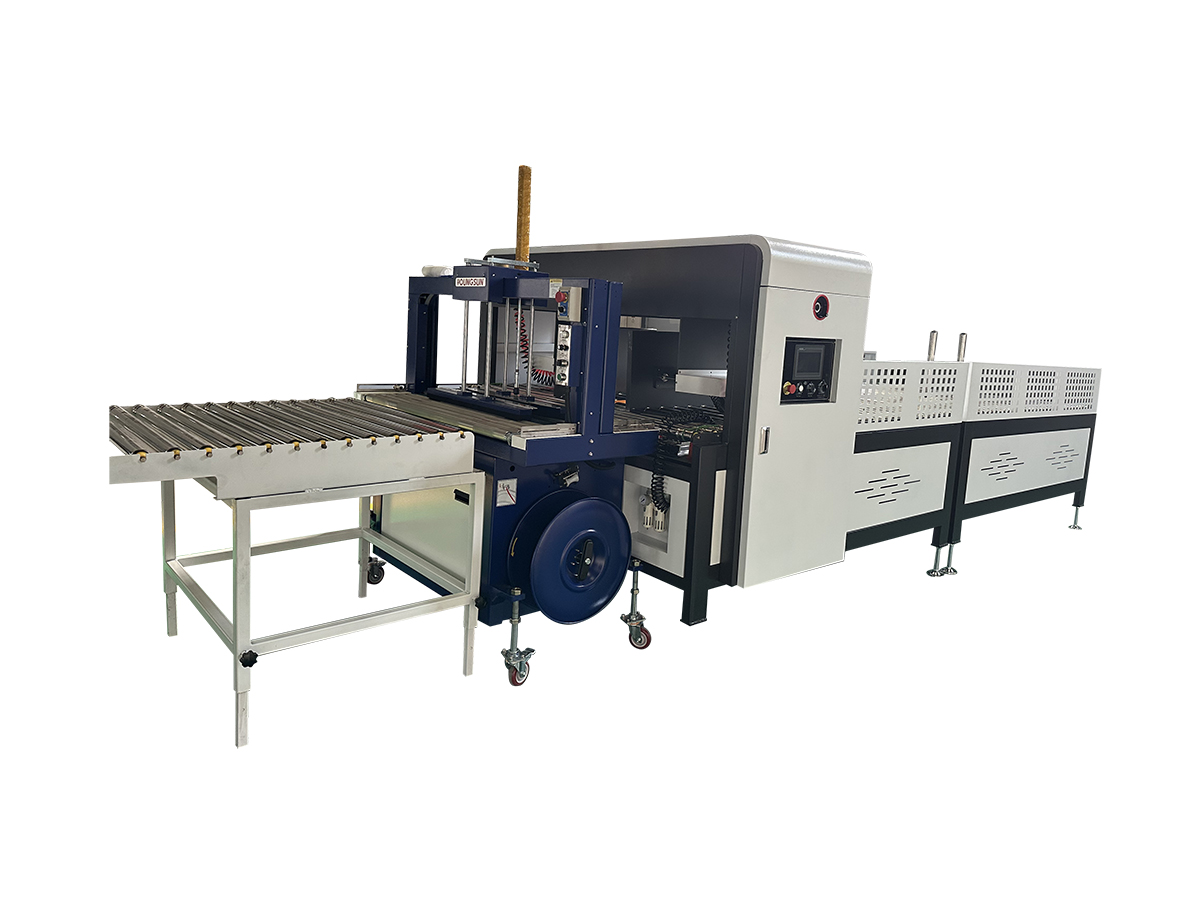

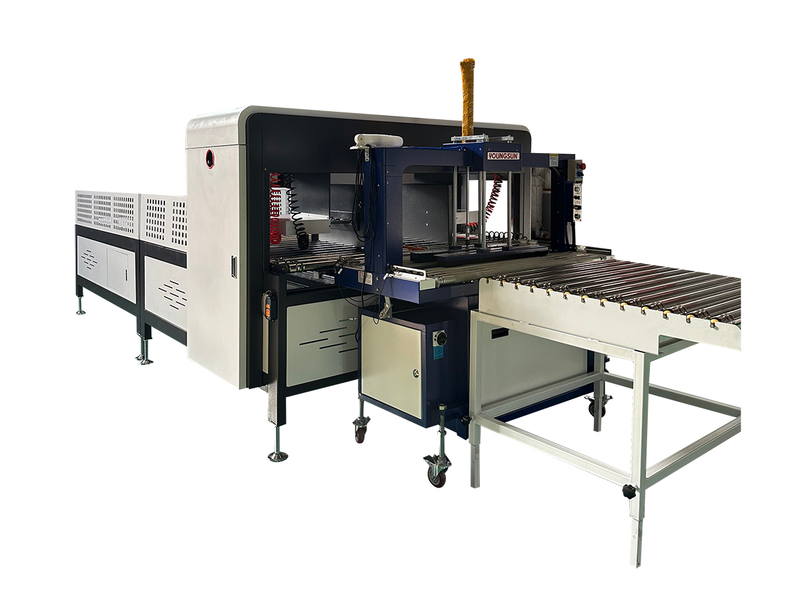

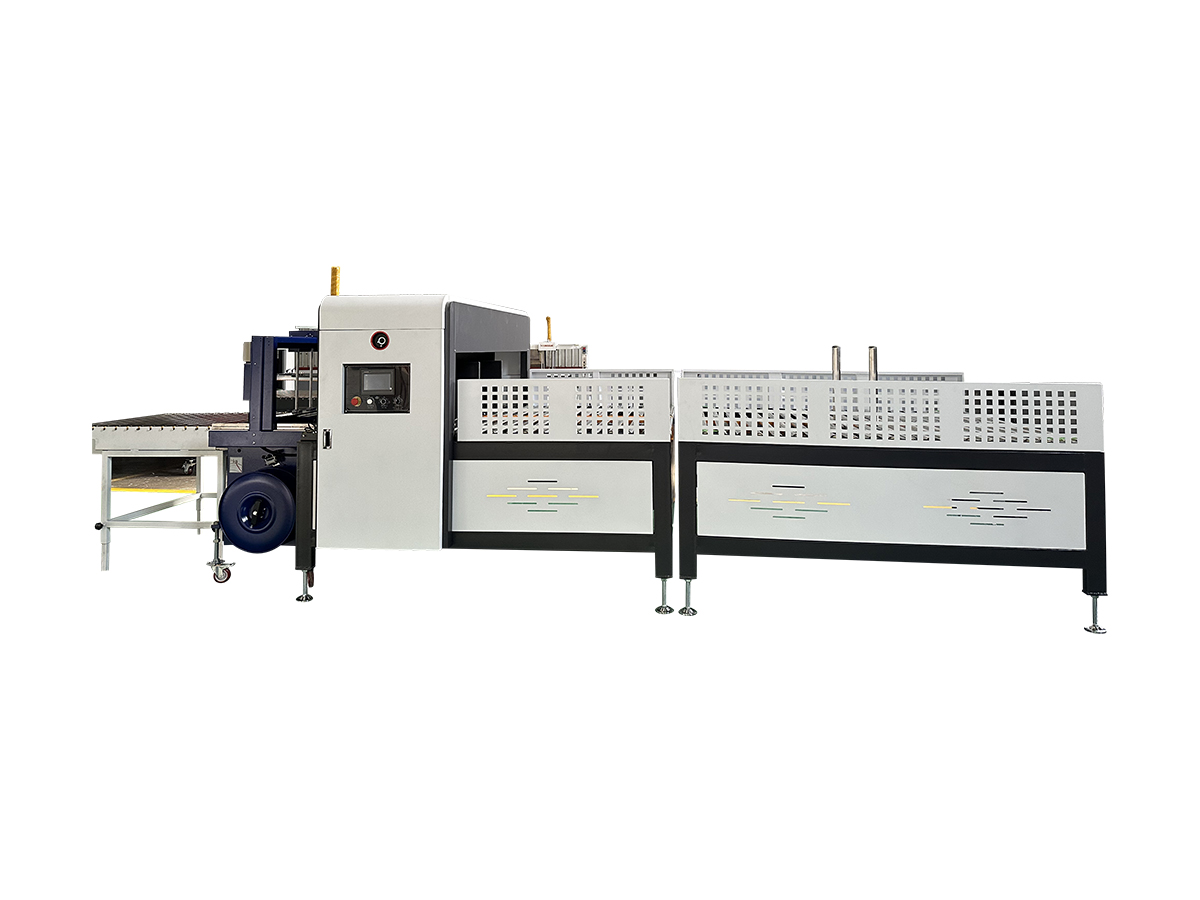

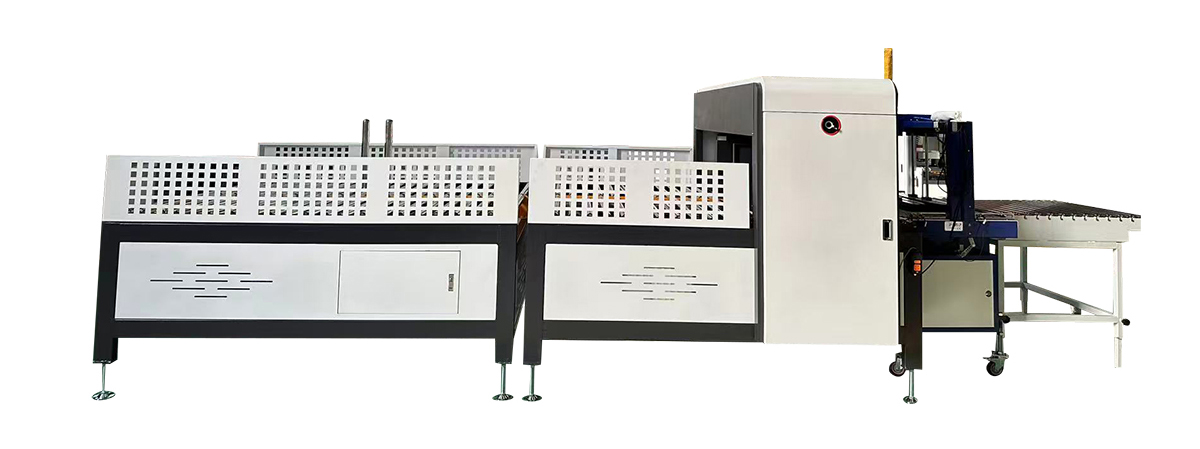

Machine/output after automatic strapping automatic order box machine, the machine by turning, taken together, pressurized banding.
Automatic strapping machine is mainly used in automatic sticky box.
Machine/output after automatic strapping automatic order box machine, the machine by turning, taken together, pressurized banding.Using PP strapping, strong, do not rebound, paper edge damage.The whole process automatically, without human intervention, can save a lot of artificial cost.Such as color, paper products factory packaging equipment for increasing the income of enterprises and reducing Consumption.
Model | VT-5-9 | |
Size | 1580mm*600mm*1900mm | |
Packing dimensions | 1650mm*700mm*2000mm | |
Worktable height | 850mm | |
Load-bearing capacity | 80kg | |
Net Weight | 365kg | |
| Band width | 5mm ,6mm ,7mm , 8mm ,9mm |
Tape thickness | 0.5-0.6mm | |
Tape disc | Ring paper core diameter 200 mm-210 mm | |
Outer diameter of bell ring 400-450mm | ||
Ring width 175-190mm | ||
Speed | > =55 Pack / min | |
Strapping specifications | Min:W80mmXH60mm Maximum size is the in-frame specification | |
Adhesion method | Thermal melting method | |
Bonding mode | Bottom bonding, bonding surface 90%, bonding position deviation 2mm | |
Strapping tightness | 0-45kg | |
Power | 600W ,10A | |
Power Supply | 1P ,220V ,50Hz | |
Gas pressure | 0.4-0.6MPa | |
Rated power | 0.7kw | |
Rated Current | 4A | |
Rated Voltage | 220v 1P/N/PE 50Hz | |
Rated Pressure | 6kg/cm | |
Working noise | ≤75dB(A) | |
Adjustable options | Frame specification,band width | |
Max strapping goods size | L(according to machine )*W1000*H500mm | |
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
