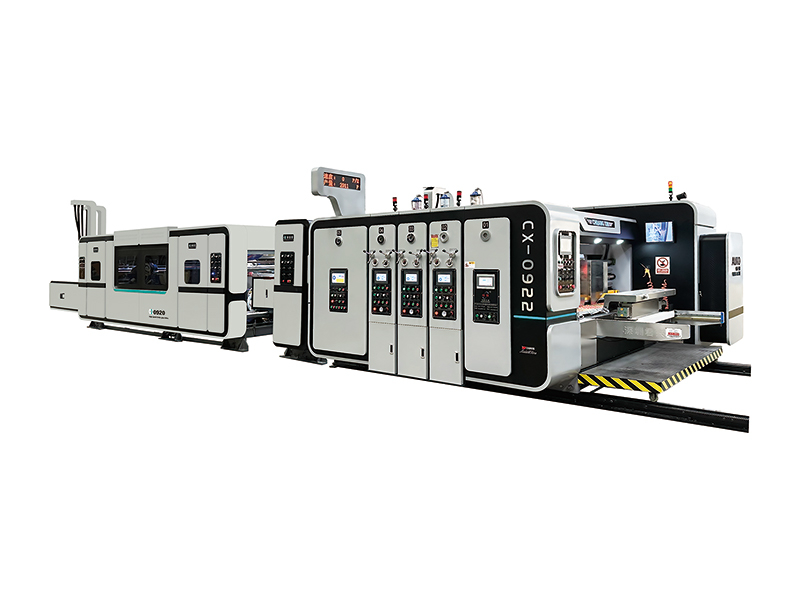

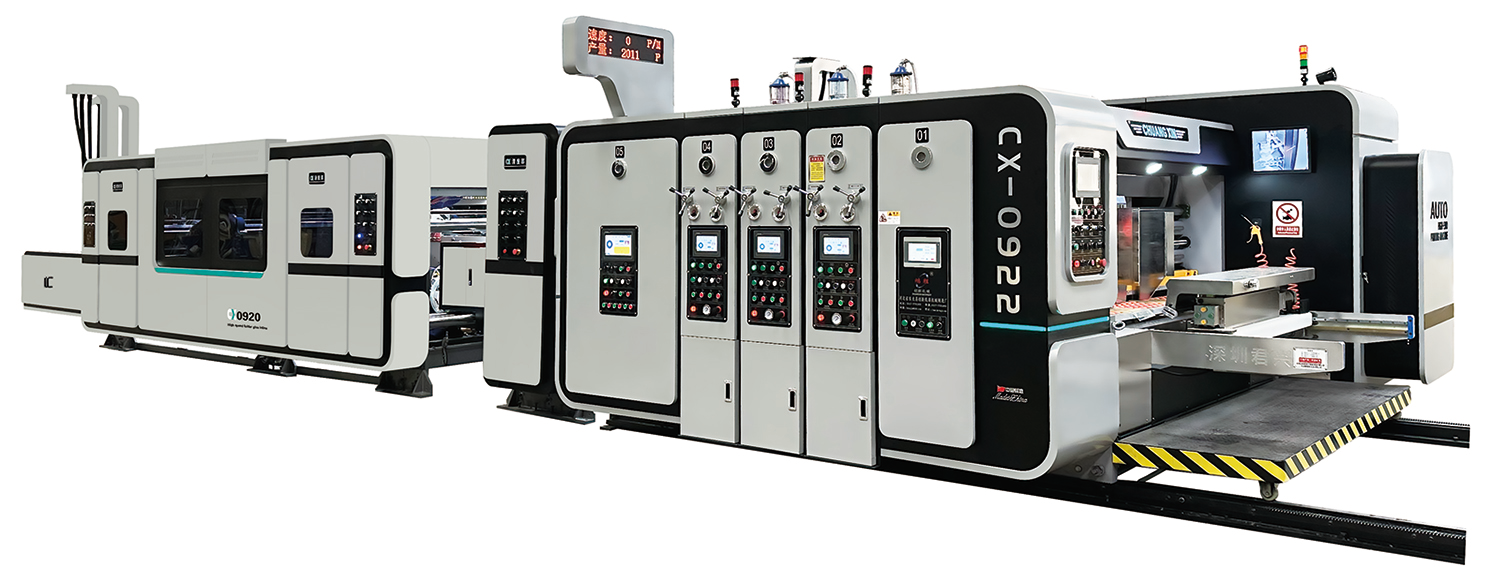

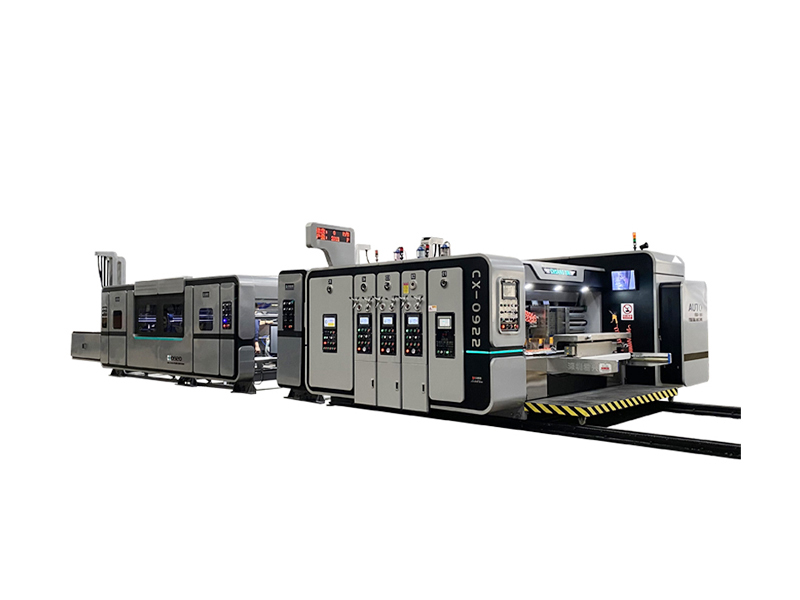

With the increasingly serious aging of the domestic population, the serious shortage of labor, our company has a high-speed intelligent carton production line, the machine set paper feeding printing, slotting, die cutting, sticky box, packaging in one, the whole machine design is beautiful and generous, simple operation, short change time, digital input, full computer control, one key change single time and labor saving! Fully automatic makes work easier!
The average bonding speed of 20000 / hour, fast, greatly improve the production efficiency.
The printing department and the paste box can achieve differential linkage, the total width of the cardboard can be input, the adhesive belt can automatically track, and the minimum distance between the cardboard and the cardboard is 5-10cm, so as to reduce the speed of the belt, improve the speed of the paste box, and reduce unnecessary belt wear.
Model |
920 | 1224 |
1428 |
Max.machinespeed(sheets/min) |
300 |
250 |
200 |
Max.feedingsize(LXWmm) |
900×2000 |
1200×2400 |
1400×2800 |
Min.feedingheight(mm) |
300 |
350 |
380 |
Min.foldsize(mm) |
240×110 |
250×110 |
|
Suitableforboardsheet |
E-AB |
||

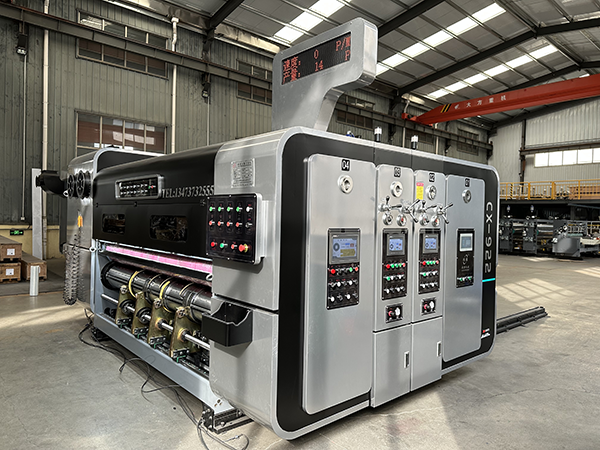

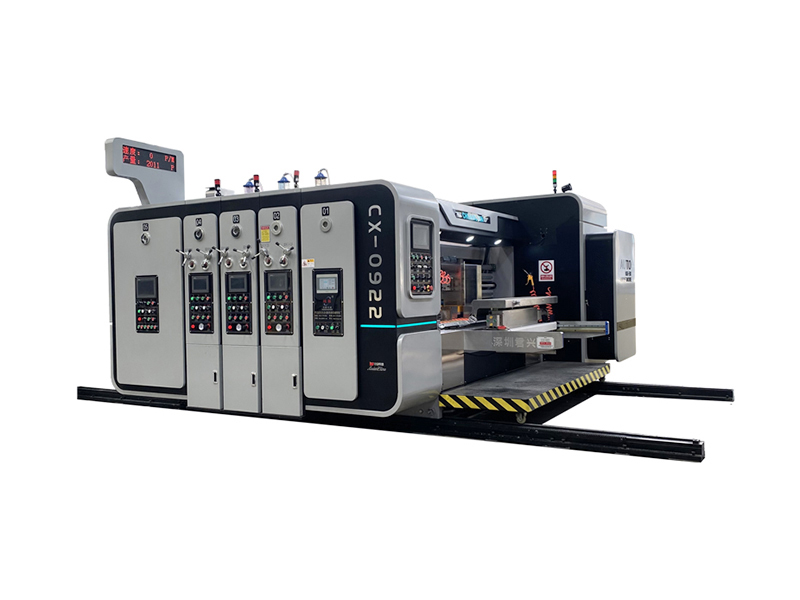

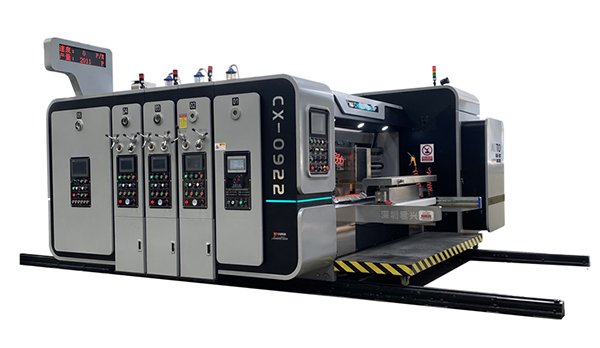

Printing Department（custom）
Control system: The electrical control system with international brand programmable controller (PLC), industrial human-machine interface and inverter as the core; To achieve rapid replacement of production orders, intelligent full range of program control functions, making machine production and adjustment more humane, higher safety, product yield greatly improved
The printing department computer control, automatic plate, try to print a cardboard can print out the finished product.
The printing press and the electrical linkage of the sticky box department, to achieve 3 minutes to replace the order, save labor.

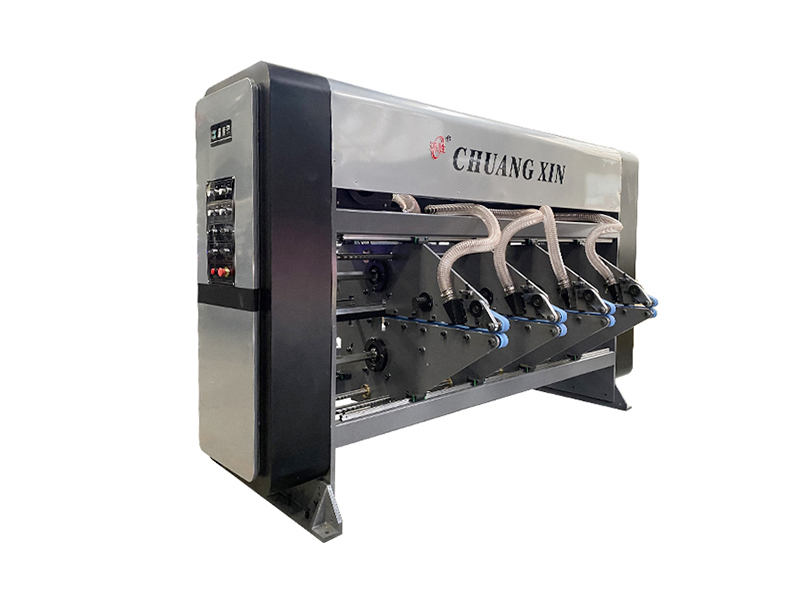

Die cutting part (electric adjusting tool)
In addition to the standard configuration of the main function of die cutting, in addition to the configuration of four sets of steel die, do ordinary industrial box slotting, cutting Angle, dividing the use of electric four-tool synchronous adjustment (box height synchronous adjustment), electric transverse movement. One click change order, can store 999 orders, convenient and fast.

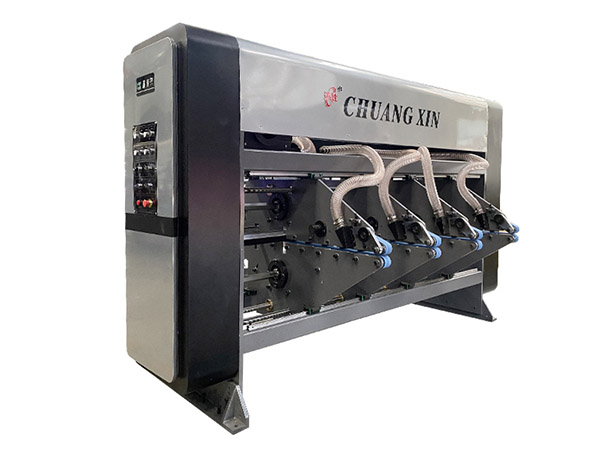

Waste Removal Department
Independent waste removal unit, effectively remove waste, make the carton more beautiful, save labor.
It is equipped with horizontal output waste removal belt to export all the waste.

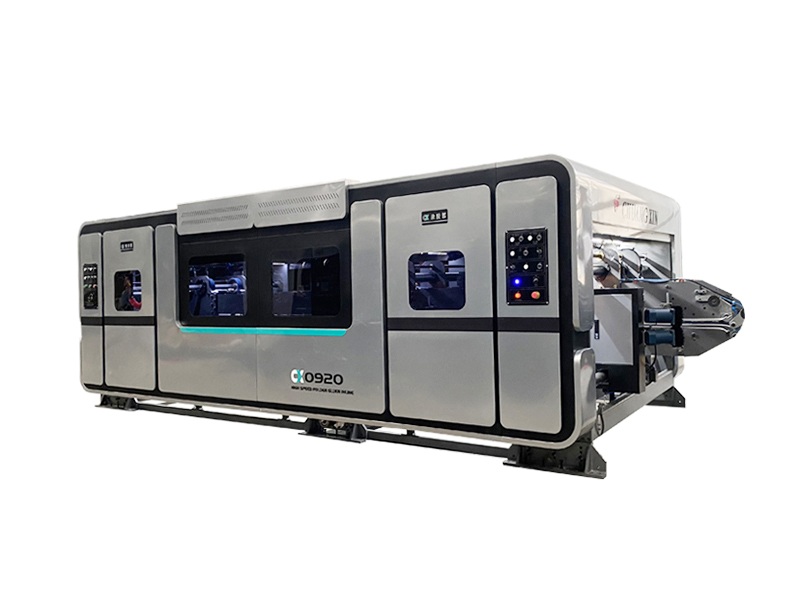

Folding part
Folding part: belt separate adjustment control, scissors size control standard. The link printing department can track the automatic acceleration or deceleration of the ink printing press, and the adjustment is convenient and practical. The folding cardboard adopts belt and nylon wheel adjustment, convenient adjustment of folding cardboard Angle.

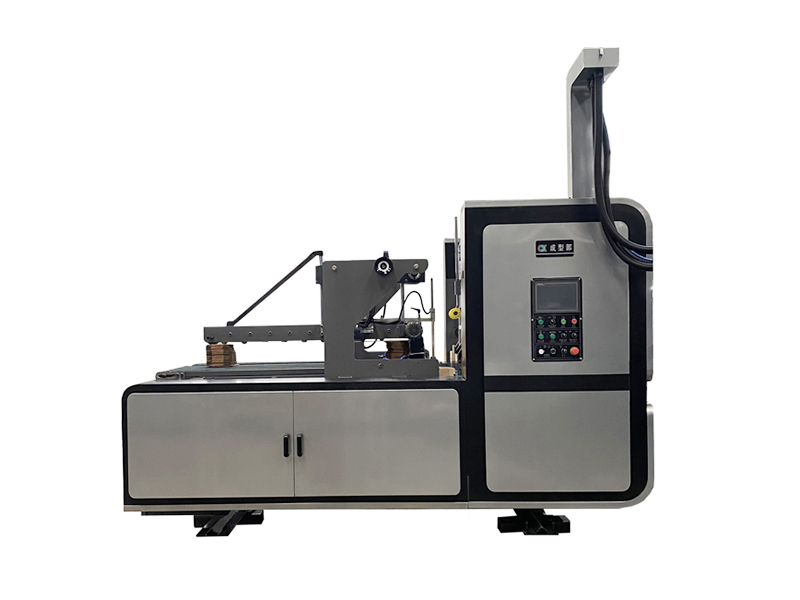

Automatically tidy
Stacking cardboard adopts mechanical insertion method to stack cardboard height. A special color recognition sensor controls the count, enabling an accurate counter (sensor) to count the number of cartons per packet, in any setting on the touch screen.

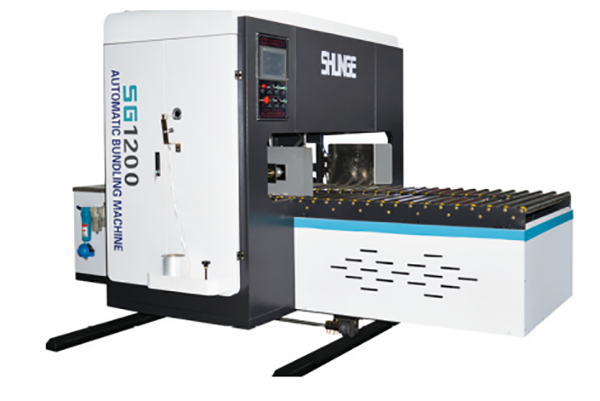

Auto Packaging Machine
The raised assembly structure of the strapping machine features a bottom moving track and a safety design. The entire machine adopts a platform-integrated structure. The internal binding part, centering part and other mechanisms are all controlled by a computer. The size and speed adjustment Settings can all be completed on the touch screen, and it is controlled by a Delta controller from Taiwan.
