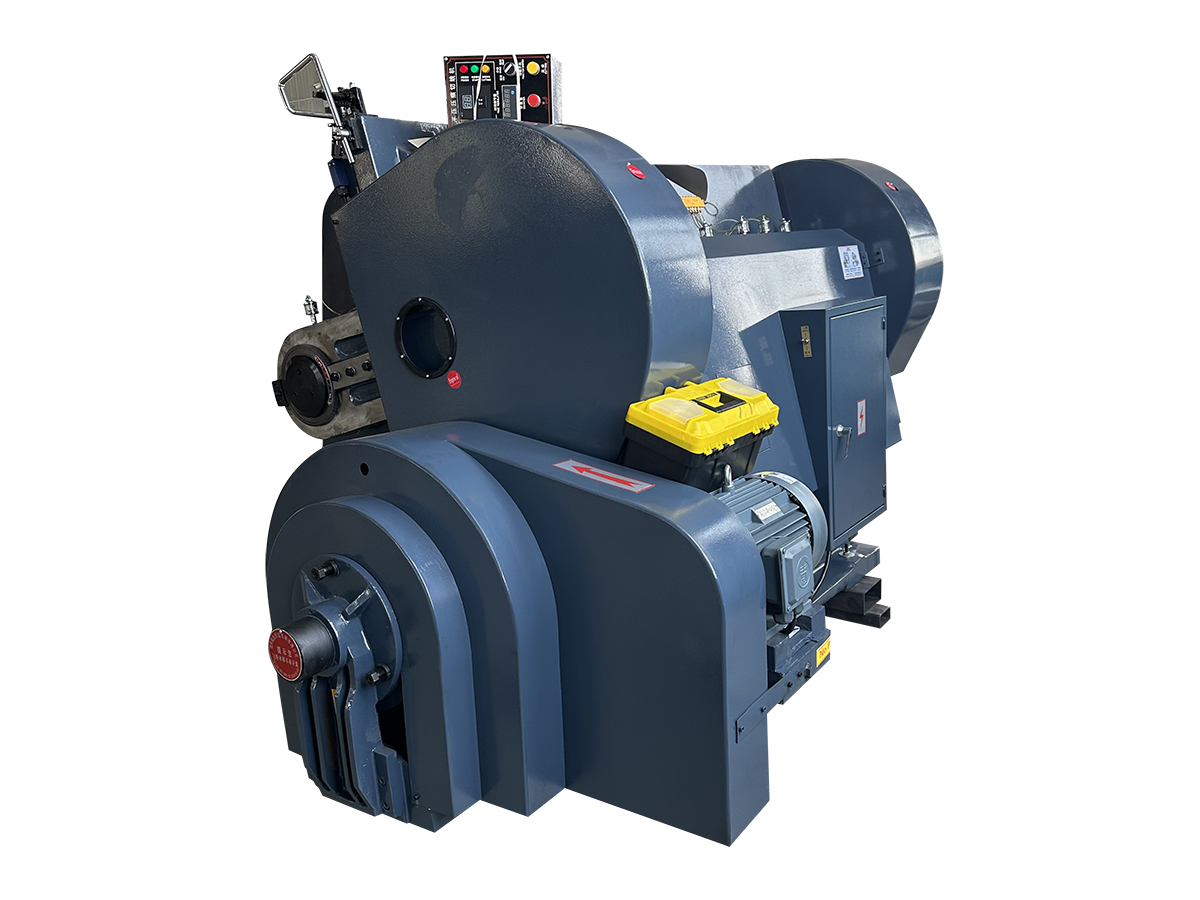

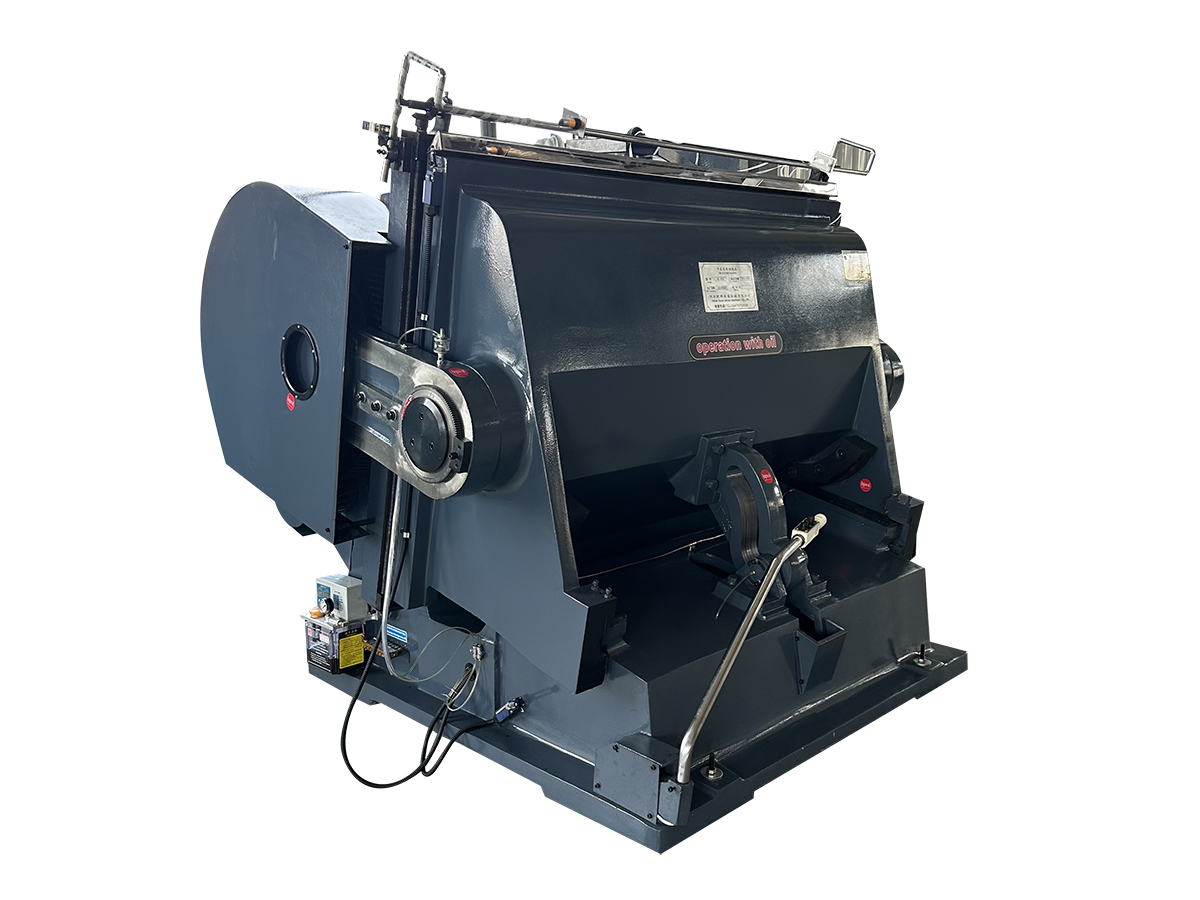

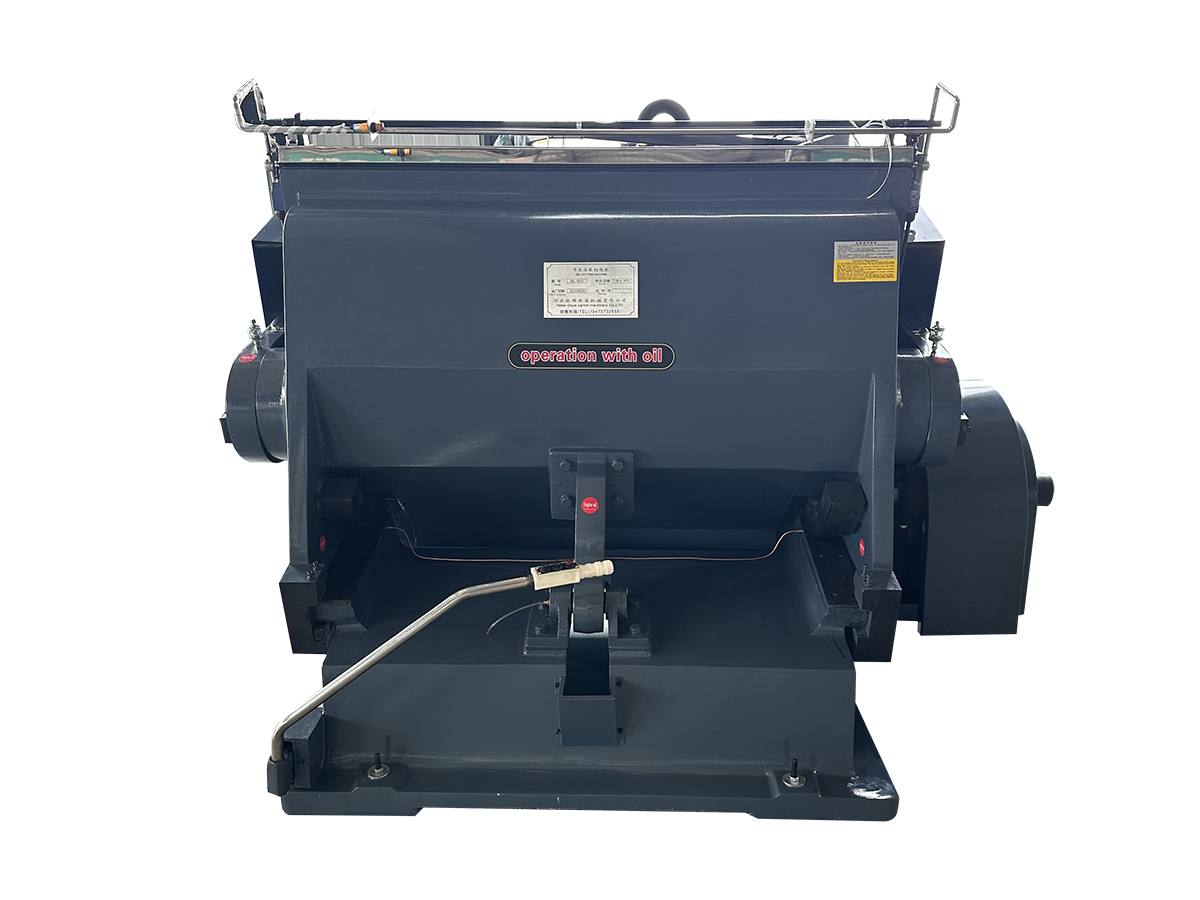

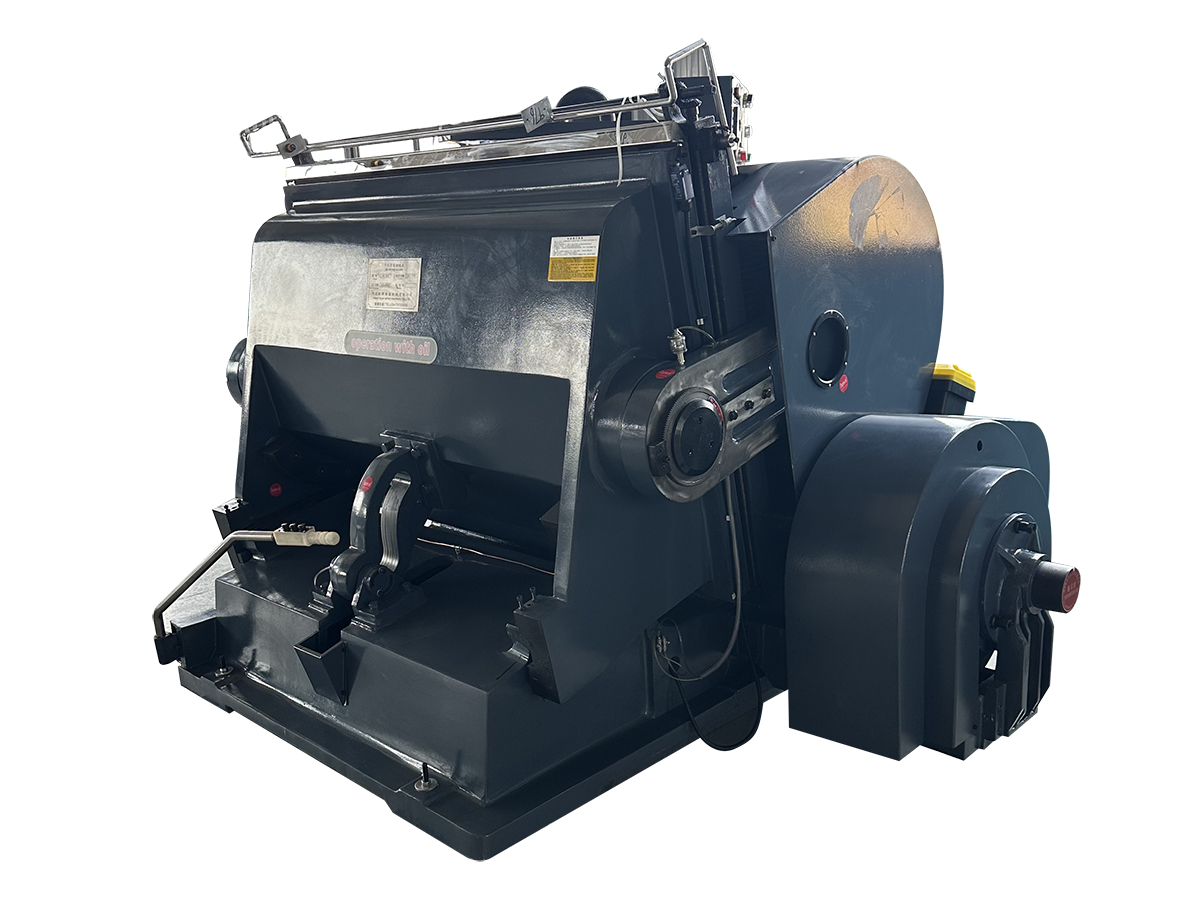

Creasing die cutting Machine is one kind of basic die-cutting machine for sampling and customizing products. Changing the die cutting mould easily, operating easily, and the perfect protection system are the main reason which can win the market.
1. ML series creasing die cutting Machine is one kind of basic die-cutting machine for sampling and customizing products. Changing the die cutting mould easily, operating easily, and the perfect protection system are the main reason which can win the market. It is also the perfect model for creasing, suitable for many kinds of different-weight cardboard.
2. It is widely used in post-press industry, this platen converts paper, carton board, heavy solid board, semi-rigid plastic, corrugated into different products with high efficiency, such as food/beverage/ personal care/ home&office/ industrial package and so on.
3. High strength due to whole body casting with high quality material.
4. Smooth running, high pressure, and low noise with a 2-step helical gear mechanism.
5. Single plate electromagnetic clutch is sensitive and reliable.
6. Operational altitude is reasonably arranged, moving-bed opens to its maximum.
7. Electrical system is designed in conformity with IEC standards.
8. Single, continuous operation and opening delay are available, the delay range is adjustable.
9. Reliable safety system.
10. Adjustable chases with a moveable bar.
11. Concentrated automatic lubricating system.
12. CE certificates
Model | Max.Rule Area (mm) | Working speed(times/min) | Max.Rule Length | Molor(kw) | Weight(kg) | Overall Dimensions(LxWxH)(mm) |
ML 750 | 750x520 | 28±2 | <15m | 2.2 | 2000 | 1260x1350x1280 |
ML 930 | 930x670 | 23±2 | < 25m | 4.0 | 3000 | 1800x1600x1600 |
ML 1100 | 1100x800 | 20±2 | < 32m | 5.5 | 4500 | 1900x1800x1700 |
ML 1200 | 1200x830 | 20±2 | < 35m | 5.5 | 4800 | 1900x2000x1700 |
ML 1300 | 1300x920 | 18±2 | < 40m | 5/7.5 | 6000 | 2000x2400x1800 |
ML 1400 | 1400x1000 | 18±2 | < 45m | 5/7.5 | 6500 | 2000x2450x1900 |
ML 1500 | 1500x1050 | 18±2 | < 45m | 5/7.5 | 7000 | 2000x2500x1930 |
ML 1600 | 1600x1250 | 16±2 | < 50m | 11 | 1100 | 2170x2560x2130 |
ML 1800 | 1800x1300 | 16±2(stroes/min) | < 62m | 15 | 13500 | 2240x2800x2230 |
ML 2000 | 2000x1400 | 16±2 | < 80m | 15 | 14500 | 2280x2900x2230 |
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
