Model of Hot Sale Rs4 Slotter Machine 2 Colour For Carton Box From Carton Machine | unit | |
Max. Paperboard size | mm | 610*1850 |
Min. Paperboard size | mm | 170*420 |
Max. printing size | mm | 610*1700 |
Min space of slotting | mm | Obverse knives 80*80*80*80 |
Design speed | pcs /min | 150 |
Economic speed | pcs /min | 80-130 |
Standard thickness of printing plate (with version lining) | mm | 6 |
Express-Box-Corrugated-Printing-Slotting-Die-Cutting-Carton-Printer-Die-Cutter-Cardboard-Machinery
Paper feeding unit: (1 unit)
(two-row wheel feed)
1. The paper feeding table is connected by polyurethane paper feeding wheel, the active belt wheel is connected by cone sleeve, and the driven belt wheel is connected by expansion sleeve.
2. Negative pressure suction flat front feeding way, using 5.5 kw high-pressure fan, to ensure efficient and accurate feeding of various types of corrugated, warp paperboard.
Printing unit: (2 color unit) The color can be customized.
1. The printing press roll gap dial is manually adjusted, the adjustment range is 0-10mm
2. Mesh Point hexagonal honeycomb type, uniform ink.
3. 212 mm outside diameter.

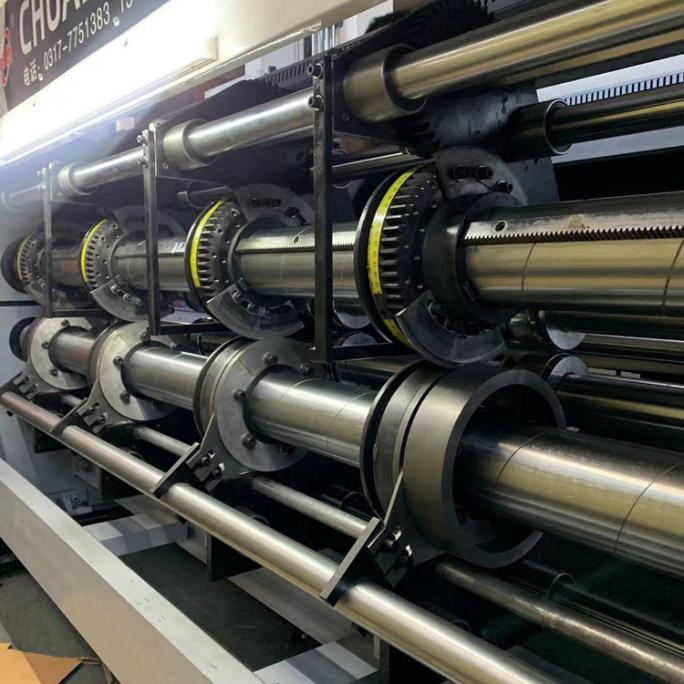

Slotting Unit: (1 unit)
1. The slotting knife is made of high quality alloy steel, the heat treatment grinds the tooth shape slotting knife and the trimming knife, the knife edge is sharp, the precision is high.
2. press line wheel, slotting knife seat horizontal movement adopts manual control, synchronous adjustment.
3. Slotted phase adjustment mechanism, planetary gear structure.
4. Slotting phase can be adjusted by electric control 360 degree adjustment operation and stop.
5. The height of the box is adjusted by electric motor.
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
