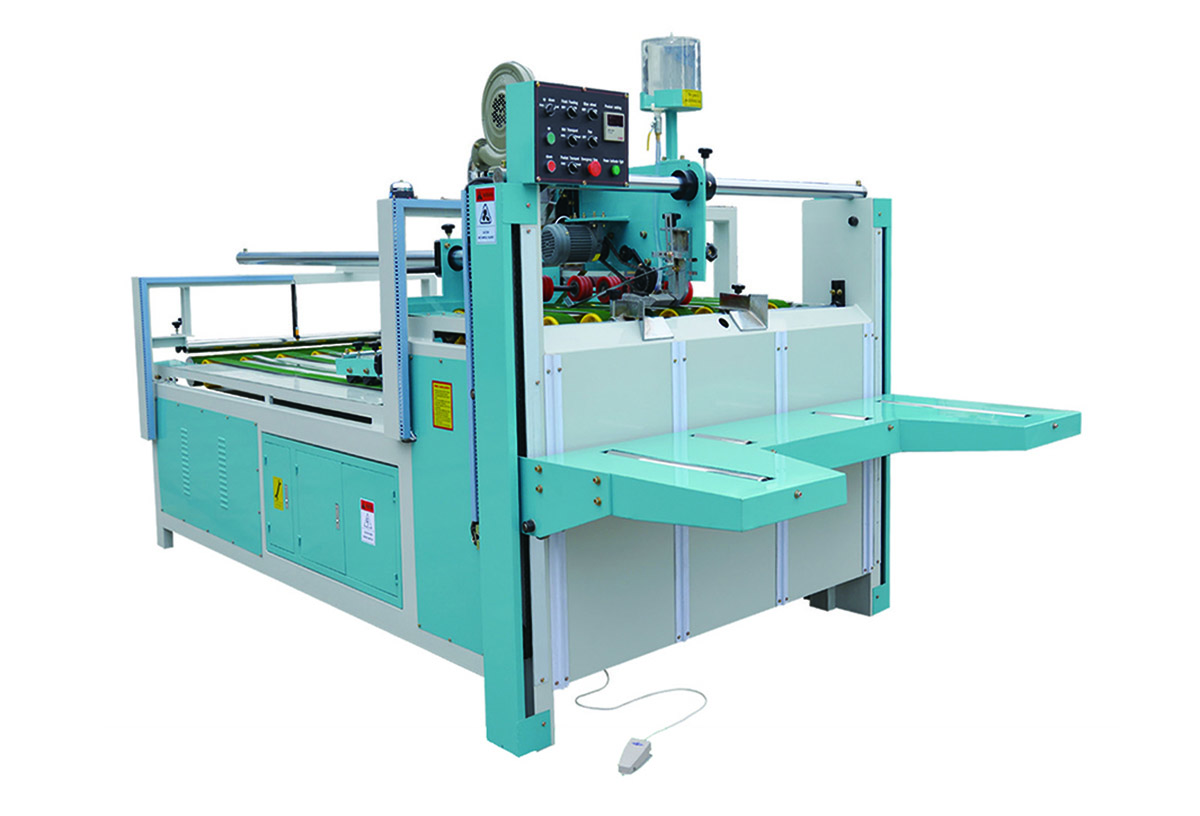

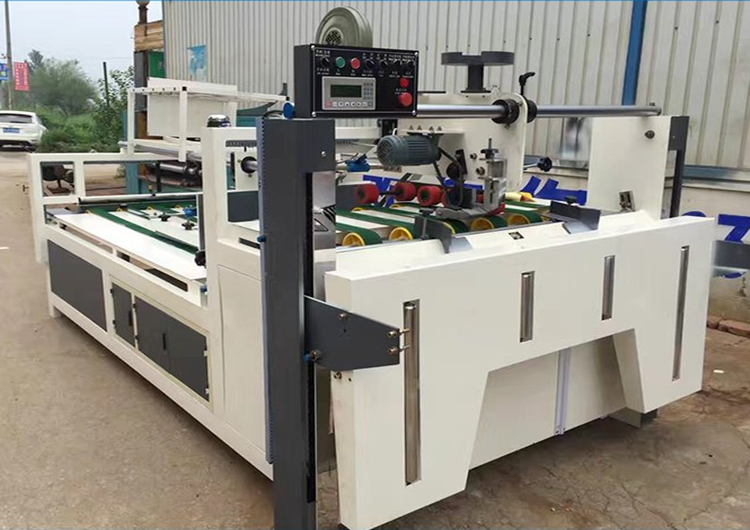

Semi-auto gluing compose of main form and two small conveyor. Main form including:Form,up and down working table. Forepart feeding section,forepart proofread section,middle transportation section.

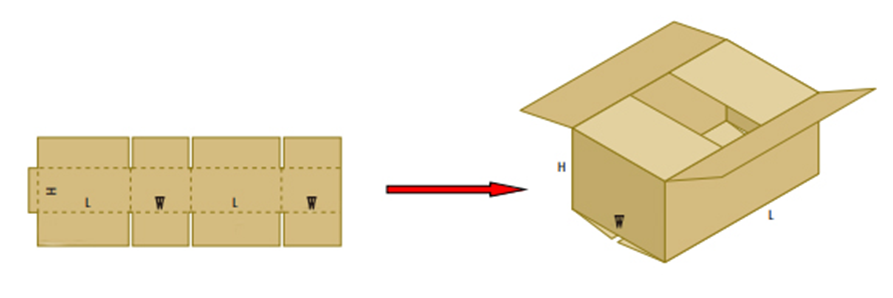

Parameters | |
Max.size(L+W)×2 | 2800mm |
Min.size(L+W)×2 | 340mm |
Max.size(W+H) | 1515mm |
Min.size(W+H) | 260mm |
Feeder paper height | 1000mm |
Power | 4kw |
Machine length | 5300mm |
Machine weight | 2150kg |
Machine speed | 60cartons/min |
This corrugated box folder gluer is used to bond the folded corrugated board with adhesive. It comes with high speed and low cost that is 10 times lower than carton stapling.
Automatic counting function is used in the stacking process. Finished products (1-99 sheets) can be transported to the end of conveyor according to set quantity so as to be convenient for bundling.
The semi-auto carton folder gluer is provided with a draught fan for air drying application, thus accelerating carton bonding and reducing defective products.
Only two operators are needed to complete the easy process from gluing of semi finished products to placing in order of finished products. Since that, cost for salary can be reduced.
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
