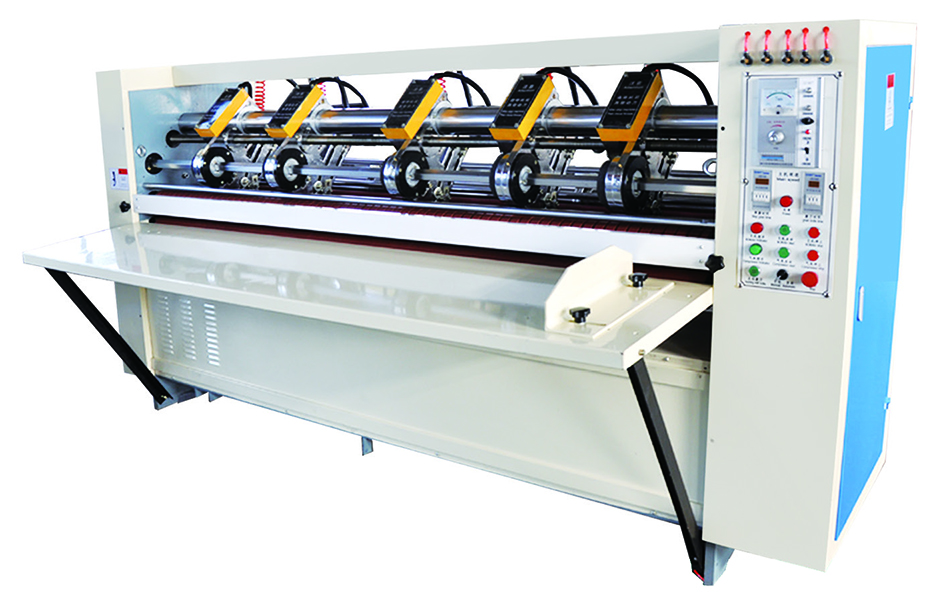

The BFY series slitter scorer is an ancillary machine for carton making. It is mainly used for slitting and scoring corrugated cardboard. Employing thin blade technology, this slitting and scoring machine has overcome the phenomena of burr and flattening caused by using traditional thick blade. Processed by this paperboard converting equipment, the corrugated board is burr-free and has sound flute, smooth edge and great straightness.
Our standard slitter scorer is provided with four slitter knives and six scorer heads. In addition, we also offer five slitter knives and eight scorer heads for choice. You can impressed that this thin blade slitter scorer is equipped with a re-sharpening device which implements automatic sharpening to the slitter knife and supports manual adjustment, thus ensuring easy operation.
Specification | 2000mm | 2200mm | 2500mm | 2800mm |
Max. slitting width | 1800mm | 2000mm | 2300mm | 2600mm |
Min. slitting width | 180mm | 180mm | 180mm | 180mm |
Scoring gap adjustment | 0-12mm | 0-12mm | 0-12mm | 0-12mm |
Min. scoring width | 50mm | 50mm | 50mm | 50mm |
Motor power | 4kw | 4kw | 4kw | 4kw |
Motor speed | 0-1200rpm | 0-1200rpm | 0-1200rpm | 0-1200rpm |
The maximum machine speed reaches 120m/min and the effective width ranges from 2000mm to 3000mm.
The slitter knife is made of high quality alloy steel, hence providing outstanding sharpness and long service life.
The scoring part adopts 5-point scoring technology and the scoring gap is synchronously adjusted, providing beautiful and accurate scoring. Consequently, cardboard can be easily bent.
The re-sharpening device is available in automatic and manual pneumatic grinding options. Grinding can be done during slitting, thus maintaining sharpness while improving working efficiency.

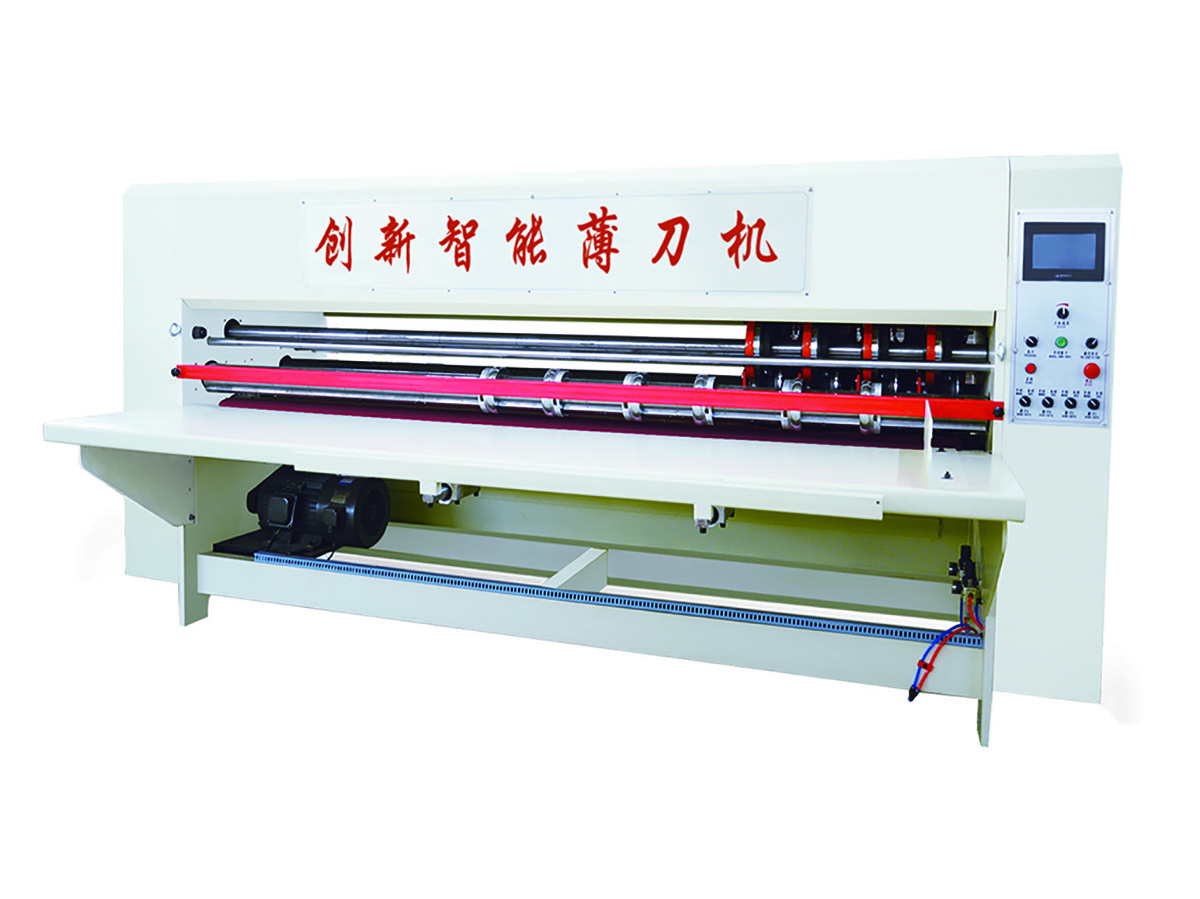

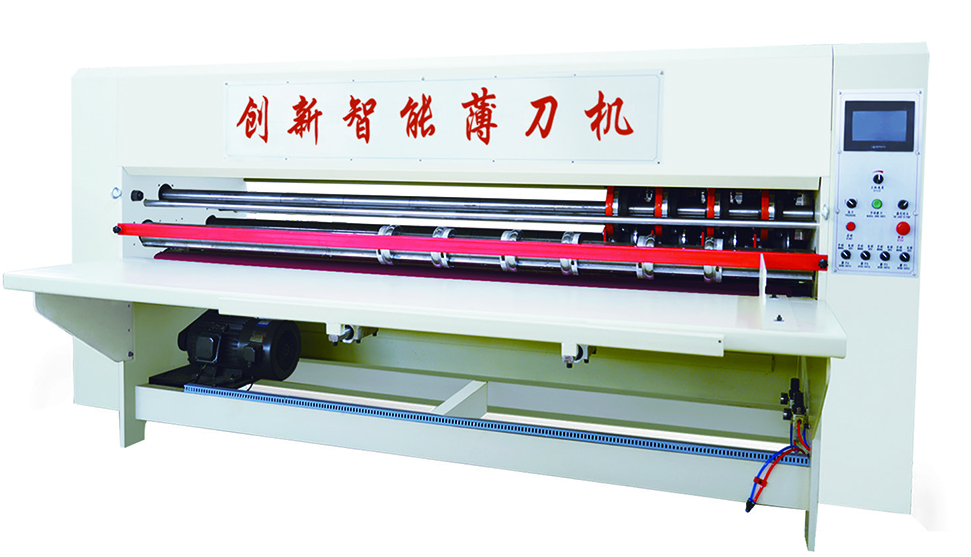

Fully intelligent thin knife paper feeding and creasing machine
This machine is on the basis of the original models to be improved, and the machine in the process of operation, more simple and quick, repair rate is low, the efficiency is greatly increased.
This machine is on the basis of the original models to be improved, and the machine in the process of operation, more simple and quick, repair rate is low, the efficiency is greatly increased.
1. Cutting blade USES the thin blade technology, tungsten alloy materials, service life is long, thin blade thickness is only 1.2 mm, cutting out the cardboard is smooth, no burr, no crushed phenomenon, and the straightness is good, the quality of the cardboard to get great improvement.
2. The machine adopts double rubber roller (strong rubber ) guiding paper, bottom blades synchronous moving, rolling line at five points of design, good straightness, reasonable structure, convenient operation, high efficiency.
3. The grinding blade function, using the manual and automatic two ways to sharpen, convenient, quick, can work while sharpening, thus greatly improve the work efficiency.
4. Drive way, the main drive is chain transmission, low noise, low maintenance rate, thin blade drive adopt imported synchronous belt transmission, low noise, long service life.
5. Electrical components, the main motor adopts the electromagnetic adjustable speed motor, smooth operation, the revolution is adjustable, components adopt schneider, Siemens and other brands.
Model | 2000 | 2300 | 2300 | 3000 | |
Machine dimension(mm) | 2600*750*1400 | 2900*750*1400 | 3000*750*1400 | 3600*750*1400 | |
Motor power | 3 | 4 | 4 | 5.5 kw | |
Max slitting width(mm) | Inverse | 1900 | 2200 | 2300 | 2930 |
Positive blade | 1800 | 2100 | 2200 | 2900 | |
Min slitting width(mm) | Inverse | 305 | 305 | 305 | 305 |
Positive blade | 140 | 140 | 140 | 140 | |
Min slitting length(mm) | 435 | 435 | 435 | 435 | |
Min scoring width(mm) | Positive scoring | 30 | 30 | 30 | 30 |
Inverse scoring | 80 | 80 | 80 | 80 | |
Scoring height(mm) | 0-10 | 0-10 | 0-10 | ||
Blade(mm) | φ200×122×1.2 | ||||
Slitting scoring composed type | Three blade Four scoring/Four blades Six scoring/Five blade Eight scoring | ||||
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
