Triple wall corrugated cardboard is a 7‑ply board made from three corrugated (fluted) mediums sandwiched between four linerboards, creating an extremely strong and rigid structure for heavy‑duty packaging. Compared with single and double wall, it offers significantly higher compression strength, puncture resistance, and stacking stability, often performing close to wooden crates but with much lower weight. [brownpackaging]
From my daily work with export customers, I see triple wall used whenever a standard carton is "not enough" – for example, when you need to ship high‑value machinery, bulk liquids in liners, or dense components across long international supply chains. [alibaba]
Triple wall corrugated cardboard has become a go‑to material for global brands, industrial manufacturers, and 3PLs that must balance protection, cost, and sustainability. As a packaging equipment manufacturer in Hebei serving OEM clients, we see three recurring drivers behind the shift to triple wall: [linkedin]
- Heavier, more complex products entering e‑commerce and direct‑to‑customer channels. [alibaba]
- Longer, multi‑modal supply chains (truck–rail–sea–air) with higher risk of impact, vibration, and stacking loads. [rajapack.co]
- Stricter sustainability and cost‑control targets pushing companies away from wood and mixed‑material crates. [gwp.co]
When these three forces combine, triple wall offers a practical, scalable answer that works well with modern carton packaging machines.

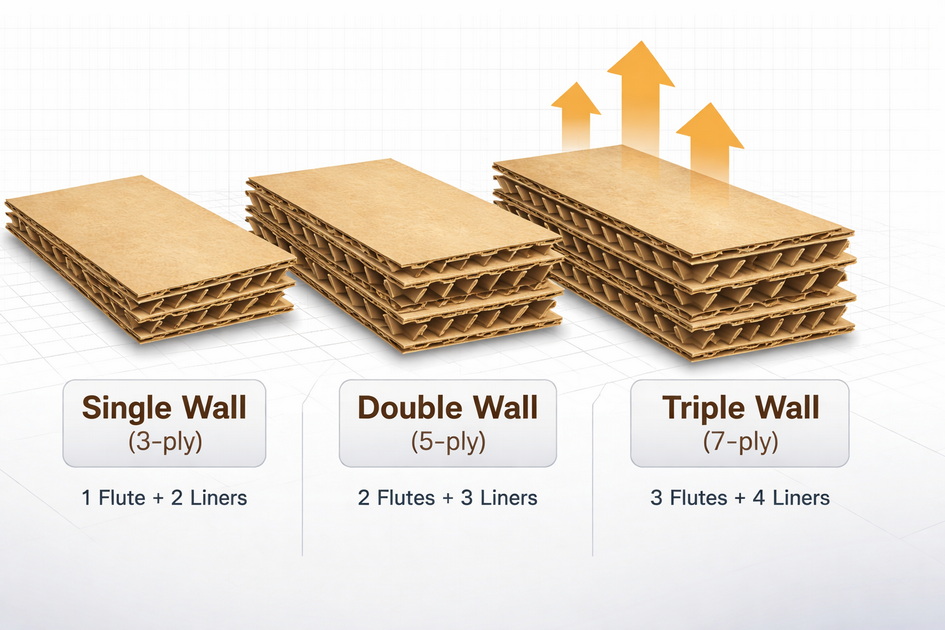

Triple wall corrugated is engineered in a layered sandwich structure: three fluted mediums plus four liners. [aopackmachine]
- Flutes: Corrugated "waves" that create vertical strength and cushioning.
- Liners: Flat outer sheets that provide surface hardness, printability, and additional rigidity.
Typical features include:
- 7‑ply construction (3 flutes, 4 liners) with flute combinations such as A/B/C to optimize strength and thickness. [tube-boxes]
- Board thickness significantly higher than double wall, enabling performance comparable to timber in many use cases. [suttonspp]
- Custom flute mixes (for example, one coarse flute for cushioning plus two finer flutes for stacking and surface quality) to match product and logistics requirements. [en.wikipedia]
For machine manufacturers like us, understanding this board architecture is critical for designing heavy‑duty corrugated box machines that can handle thicker, stiffer sheets without loss of precision or speed. [aopackmachine]
Below is a simplified view of how single, double, and triple wall materials compare in real‑world usage. [cactuscontainers]
| Board type | Structure & layers (typical) | Typical load / duty level | Common applications | Key advantages |
|---|---|---|---|---|
| Single wall | 1 flute + 2 liners (3‑ply) [en.wikipedia] | Light duty, small parcels, consumer goods [rajapack.co] | Retail cartons, inner boxes, e‑commerce shippers for light items | Low cost, lightweight, easy to die‑cut and print [rajapack.co] |
| Double wall | 2 flutes + 3 liners (5‑ply) [en.wikipedia] | Medium–heavy, up to around 60–80 kg (depending on spec) [gwp.co] | Industrial parts, bulk food, shelf‑ready outer packaging | Better stacking, impact protection, and puncture resistance than single wall [rajapack.co] |
| Triple wall | 3 flutes + 4 liners (7‑ply) [aopackmachine] | Heavy duty, up to 100 kg+ and in some designs 500 kg or more with correct engineering [gwp.co] | Machinery, automotive parts, export pallet boxes, crate replacements [suttonspp] | Near‑timber strength, excellent stacking and impact resistance, still relatively lightweight and recyclable [suttonspp] |
In practice, we recommend triple wall when:
- You stack multiple layers on pallets or inside containers and cannot risk box collapse. [gwp.co]
- Products are heavy, dense, or highly valuable (e.g., gearboxes, motors, industrial equipment). [brownpackaging]
- Export routes are long, with repeated handling and climate changes. [rajapack.co]
From both lab data and field feedback, triple wall delivers four core performance advantages.
The multi‑flute design gives triple wall high vertical compression strength, preventing cartons from crushing under pallet loads or container stacking. This capacity is why many heavy‑duty users adopt triple wall as a direct alternative to wooden crates in racking and sea‑freight environments. [suttonspp]
Triple wall boxes absorb shocks and puncture forces across multiple layers: outer liners handle abrasion, while inner flutes act as energy absorbers. This layered protection is especially important for rough, long‑distance shipping where cartons may face tipping, forklift impact, or sudden deceleration. [smartshieldpackaging]

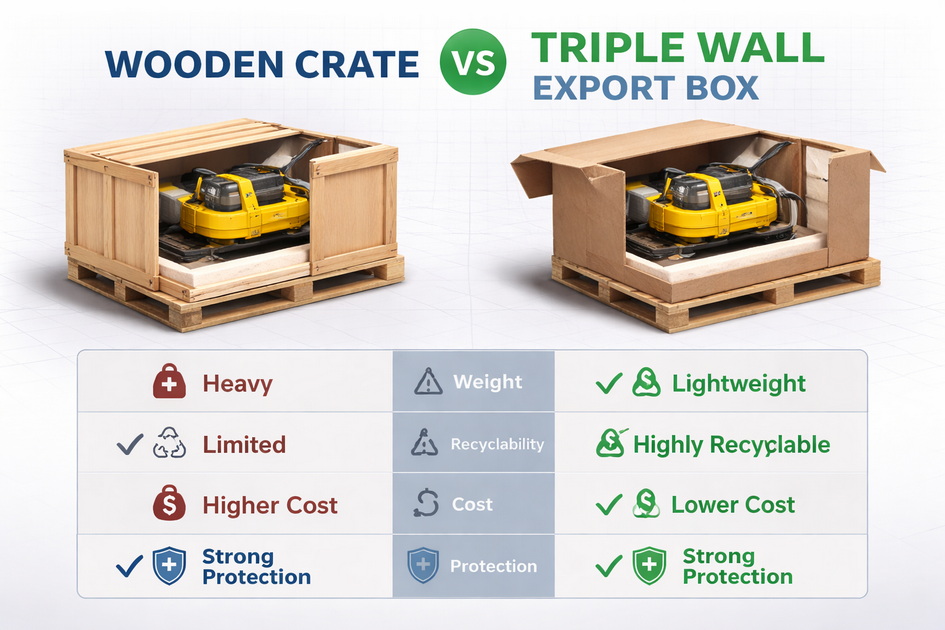

Compared with timber, triple wall significantly reduces tare weight, which can lower freight charges and improve manual handling safety. At the same time, it has comparable protection for many types of cargo, making it attractive for operations trying to cut packaging costs without adding risk. [smartshieldpackaging]
Triple wall corrugated is typically made from recyclable fiber and can often be reused for multiple trips, depending on how it is handled. Many of our European and North American clients have shifted from mixed‑material crates to all‑paper solutions to support corporate ESG targets and simplify downstream recycling. [linkedin]

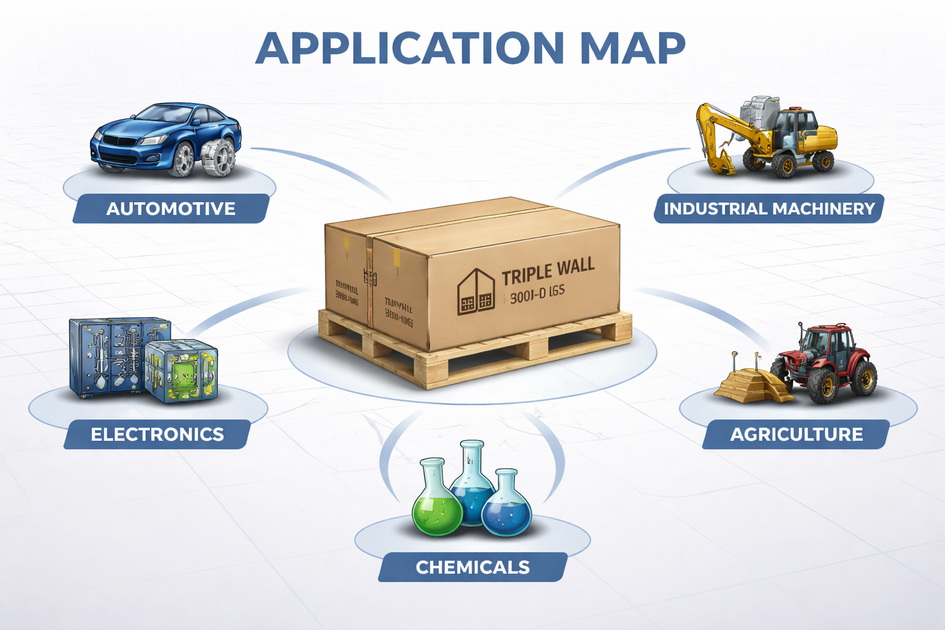

In our experience, demand for triple wall is highest in sectors where a packaging failure would be extremely costly. Industry sources show similar patterns worldwide. [alibaba]
- Heavy machinery and equipment, including pumps, motors, compressors, and gearboxes. [brownpackaging]
- Automotive components such as engines, body panels, and large assemblies. [smartshieldpackaging]
- Spare parts shipped in bulk to overseas distribution centers.
- Large battery systems, industrial control panels, switchgear, and power modules. [smartshieldpackaging]
- Sensitive equipment requiring both mechanical protection and the option of anti‑static inner packaging. [smartshieldpackaging]
- Bag‑in‑box liquids, powders, and granulates in export containers. [rajapack.co]
- Bulk agricultural products such as seeds, nuts, or processed ingredients. [aopackmachine]
- Pallet boxes used as "lightweight crates" for warehouse and cross‑dock operations. [suttonspp]
For each of these applications, customers increasingly expect custom‑size cartons produced on flexible carton packaging machines instead of stocking dozens of pre‑made box SKUs.
One industrial packaging study highlights that triple wall's robust construction can significantly lower transport damage rates for heavy and fragile goods. [cactuscontainers]
Typical improvements include:
1. Fewer crushed boxes on the bottom layer of pallets due to higher stacking strength. [gwp.co]
2. Reduced puncture and tear incidents when cartons contact forks, corners, or protruding hardware. [cactuscontainers]
3. Lower vibration‑related damage during long‑haul road and sea freight, thanks to the cushioning of multiple flutes. [cactuscontainers]
From an ROI perspective, switching from double to triple wall can look more expensive per box, but once you factor in fewer claims, less repacking, and reduced emergency shipments, many industrial users see a net cost reduction over a full year. [alibaba]

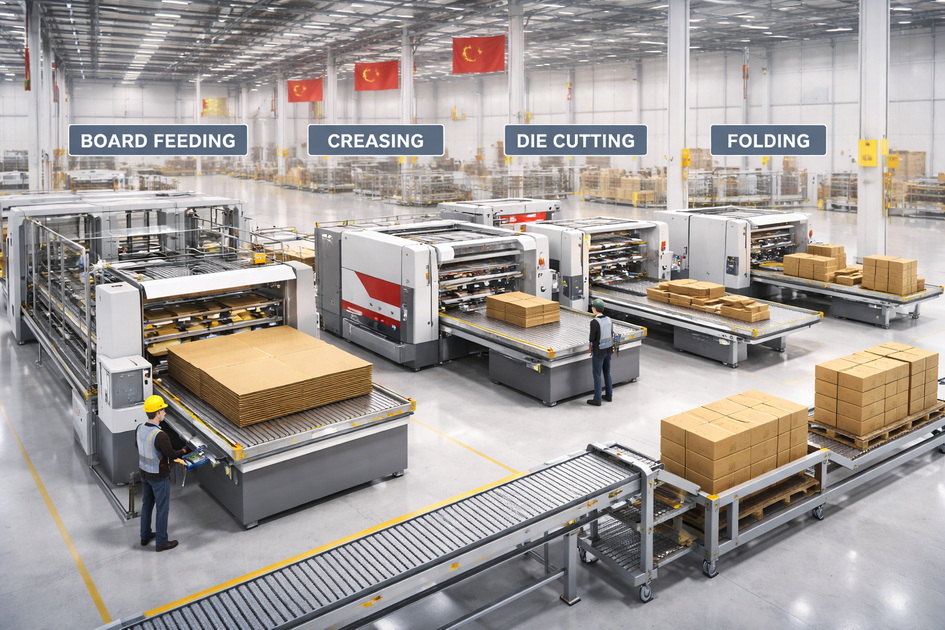

As a Chinese carton packaging equipment manufacturer, we often help overseas OEM customers upgrade their production lines to handle triple wall more efficiently. [aopackmachine]
Key machine‑related considerations include:
- Board feeding: Triple wall is thicker and stiffer, so the machine must have robust, adjustable feeding and creasing systems to prevent jams and mis‑feeds. [aopackmachine]
- Die‑cutting and creasing: Higher pressure and optimized tooling profiles are needed to achieve clean creases without cracking liners. [rajapack.co]

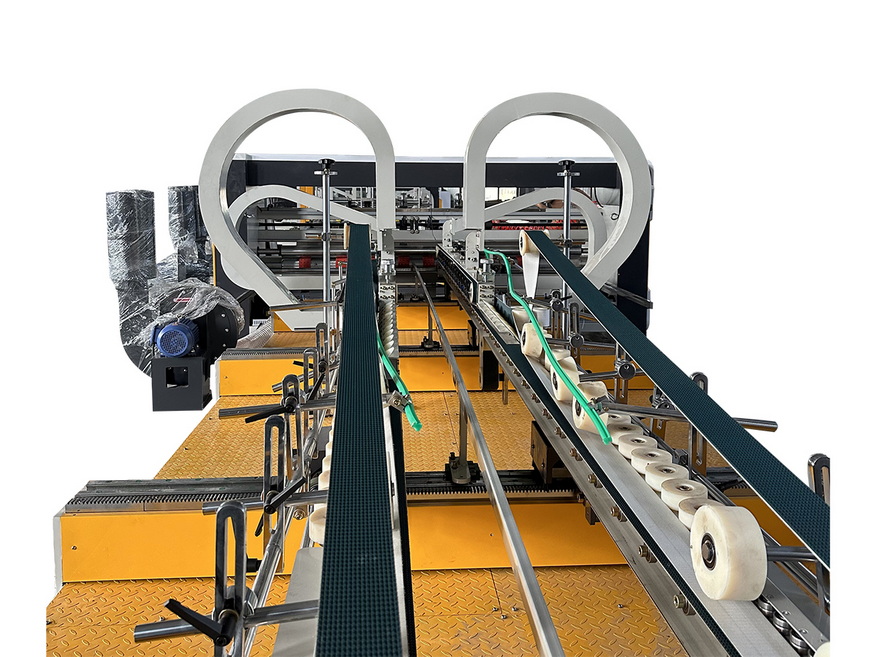

- Gluing and folding: Heavy‑duty folding sections and strong gluing systems ensure that big, heavy cartons maintain squareness and bond strength at speed. [aopackmachine]

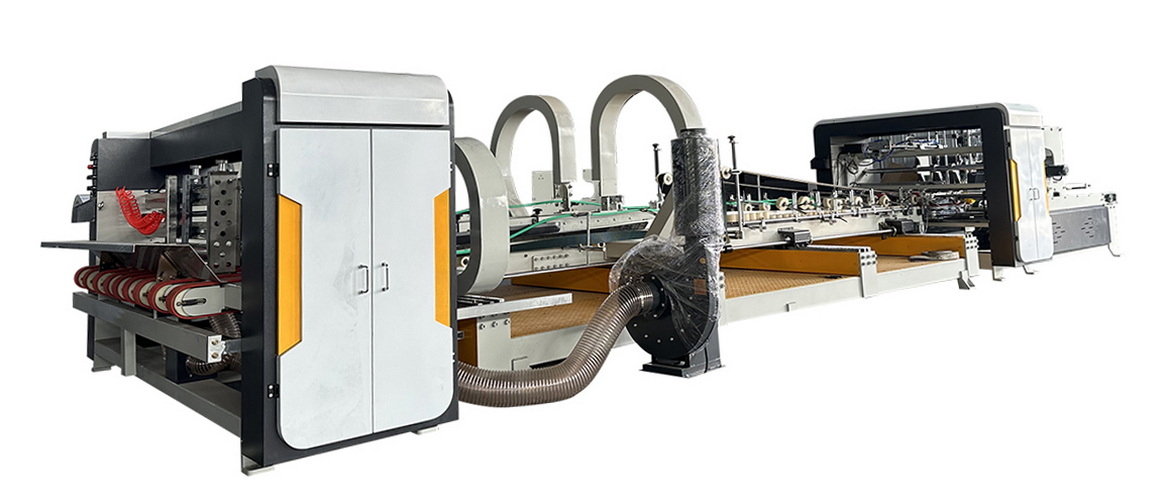

Machines specifically designed for heavy‑duty corrugated, such as dedicated heavy‑duty corrugated box lines, enable on‑demand production of large triple wall boxes, allowing customers to replace multiple manual steps with an automated, data‑driven process. [alibaba]
To help packaging engineers and buyers decide whether to adopt triple wall, we recommend a structured checklist that combines technical and commercial factors.
- Product weight per carton and per pallet layer.
- Maximum stacking height in warehouse and inside containers.
- Expected compression forces, considering worst‑case scenarios in transit and storage. [gwp.co]
If safety margins are tight with double wall – or if you already see crush damage – triple wall is usually the safer choice. [gwp.co]
- Number of handling points (loading, cross‑dock, customs, last‑mile).
- Modes used: road, rail, sea, air.
- Climate variations (humidity, temperature swings) along the route. [cactuscontainers]
Long, complex routes with rough handling and climate changes strongly favor triple wall for stability and impact resistance. [rajapack.co]
- Current damage and return rates.
- Labor cost of re‑packing or reinforcing cartons.
- Freight savings from replacing wood with lighter corrugated. [suttonspp]
Many users find that slightly higher box cost is easily recovered by lower damage, lower labor, and improved customer satisfaction. [smartshieldpackaging]
To fully unlock the value of triple wall, packaging designers should follow a few best practices widely recommended in the corrugated industry. [greatnorthernpackaging]
- Use appropriate flute combinations (e.g., heavy outer flute plus finer inner flutes) to balance cushioning and surface quality. [en.wikipedia]
- Optimize pallet patterns and box dimensions to maximize container fill while respecting stacking limits. [alibaba]
- Reinforce high‑stress areas with corner posts, inserts, or double‑wall inner supports if needed. [greatnorthernpackaging]
- Ensure board specifications (ECT/BCT or equivalent) are validated through testing, not assumptions. [greatnorthernpackaging]
When these steps are integrated with modern carton packing equipment, users can achieve both high protection and high automation efficiency.
Triple wall corrugated also supports modern regulatory and sustainability requirements.
- Corrugated is widely accepted in global recycling streams and often contains a high percentage of recycled fiber. [linkedin]
- Tri‑wall export boxes can be designed to meet key international standards for export packaging; they help companies reduce dependence on ISPM‑15 treated wood crates. [suttonspp]
- Many brands use heavy‑duty corrugated to support ESG reporting, highlighting their shift away from plastics and mixed‑material packaging. [greatnorthernpackaging]
For exporters, these factors are not just "nice to have" – they can translate directly into smoother customs clearance, better retailer acceptance, and a stronger corporate image.
To maximize user engagement and clarity, we recommend inserting visuals at these points:
- Near the definition section: A cross‑section diagram comparing single, double, and triple wall boards (showing number of flutes and liners). [en.wikipedia]
- Next to the comparison table: A simple infographic summarizing optimal usage scenarios for each board type.
- In the applications section: Photos of triple wall export cartons for machinery, automotive parts, and pallet boxes.
- In the machine integration section: A process flow image or short video showing a heavy‑duty carton packaging machine handling thick triple wall sheets. [aopackmachine]
Such visuals make it easier for engineers, buyers, and non‑technical stakeholders to quickly understand why triple wall is different and how it fits into their operations.
If your business is:
- Experiencing carton collapse, damage, or high claim rates on heavy shipments,
- Transitioning from wooden crates to heavy‑duty triple wall export cartons, or
- Looking to automate on‑demand production of large, custom‑size boxes,
then it is the right time to review your packaging strategy and equipment together.
As a dedicated Chinese factory specializing in carton packaging machines, we help overseas brands, wholesalers, and manufacturers design OEM‑tailored solutions for triple wall corrugated – from board handling and forming to gluing and final packing. You can contact our engineering team with your product dimensions, weights, and export routes, and we will provide a practical proposal optimized for both protection and cost. [linkedin]
Triple wall corrugated cardboard is a heavy‑duty 7‑ply material made from three layers of corrugated fluting and four liners, designed for high loads and demanding transport conditions. [brownpackaging]
Triple wall offers significantly higher compression and puncture resistance than double wall, with performance comparable to some wooden crates and typical load capacities reaching 100 kg or more per carton, depending on design. [facebook]
Yes, tri‑wall boxes are widely used in export packaging because they withstand high stacking loads, long transit times, and variable climates, often replacing wood crates while remaining fully recyclable. [suttonspp]
In many cases, triple wall reduces total costs by lowering damage rates and weighing less than wooden crates, which can reduce freight charges and handling costs despite a higher unit price than standard cartons. [rajapack.co]
You need heavy‑duty carton packaging equipment capable of feeding, creasing, die‑cutting, folding, and gluing thicker, stiffer boards while maintaining accuracy and speed; specialized machines for heavy‑duty corrugated are recommended. [rajapack.co]
