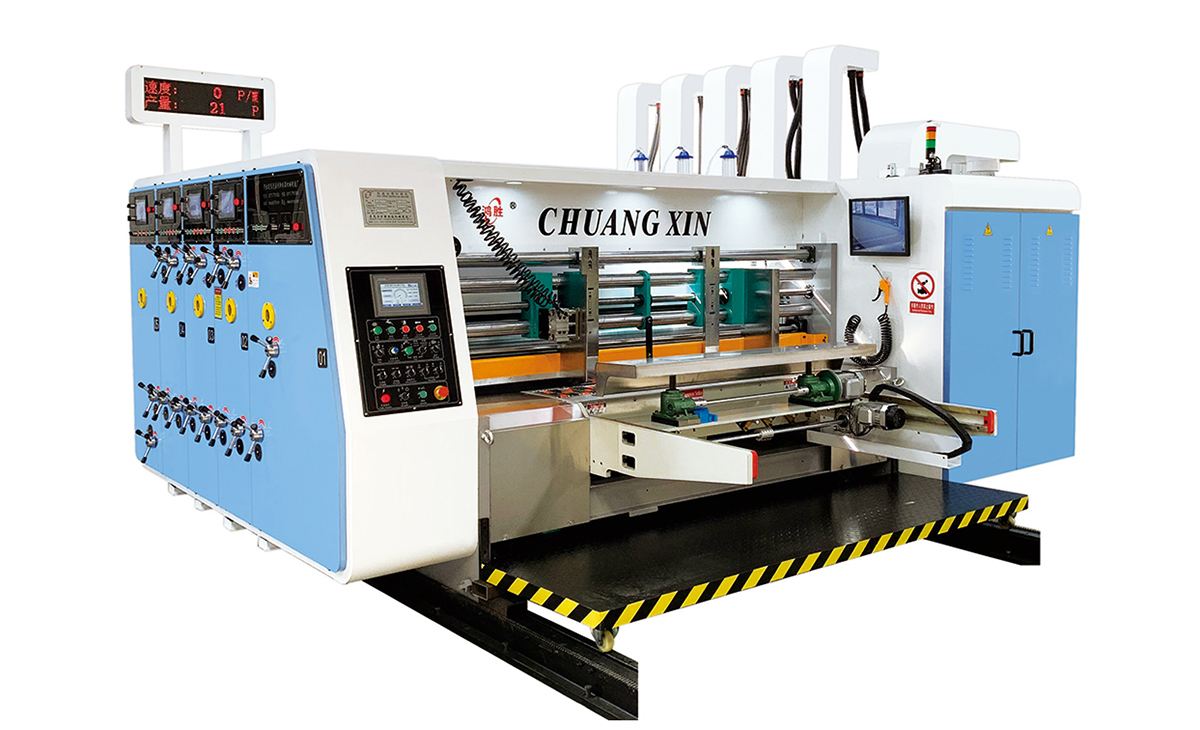

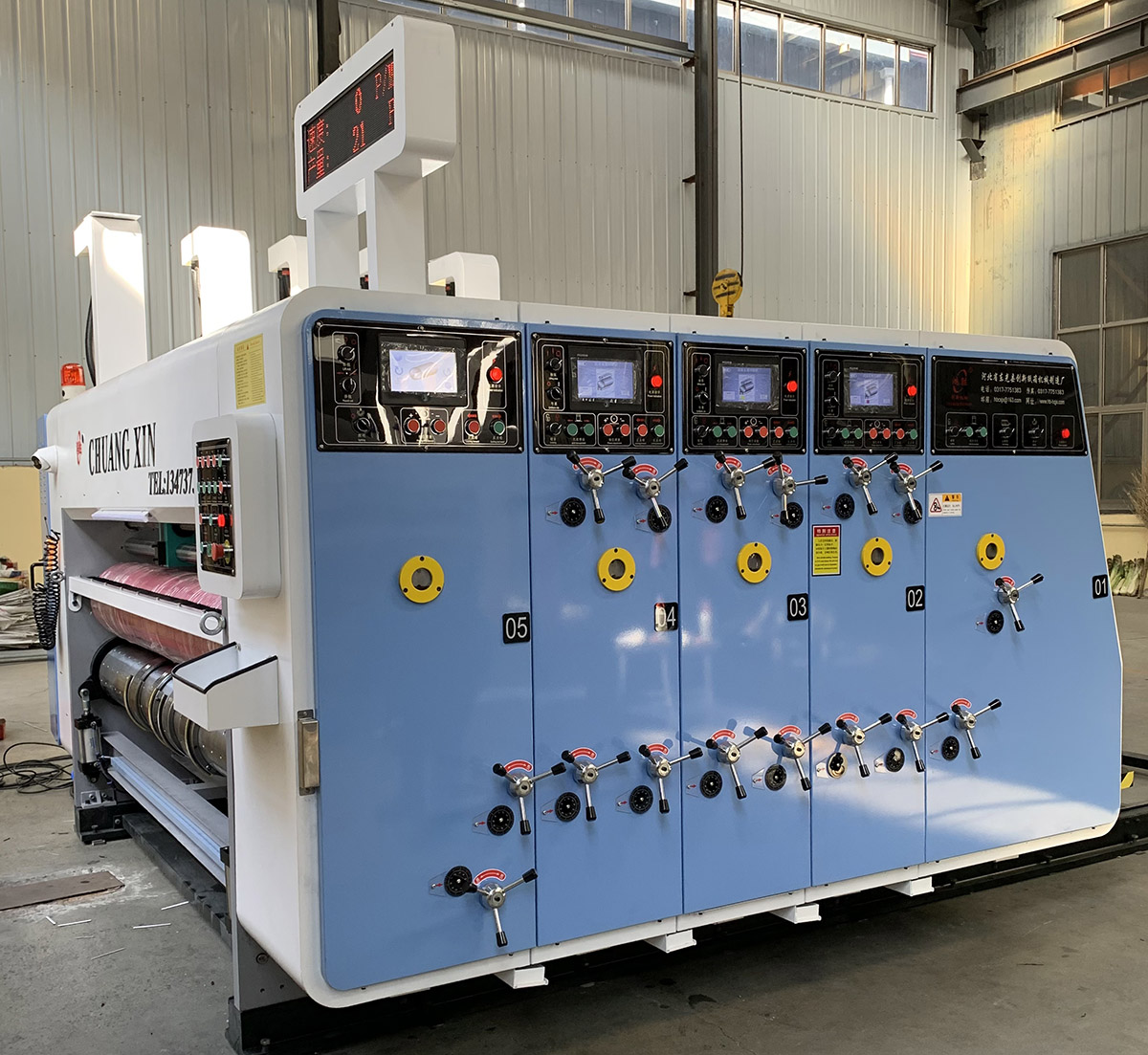

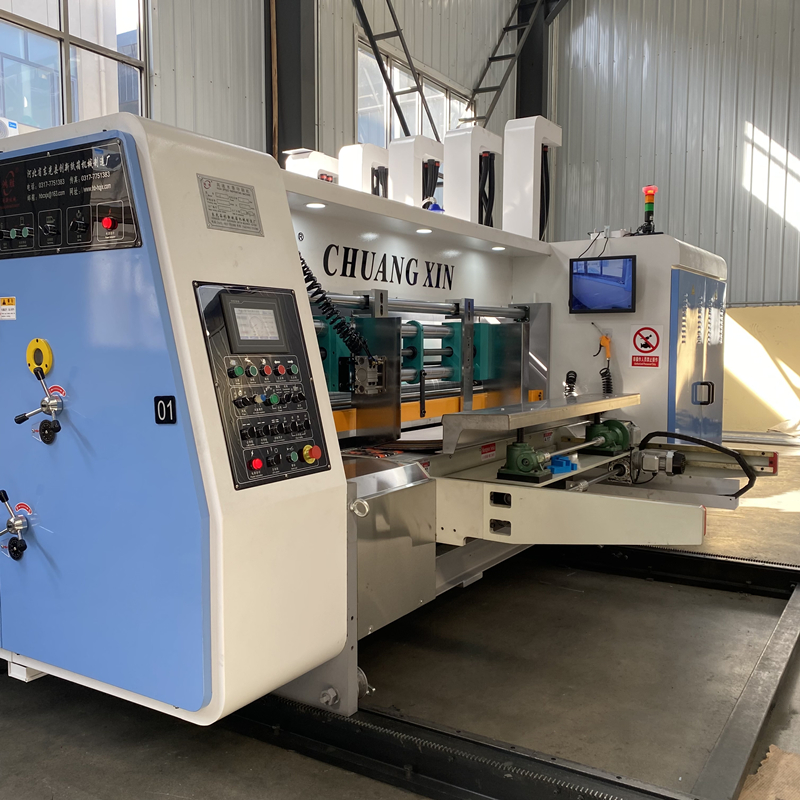

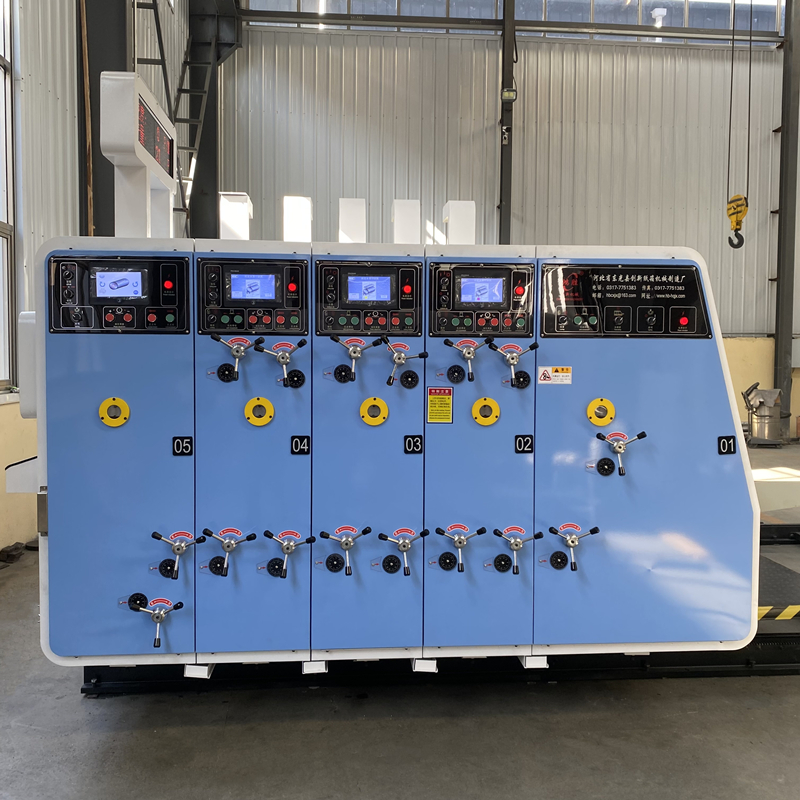

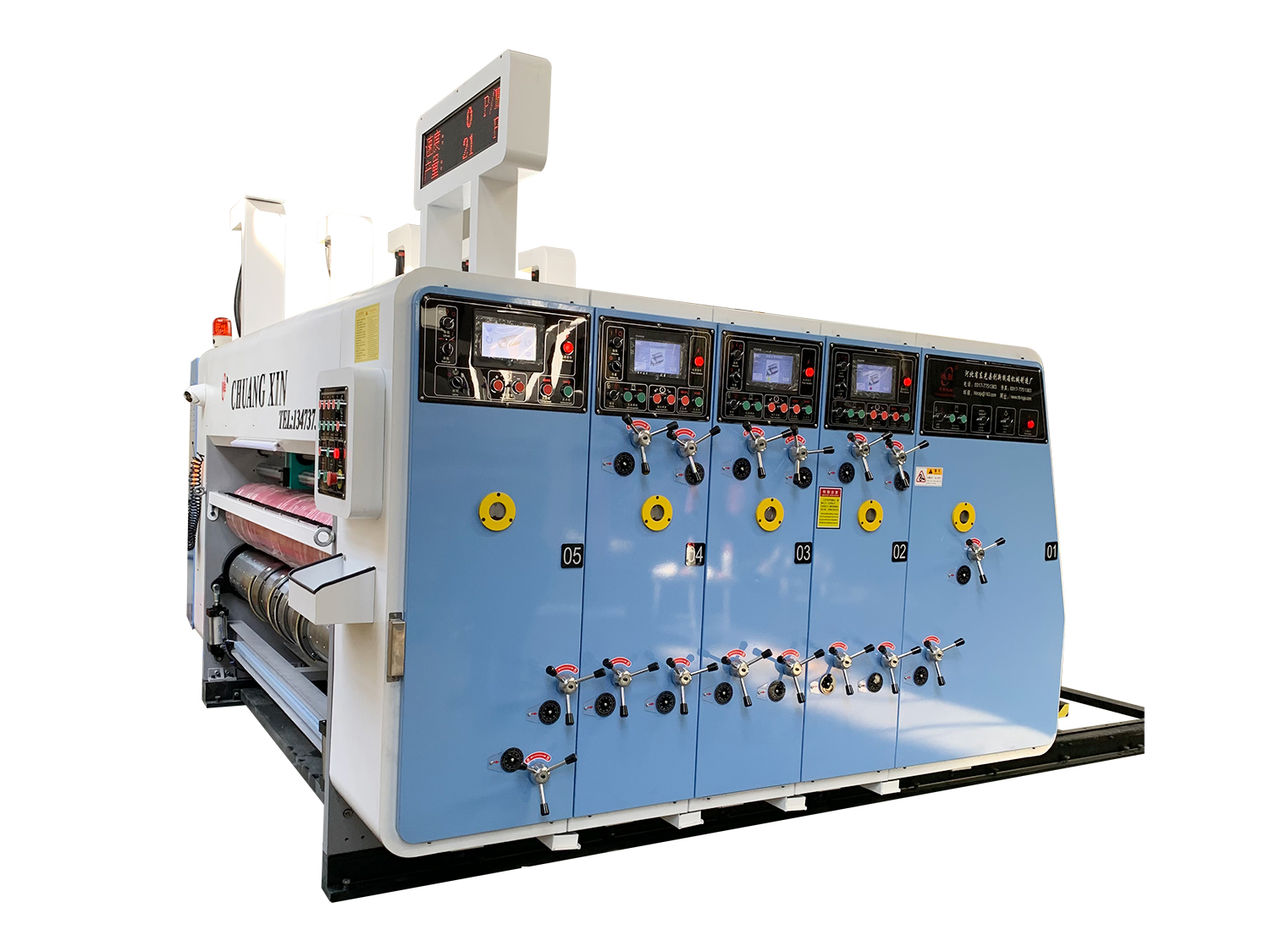

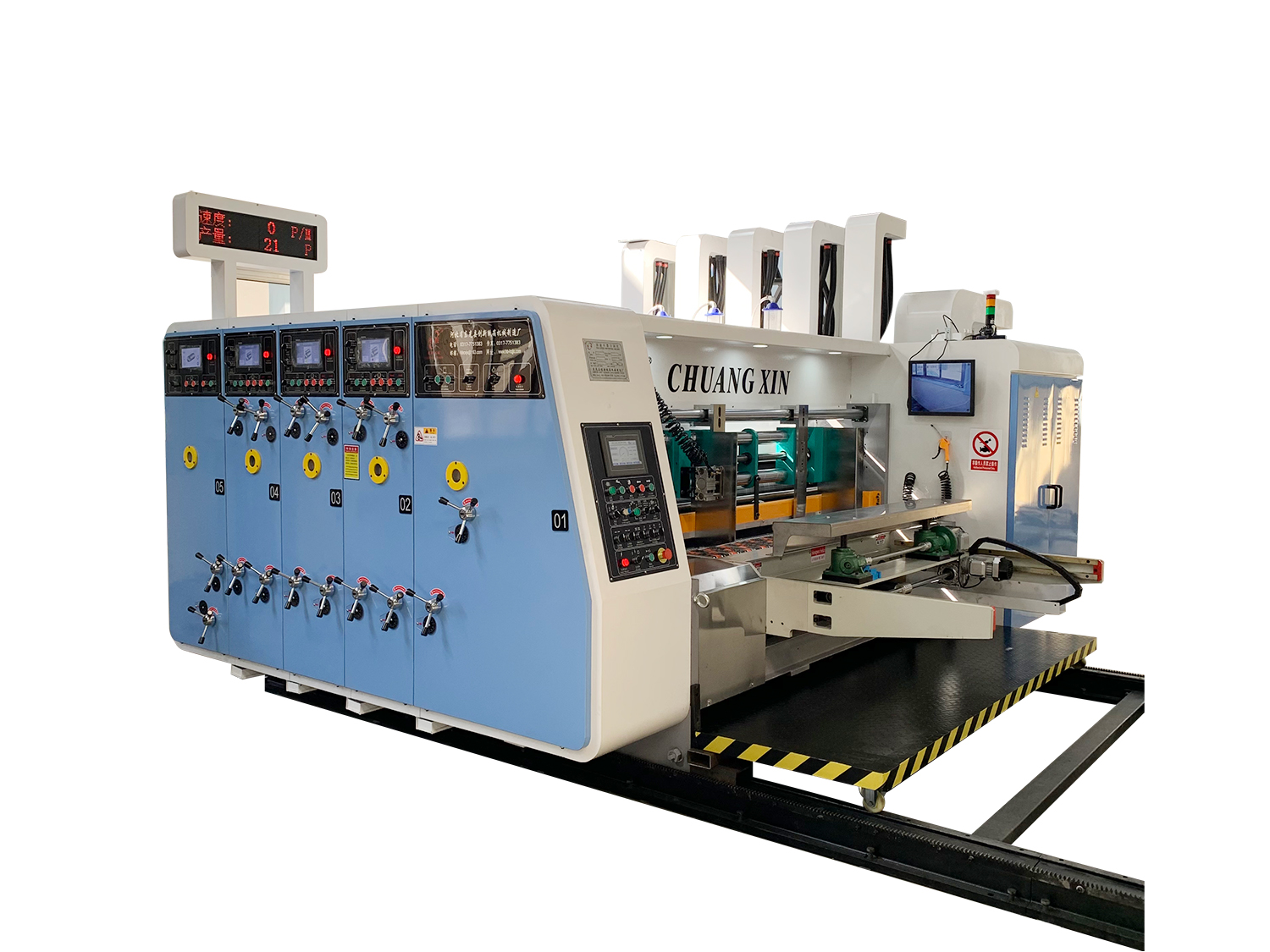

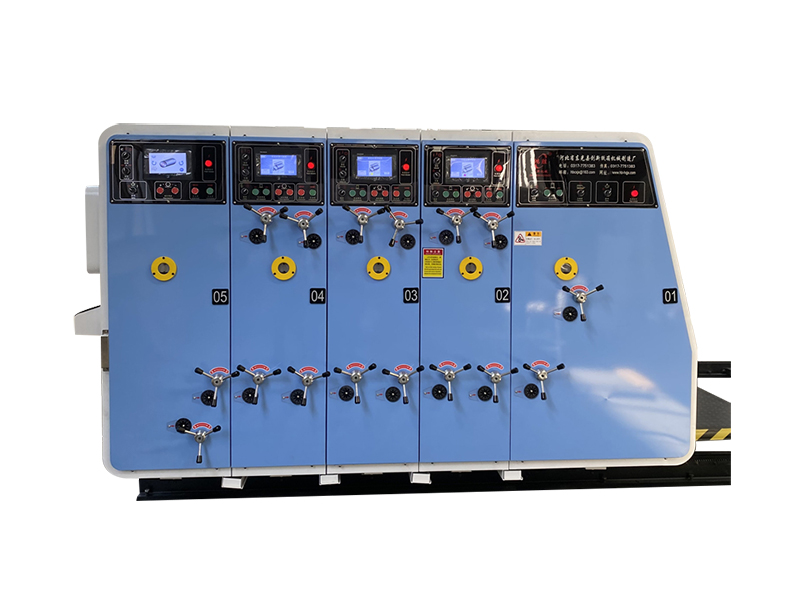

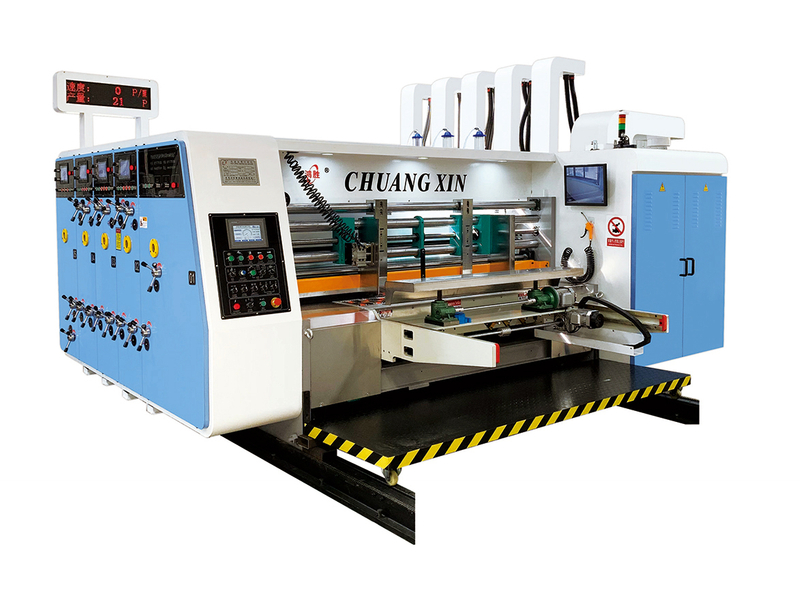

As a significant part of corrugated carton production line, our OUYE series auto flexo printer slotter die cutter and stacker, is mainly designed for printing high quality and precision colors on corrugated cartons, especially for top printing.
Model | OY-0922 | OY-1224 | OY-1228 | OY-1424 | OY-1428 | |
Max. design speed (pcs/min) | 200 | 200 | 200 | 200 | 180 | |
Working speed (pcs/min) | 0-200 | 0-200 | 0-200 | 0-200 | 0-180 | |
Max. feeding size (mm) | 900×2200 | 1200×2400 | 1200×2800 | 1400×2400 | 1400×2800 | |
Max. printing size(mm) | 880×2000 | 1150×2200 | 1150×2600 | 1350×2200 | 1350×2600 | |
Min. feeding size (mm) | 260×580 | 360×700 | 360×700 | 380×700 | 380×700 | |
Min. slot size | Reverse | 220×65 | 265×100 | 265×100 | 265×100 | 265×100 |
Positive | 135×135 | 165×165 | 165×165 | 165×165 | 165×165 | |
Standard printing plate thickness | 7.2mm | 7.2mm | 7.2mm | 7.2mm | 7.2mm | |
(Size can be customized according to customer requirements)
This corrugated board printing machine is available with touch screen and motorized control systems.
It is constructed from the highest quality materials and components.
The transmission gears, made of premium alloy steels, have processed by carburizing, quenching and grinding. The hardness is HRC58-62.
The main drive roller of this auto flexo printer slotter die cutter and stacker employs keyless connection which can decrease connection clearance and thereby keep long-lasting printing precision.
The transmission device features circulating lubrication by double oil pump.
This auto flexo printer slotter die cutter & stacker come with auto zero and memory reset functions.
The packaging machinery is suitable for making small size corrugated cartons.
Its maximum machine speed can reach 200 sheets per minute.
Paper feeding unit
Lead edge paper delivery system, suitable for all kinds of tile board, increase thin board and warp board transmission stability, high speed, precision.
The whole machine automatic zero system, storage of common orders, quick order change, convenient operation.
Mechanical automatic oil lubrication system, equipped with automatic balancing device, enhance the service life of the transmission gear.
Optional: six-axis slot group / soft die cutting structure / computer adjustment version free die cutting.
Printing Unit
Printing roller horizontal computer adjustment, amplitude adjustment ± 10mm.
Precision mesh roller, its mesh roller with the paper delivery system, air pressure automatic lifting device (when the paper delivery mesh roller down and the printing plate contact, stop the paper delivery mesh roller rise and the printing plate separation).
Optional: air absorption and dust removal system, can remove a large amount of the paper surface dust, improve the printing quality.
Optional: servo front edge, pressure-free paper delivery system.
Ratchet type fast plate device, full version of the plate ditch, applicable to 9mm plate strip, with foot switch electric control positive and reverse.
Erasing version of the memory, automatic reset system.
Optional: scraper and ceramic mesh roller uniform ink mode.
Die Cutting Unit
In addition to the standard configuration of the main function of die cutting, in addition to the configuration of four sets of steel die, do ordinary industrial box slotting, cutting Angle, dividing the use of electric four-tool synchronous adjustment (box height synchronous adjustment), electric transverse movement. One click change order, can store 999 orders, convenient and fast.
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
