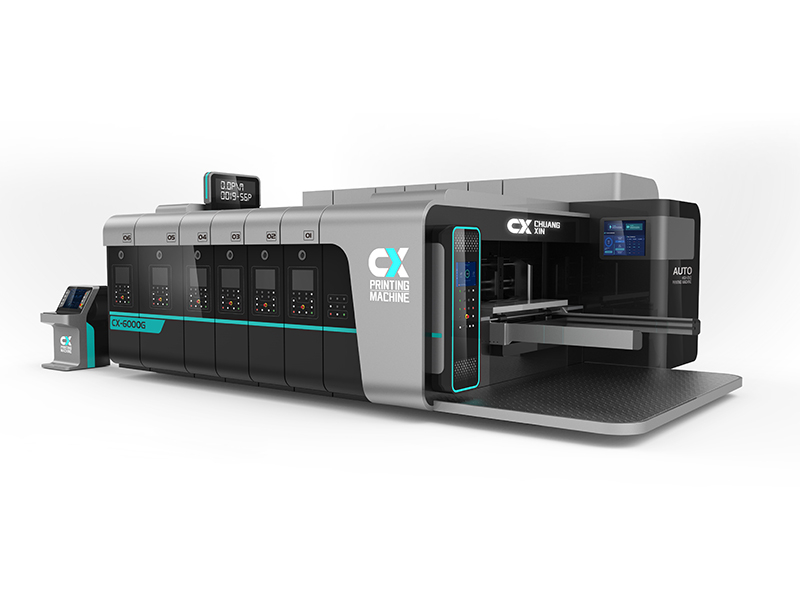

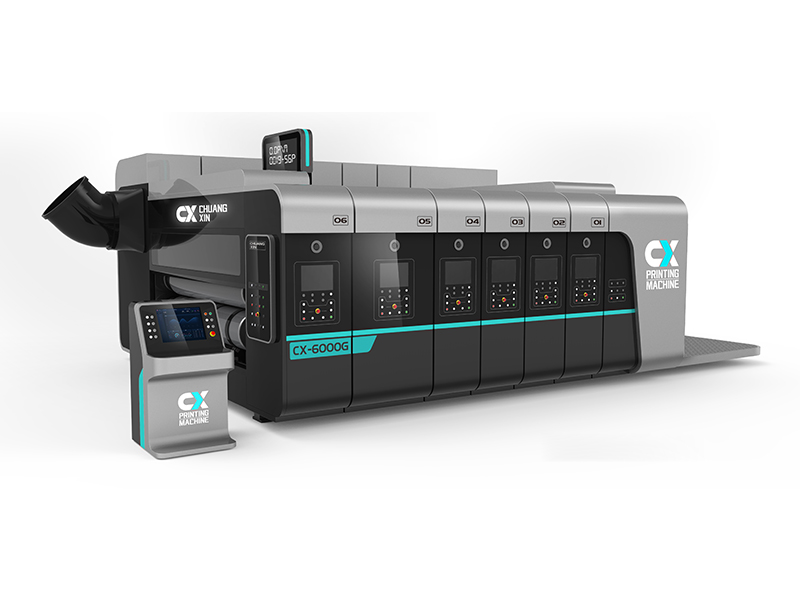

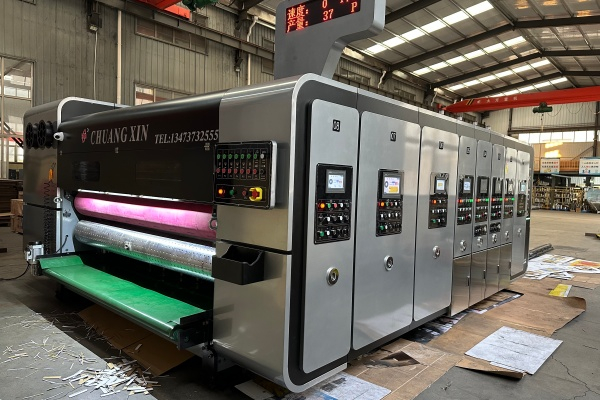

The whole process of vacuum adsorption transfer, supporting all ceramic paper feeding wheel, paper feeding precision and smooth zero pressure does not hurt the cardboard.
The electric control machine is clutch, with alarm bell, continuous ringing alarm when traveling, to ensure the safety of the operator.
Type Project | 920 | 924 | 1224 | 1228 | 1428 | 1628 |
Max.speed (piece/min) | 350 | 280 | 250 | 230 | 230 | 200 |
Max.feed size(mm) | 900×2100 | 900×2500 | 1200×2500 | 1200×2900 | 1400*2800 | 1600*2800 |
Min.feed size(mm) | 280×600 | 280×600 | 350×600 | 350×600 | 380*600 | 420*650 |
Sizeofdrawing paper(mm) | 1200×2100 | 1200×2500 | 1500×2500 | 1500×2800 | 1700*2800 | 1900*2800 |
Max.printing area(mm) | 880×2000 | 880×2400 | 1180×2400 | 1180×2800 | 1380*2800 | 1580*2800 |
Thickness of standard printing plate(mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
Max.die size(mm) | 900×2000 | 900×2400 | 1200×2400 | 1200×2800 | 1400*2800 | 1600*2800 |

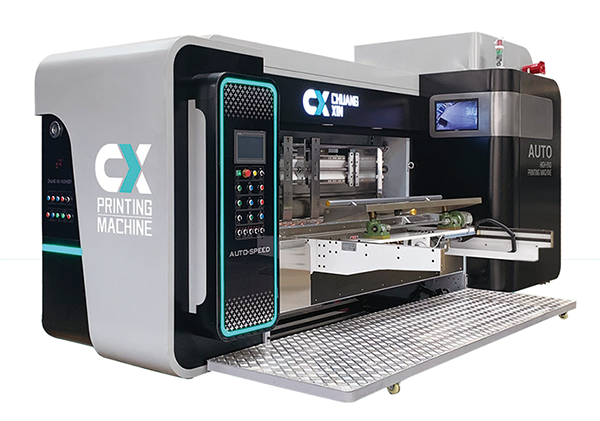

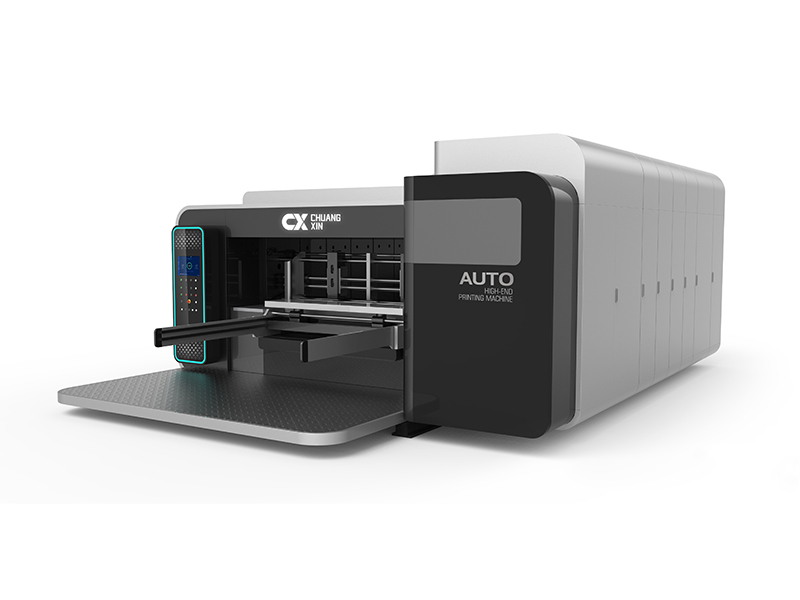

Paper feeding unit
1. Servo pressure free leading edge roller feed system, supporting four servo systems, intelligent control, accurate, no gear wear caused by the paper feed precision reduction.
2. Equipped with the company's unique parallel fit type suction dust removal mechanism, for large field and high network printing has a reliable guarantee, while effectively reducing the number of stoppage erase.

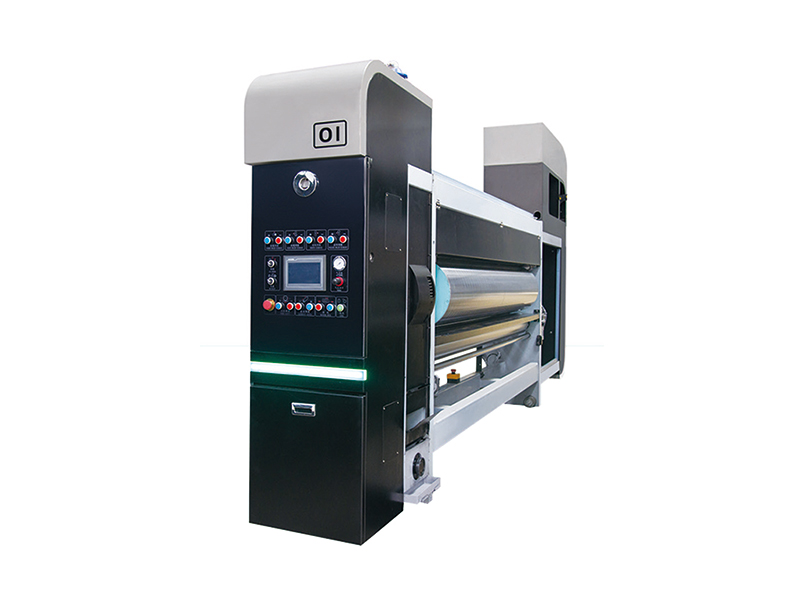

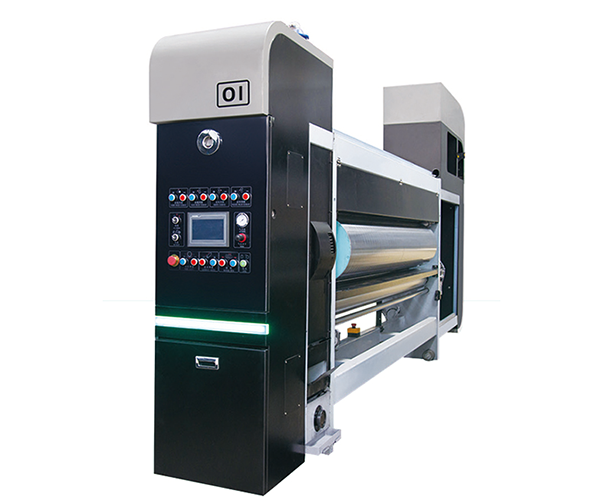

Printing unit

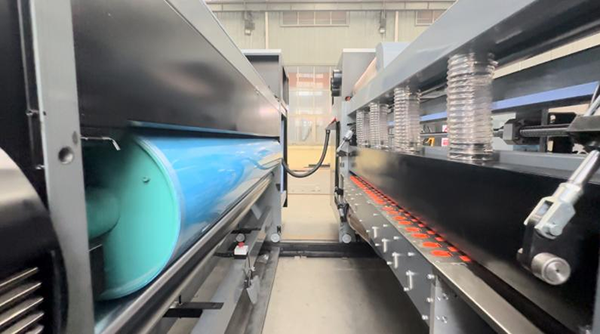

1. Printing pressure roll (in the vacuum bellows, vacuum adsorption transfer board)
2. The use of vacuum adsorption to transport cardboard, without the use of paper drawing rings can make the cardboard through the printing department, accurately transport cardboard.
3. Electromagnetic clutch brake mechanism, when the unit separation adjustment phase or cleaning, the brake mechanism limits the rotation of the gear, keep the original tooth position fixed point.
Drying unit
1. The width of the drying wall panel is designed to be 1.25 meters, and the cardboard can speed up the drying speed by staying for a long time.
2. the bellows are adjusted by computer control, the control range is 0-9mm. .
3. Infrared drying temperature can be manually/automatically set according to the actual needs of printing, and is equipped with automatic temperature control device and safety protection function.

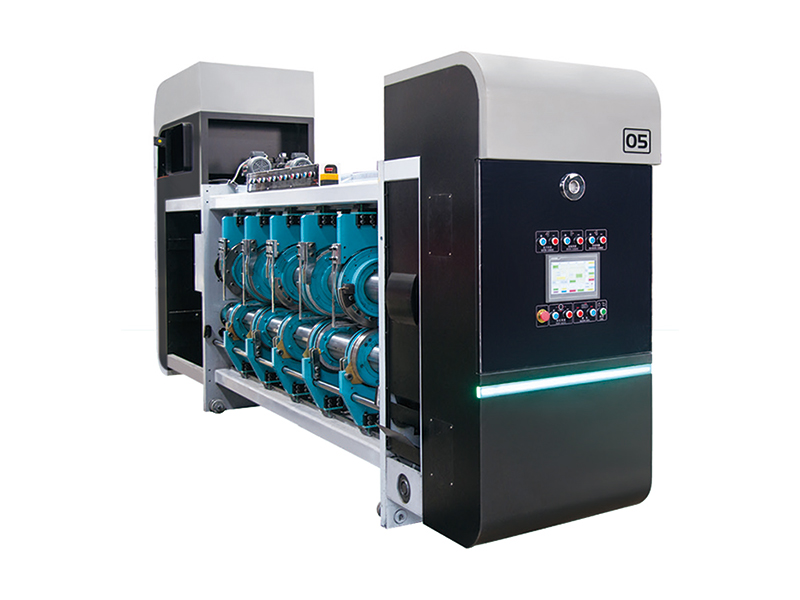

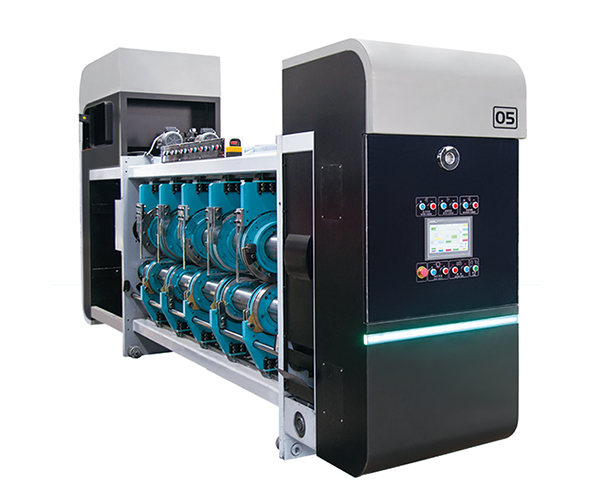

Slotting unit
1. Box height adjustment planetary gear construction.The slotted box high phase adjustment is controlled by servo motor. Box height, phase adjustment interface; With automatic zeroing, automatic version and preset slot position and other functions, running stop can be adjusted.
2. Double-channel pressure line and prepressure wheel adjustment gap adopts self-locking structure, electric adjustment, computer control, adjustment range 0-12mm.
3. The width of the slotting knife is 7mm.
4. The transverse position of double-channel line press wheel and double-slotted cutter seat is controlled by computer and electric digital.

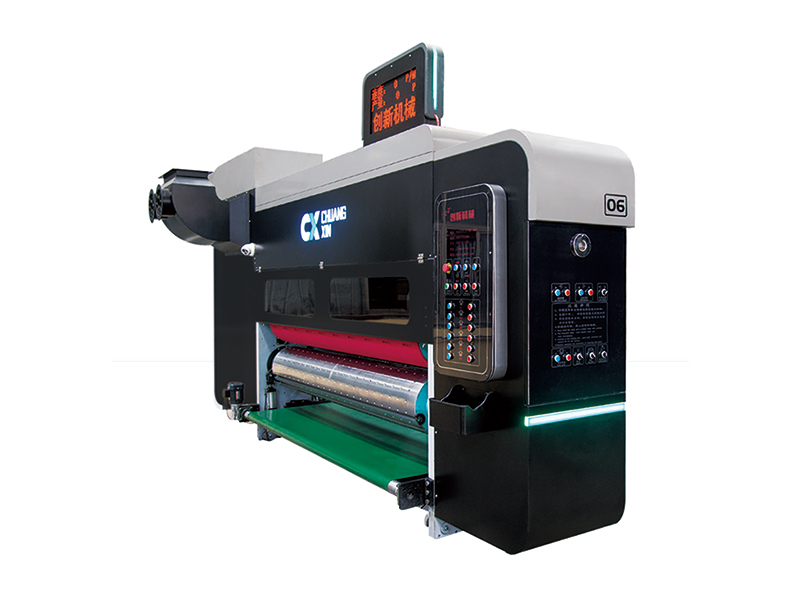

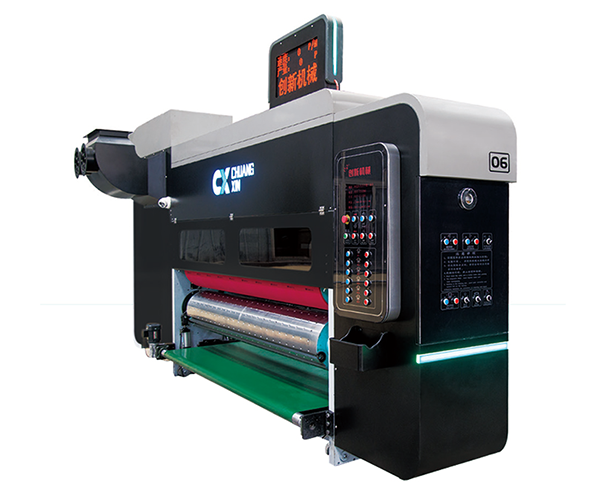

Die-cutting unit
1. It is applicable to the production of irregular-shaped cartons.
2. The phase adjustment of die cutting is controlled by servo motor to realize the change of version and adjust the two-speed control. Phase adjustment interface; With automatic zero, automatic version and preset die cutting position and other functions. (Operation, stop can be adjusted).
3. The die-cutting roller and the rubber pad roller are independently driven by servo motors，Stable operation.

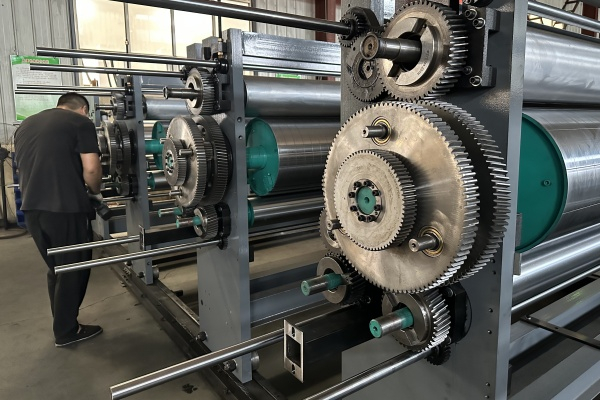

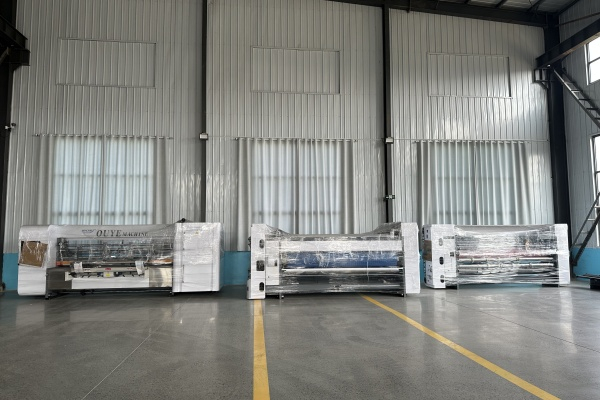

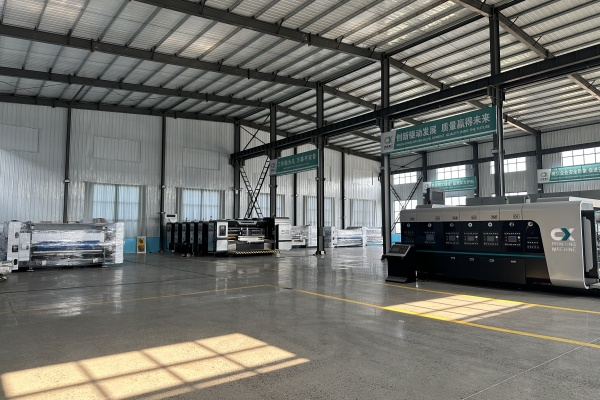

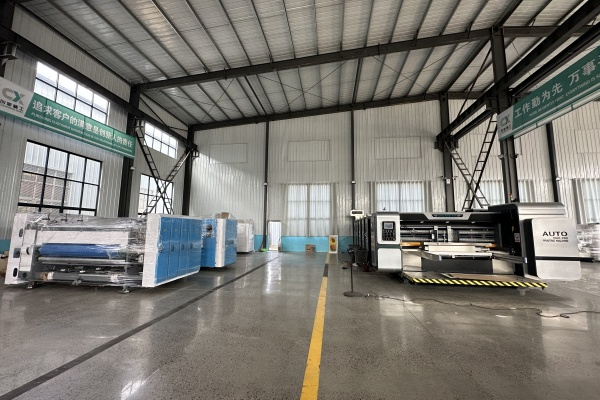

Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?

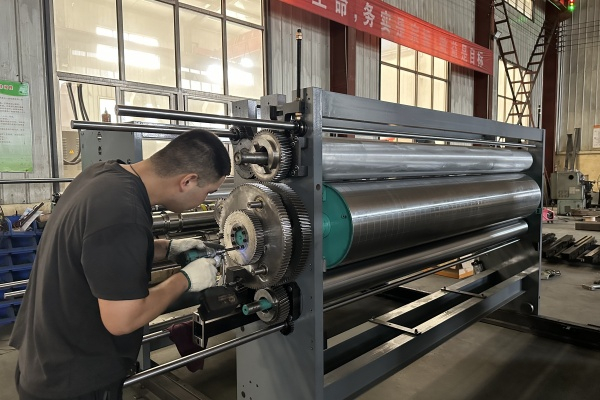

A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.

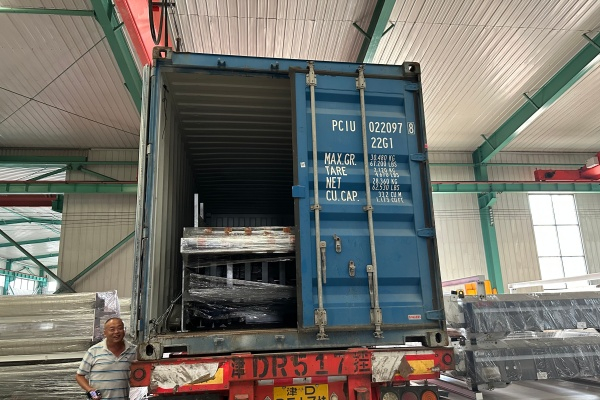

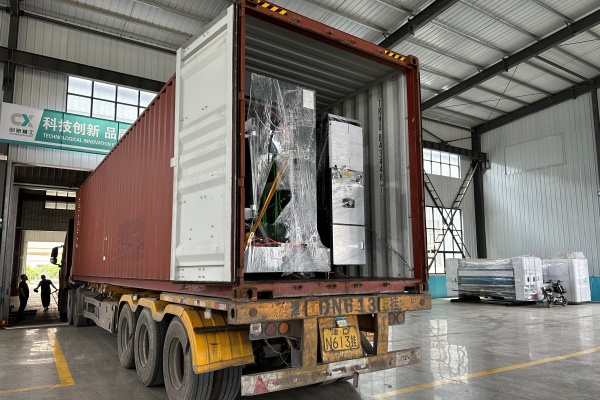

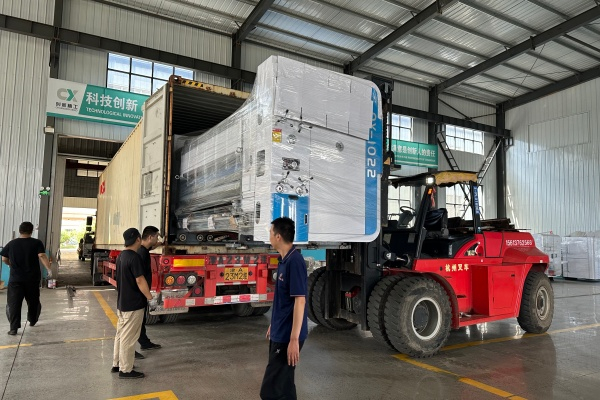

Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
