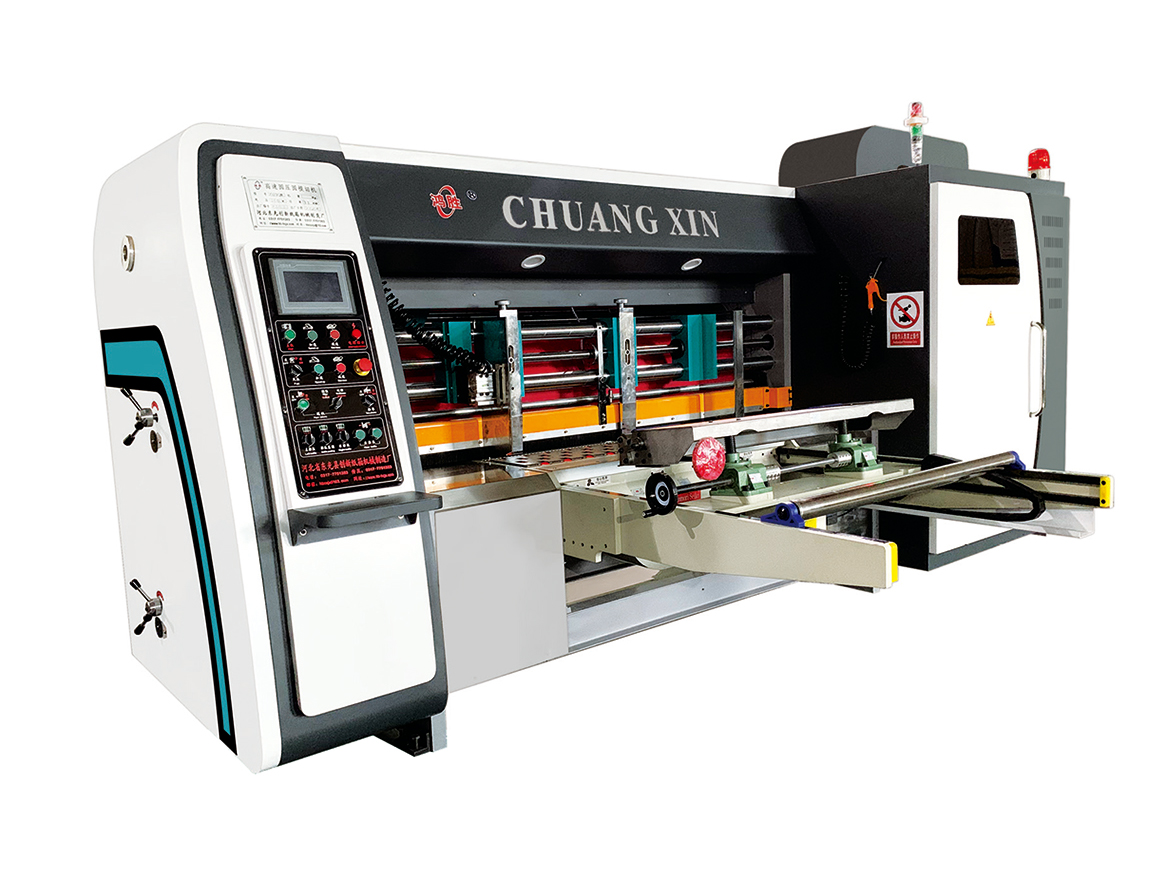

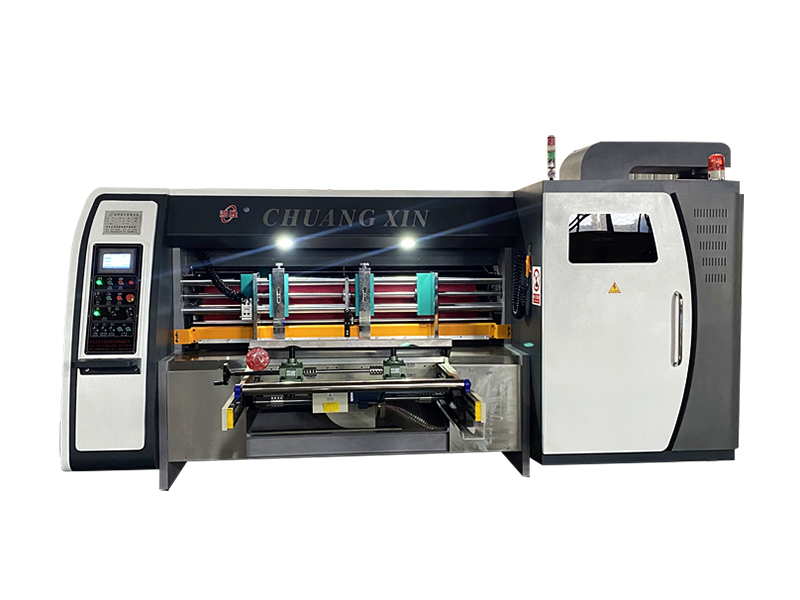

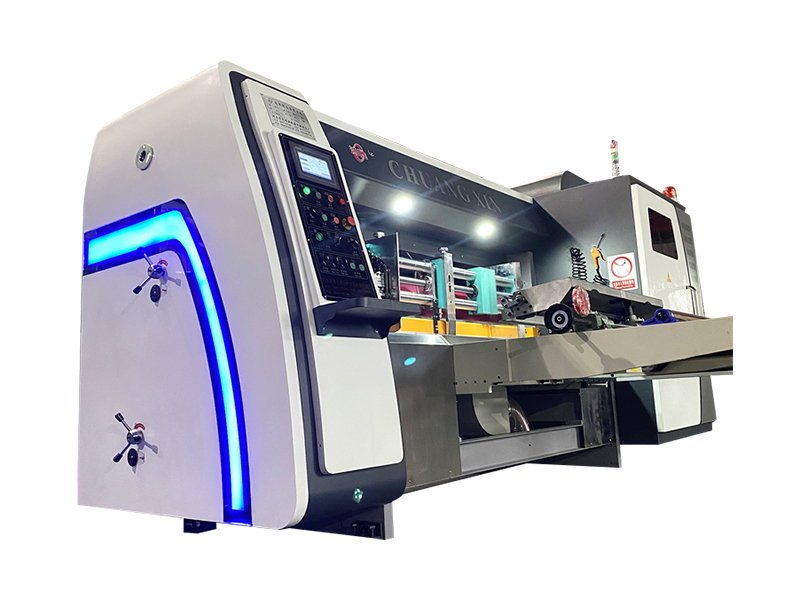

The OUYE series automatic rotary slotter machine is designed for creating unique carton boxes in high volumes. Capable of producing multiple boxes in one operation, it's suitable for manufacturing boxes in various shapes and sizes. Its advanced rotary die-cutting technology ensures precision and speed, making it ideal for businesses aiming to enhance their packaging production capabilities with efficiency and versatility.
Model | OY-1421 | OY-1425 | OY-1625 | OY-1628 |
Max. cardboard size (mm) | 1400×2100 | 1400×2500 | 1600×2500 | 1600×2800 |
Min. cardboard size (mm) | 360×600 | 360×700 | 420×600 | 420×600 |
Min. die cutting size (mm) | 1350×1900 | 1350×2400 | 1550×2400 | 1550×2700 |
Speed (pcs/min) | 150 | 140 | 120 | 120 |
Cardboard thickness (mm) | 2-8 | 2-8 | 2-8 | 2-8 |
(Size can be customized according to customer requirements)

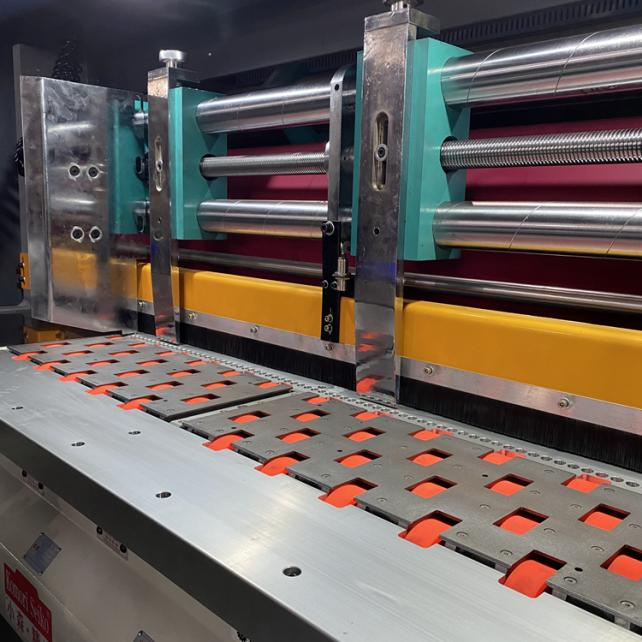

The OY series automatic rotary die cutter is used for making special cartons. This rotary die cutting machine employs advanced lead edge feeder with suction hold-down device. This feeding method boasts faster speed, high accuracy and lower failure rate as compared with back kicking feeding way.
Thanks to this best-in-class feeder, both continuous and skip feeding can be achieved.
The carton making machine is equipped with IR number counter that allows you to know production quantity clearly. Alarm bell make operation safer.

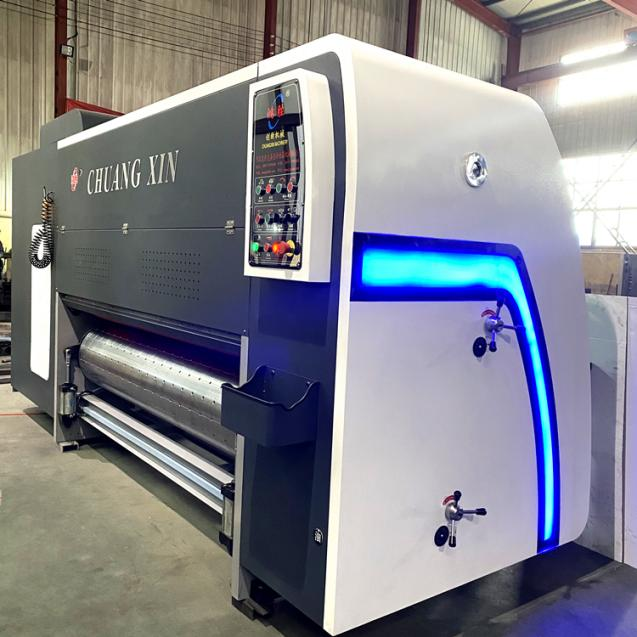

The die cut roller of this automatic rotary die cutter is made of superb quality steel. It has been processed by balance alignment and hard chrome plating treatment.
When feeding starts, the die cut roller will rise pneumatically and touch the cushion roller; when feeding stops, it will automatically down.
The rubber cushion is extremely endurable and easy to install and disassemble.
The cushion roller comes with automatic linear speed compensation mechanism which enables the rubber cushion to be worn uniformly. Equipped with repair system, the rubber cushion can serve for a long time and make die cutting beautiful.
The automatic rotary die cutter is provided with a cam-type mechanical device that allows the cushion roller to move left and right about 40mm and thereby increase its service life.
The die cutting knife phase adjustment is controlled by computer or motor.
Lateral movement of the die cutting knives can also be adjusted by computer or motor. The adjustment range is ±5mm.
This series automatic rotary die cutter boasts speed compensation device which makes sure that all boxes enjoy the uniform size.
Spray lubrication system can prolong the service life of gears.
Control system is imported from world famous manufacturer. For example, the low voltage electric appliance is introduced from Simens. Main motor adopts frequency converting control, thus saving 30% power.
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
