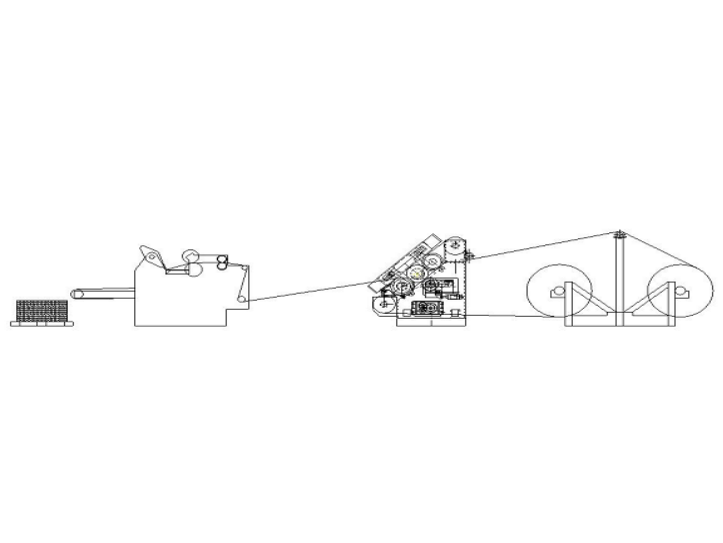

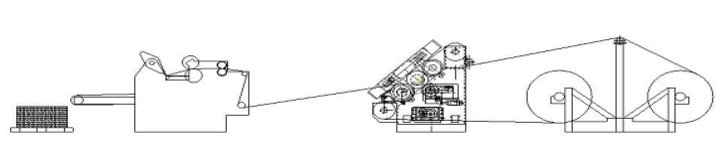

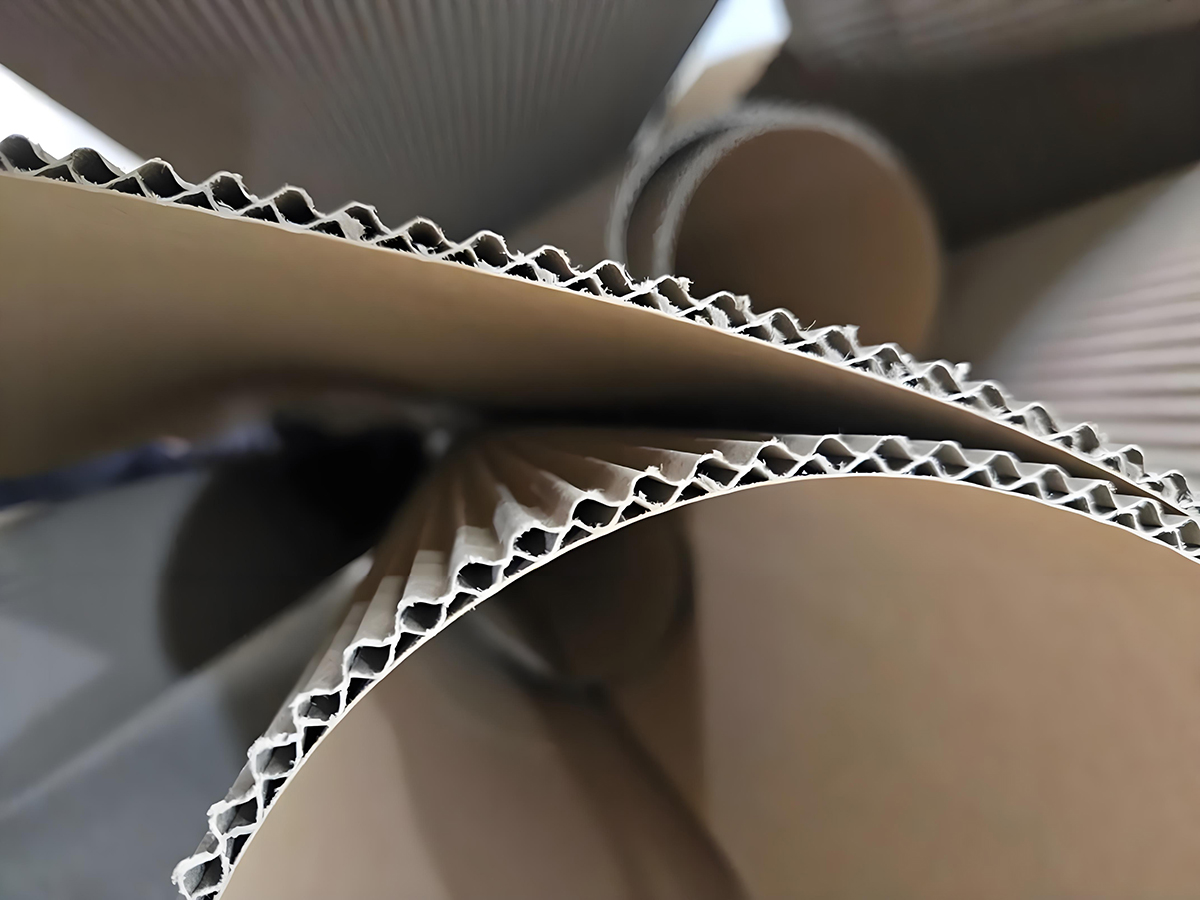

Our high speed 2-ply corrugated cardboard production line integrates a hydraulic mill roll stand, pre-heater, single facer corrugator machine, and NC slitter scorer cut off stacker machine for efficient and high-quality cardboard production. This cardboard corrugating machinery combines stability, precise temperature control, accurate corrugation, and computerized cutting and stacking, making it ideal for high-speed production of high quality 2-ply corrugated cardboard, essential for diverse packaging needs.
Model | Speed (m/min) | Size (mm) |
OY-1400-2 | 120/150/180 | 1400 |
OY-1600-2 | 120/150/180 | 1600 |
OY-1800-2 | 120/150/180 | 1800 |
OY-2000-2 | 120/150/180 | 2000 |
OY-2200-2 | 120/150/180 | 2000 |
OY-2500-2 | 150/200/180 | 2500 |

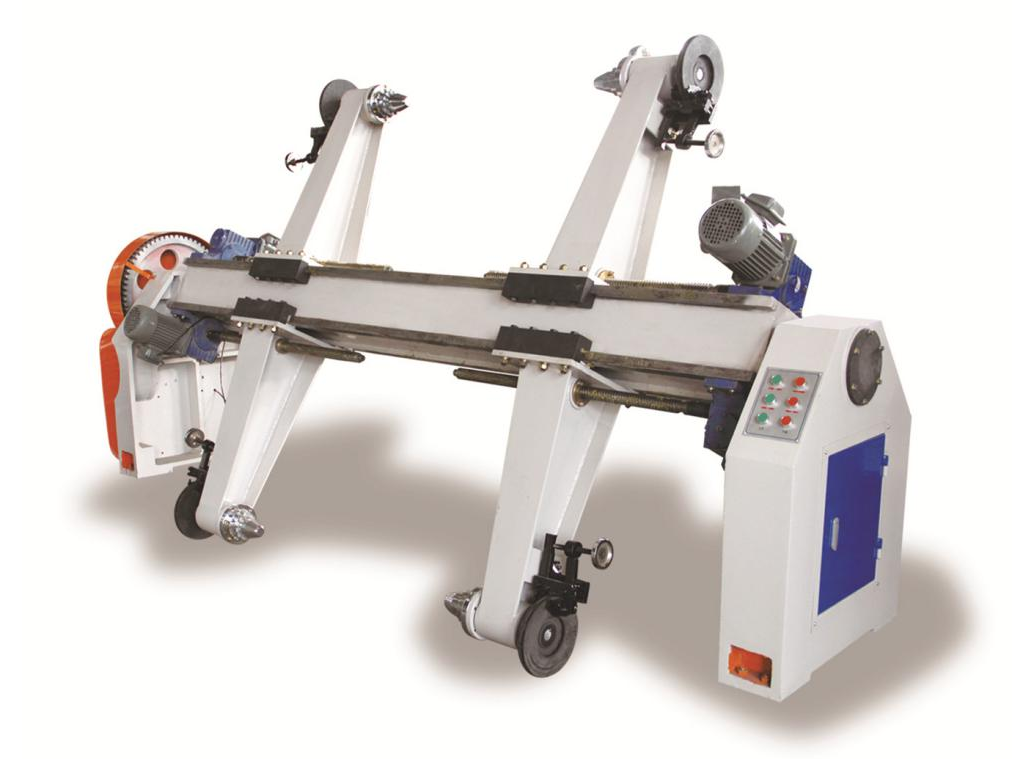

OY-B Series Electric Shaftless Mill Roll Stand（Optional equipment）
That is the shaftless mill roll stand which is divided into electric and hydraulic types. Firstly, allow me to introduce the electric one to you. Our ZJ-F electric shaftless mill roll stand is used for supporting and fixing the paper rolls.

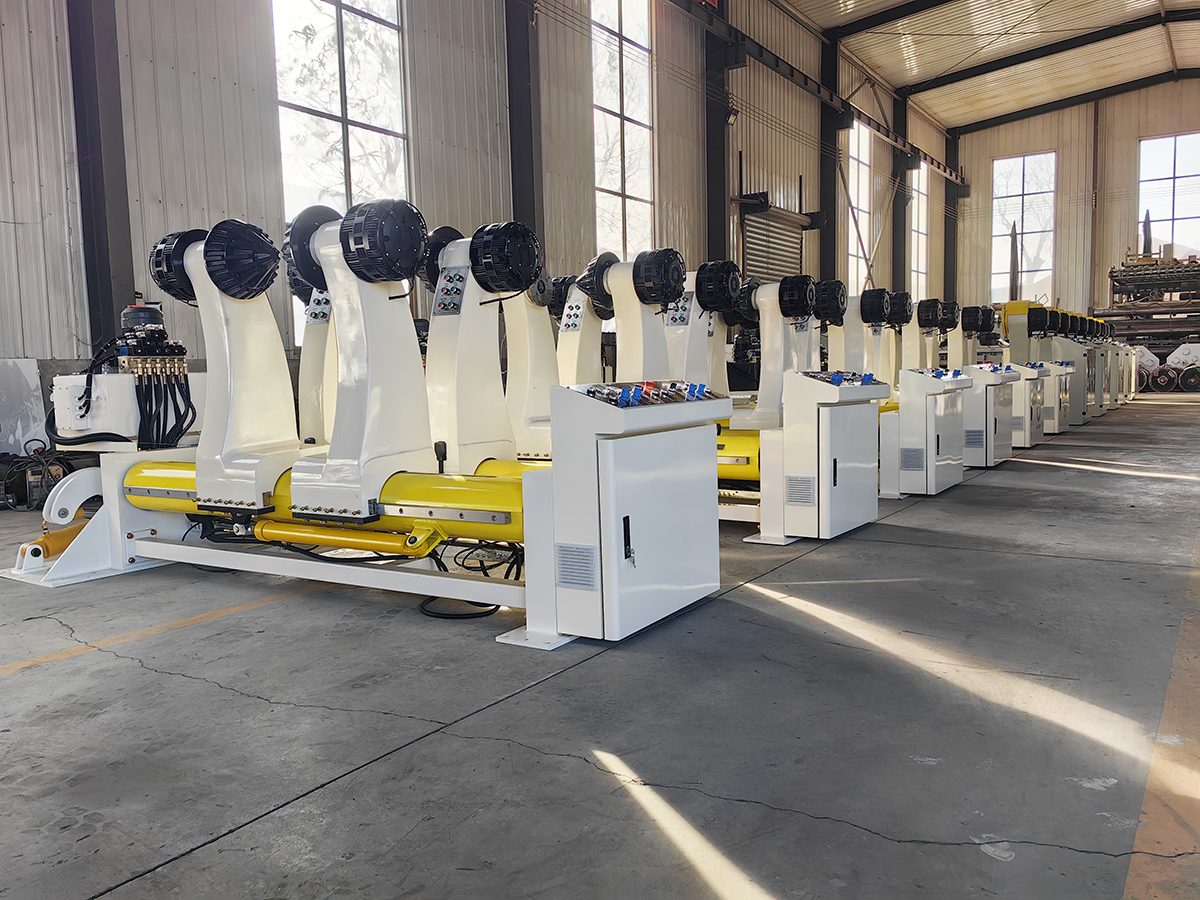

OY-B Series Hydraulic Shaftless Mill Roll Stand（Optional equipment)
The hydraulic shaftless mill roll stand, similar to the electric one, is also used for supporting and fixing fluting paper rolls. The arms, however, is driven by hydraulic pressure, clamping, lifting and adjusting the paper rolls.

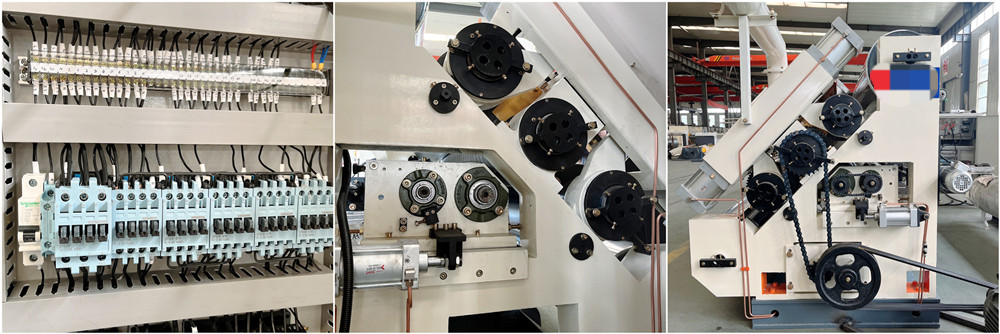

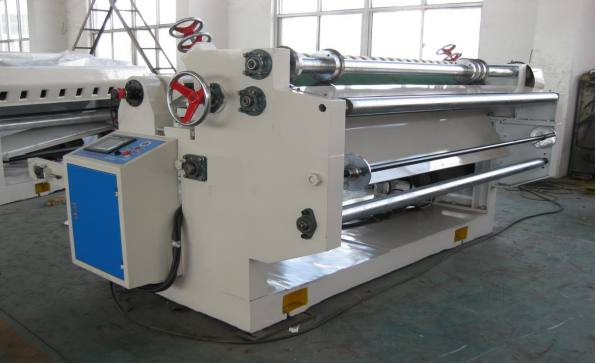

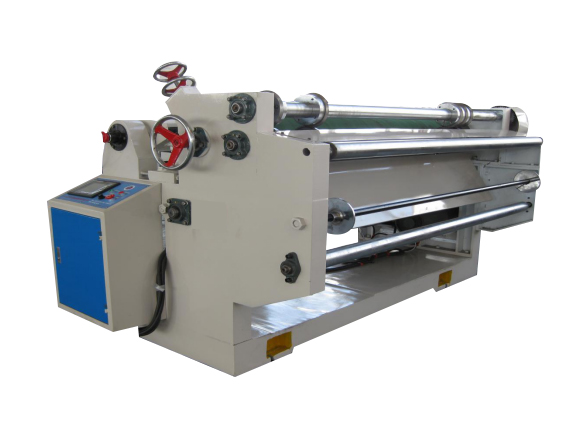

Effective Width | 1600mm | ||
Corrugated Rollers | Dia. 280mm with a drum. 48CrMo high quality alloy steel,rigidity HRC58°-60°The surface of corrugated roller is whetted and plating chrome, with heat treatment | ||
Preheater roller | Diameter:320 mm, 45 # seamless pipe | ||
Press Roller | 269mm,surface is whetted and plating chrome, pneumatic to control the up & down, materials: 45# steel,quenched and tempered | ||
Glue Roller | φ215mm, surface of the roller is with 25 line concave cross marked | ||
Diameter of glue scrach roller | 110mm, surface of the roller is s whetted and plating chrome | ||
Style of Transmit Paper | Chain drive | ||
Style of Control Roller | Pneumatic control the upper roller, pressure roller and glue roller | ||
Lubrication | Anti-high temperature lube to lubricate the Corrugated Roller and Press Roller | ||
Built-in Corrugated Roller | Profile A,B,C,E,F Flute (Other Flutes are optional) | ||
Power of Draw Fan | 7.5kw | ||
Drive | Drive Motor with frequency inverter:7.5 kw | ||
Power of Silica Tube | Up Corrugated Roller | 4 pieces | 16kw |
Down Corrugated Roller | 4 pieces | 16kw | |
Pressure Roller | 4 pieces | 16kw | |
Pre-heater Roll | 4 pieces | 16kw | |
OY-B SeriesRotary Cutter
Storing 99 sets of orders, change the order quickly and accurately with non-stop machine, and realize computer networking to easy for production management
The cutter shaft transmission gear is installed with an eccentric shaft to realize no backlash transmission and high transmission precision
The knife use an inlaid steel blade,the fixed seat blade has a flat structure, which is more stable, more suitable for cutting high weight and high toughness cardboard, small shear force and long blade life
The paper-feeding roller is covered with anti-slip material, which is more wear-resistant and accurate in size
The machine base and wallboard use high-grade gray cast iron,with high strength and strong vibration resistance
The servo controller controls the motor drive, and the 5.7-inch color touch screen display
Automatic stacker（Optional equipment）
1. The Max. Speed of coloection paper:70m/min
2. The Max. Length of collection paper :1200mm
3. This machine can be collected at the same time at most 4 pieces of paper
4. The machine can realize count automatically, automatic stacking, automatic stamping
5. Stacker hight:100mm
6. The machine have special leading edge Aligning institution
7. The automatic stacking machine cost is low,Small footprint, save manpower,Is the best choice of medium-speed fitting machine.
8. Floor area:3.8*1.9m
