Model | CX-2600 | |
Glue the box | Nail box | |

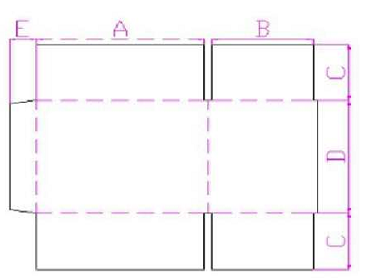

Max. cardboard（A+B）*2(mm) | 2600 | |
Min. cardboard（A+B）*2(mm) | 420 | 900 |
Maximum carton length A mm | 900 | |
Minimum carton length A mm | 130 | 270 |
Maximum width of the carton B mm | 650 | |
Minimum width of the carton Bmm | 80 | 180 |
Maximum paper height（C+D+C）(mm) | 1200 | |
Minimum paper height（C+D+C）(mm) | 170 | 300 |
Maximum box cover size C (mm) | 350 | |
最小摇盖尺寸C(mm) | 50 | |
最小高度D(mm) | 100 | |
1. Air suction paper feeding more accurate.
2. Carton forming speed is fast.
3. Secondary indentation to make origami more accurate.
4. Good size control and reduced waste.
5. Second correction, completely eliminate the scissors port.
6. The nailing department is well controlled and reduces waste.
7. Accurate counting.
8. The beater makes the carton shape well.
9. Bundle out the pile accurately and neatly.
10. Secondary indentation: The carton indentation paper is fixed for the second time to make the origami position more accurate, so that the carton is not broken and the crease is beautiful.
11. Secondary rectification part: completely eliminate the size of the mouth, the pass rate is higher.
12. Nail part: pneumatically control the carton before and after nailing to eliminate the scissors.
13. Receiving and shaping department: The finished box is automatically counted, the shaping is piled up neatly, and the code is output.
14. Packing Department: Packing speed is fast and beautiful.
PAPER FEEDING UNIT
1. The paper feeding unit can be independently controlled, simple and reliable operation.
2. Suit cardboard thickness 2-8mm
3. Frequency speed adjust.
4. Quickly adjust box height and length
GLUING AND FOLDING UNIT
1. Uniform gluing,no fault,and save glue.
2. Automatically fold the paperboard accurately.
3. Double pressing correction device.
STITCHING UNIT
1. The size is controlled by all-electri method. lt only takes 2-3 minutes to change the size.
2. Computer to set automatic stitching distance.

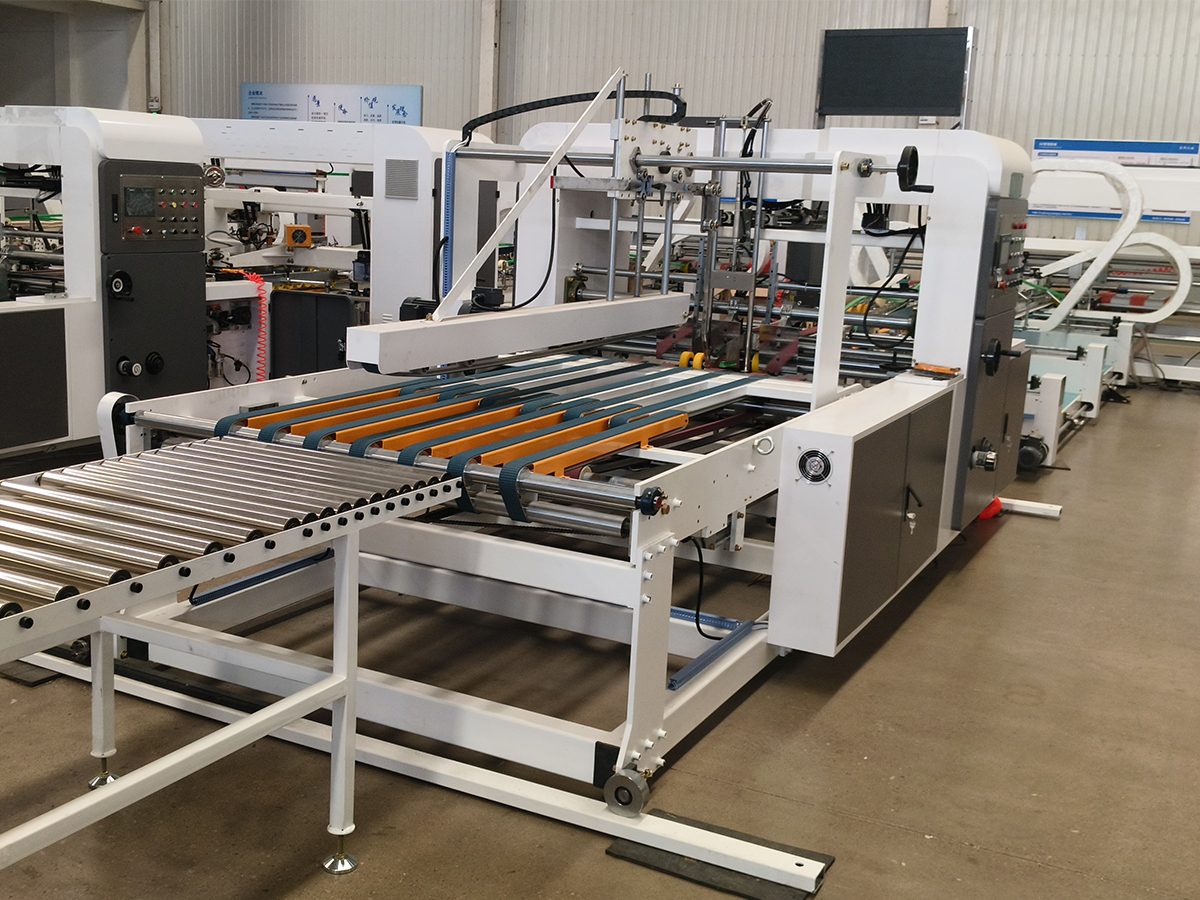

STACKING OUTPUT UNIT
1. Digital control,simple operation.
2. Automatic counting,accurate output.
3. With the function of rectifying deviation,the deviation can be adjusted.
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
