Model | OY-2000 | OY-2400 | OY-2600 |
Size A (mm) | 70-880 | 80-880 | 80-880 |
Size B (mm) | 340-2000 | 700-2400 | 700-2600 |
Size C (mm) | 100-840 | 160-840 | 160-840 |
Size D (mm) | 260-1200 | 260-1200 | 260-1200 |
Install size | 3500×14000 | 4000 ×15000 | 4000 ×16000 |
Power | 10kW | 12kW | 12kW |

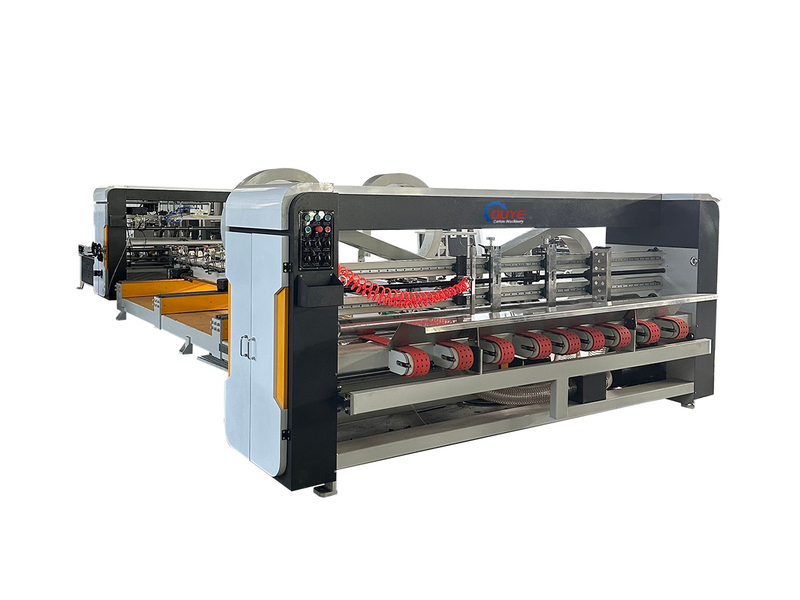

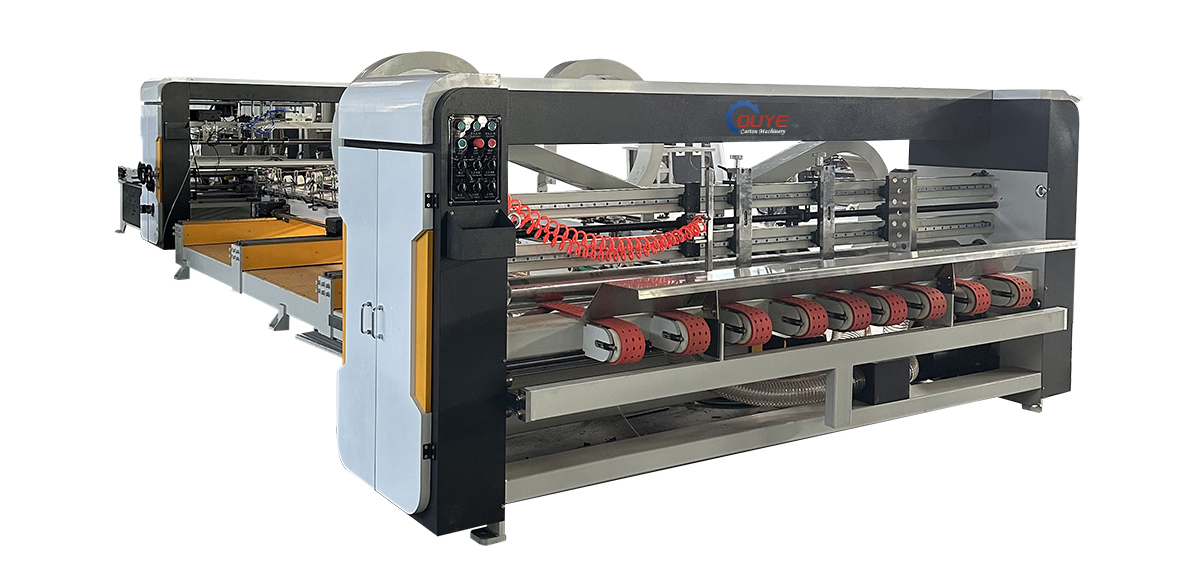

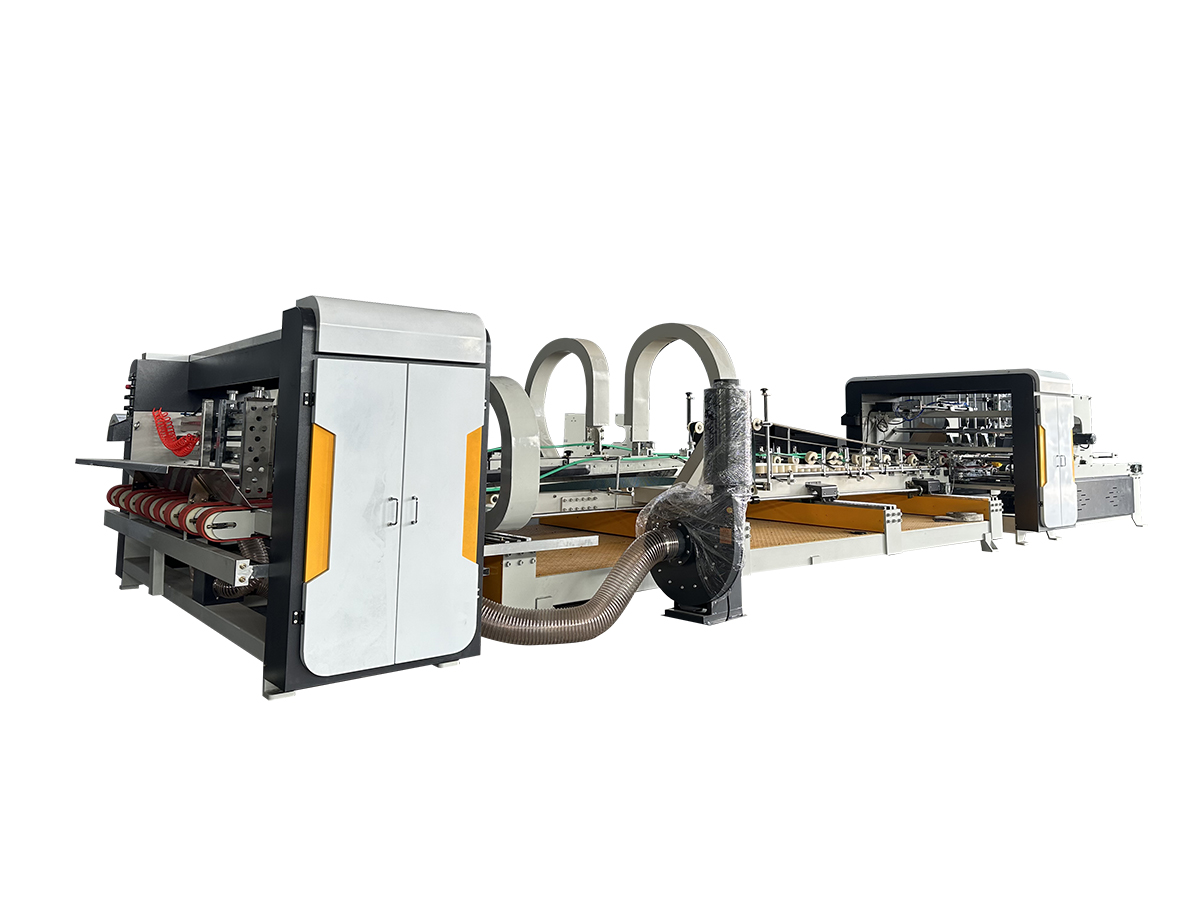

Having designed and manufactured folder-gluer lines for many years, OUYE has a wealth of experience in this field. Our automatic carton folder gluer utilizes adhesive to bond corrugated boxes. The whole machine consists of three sections, namely vacuum feeding unit, folding gluing unit and counting stacking unit. The an integrated automatic bundling system, compatible with automatic bundling operations.
The automatic carton folding and gluing machine comes with variable frequency motor for speed regulating and PLC touch screen for set-ups, thus ensuring easy operation and stable running. With maximum speed of 150m/min, the cardboard box making machine is ideal for large and medium scale carton plants.
Feeding Unit
Vacuum suction feeding system makes feeding more stable and smooth.
High quality electromagnetic clutch and brake is utilized for controlling the feeder. The feeder comes with independent drive, ensuring easy operation.

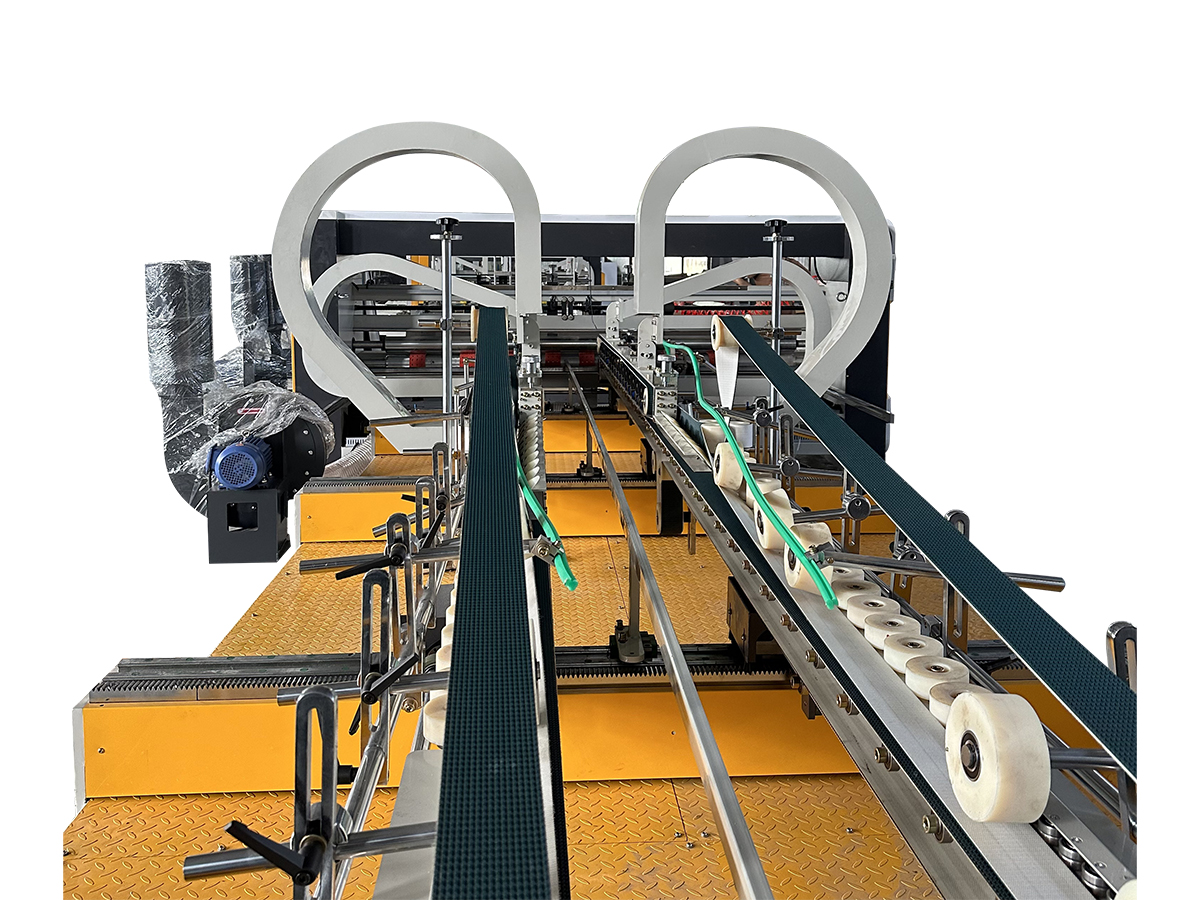

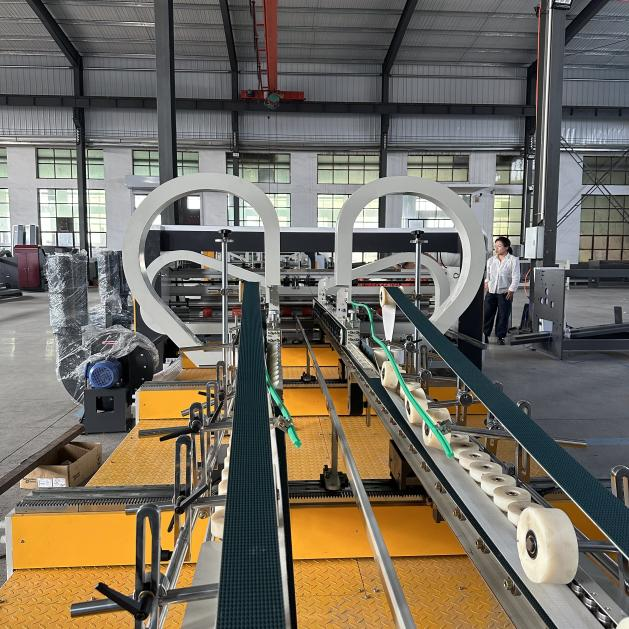

Folding Gluing Unit：
The folding gluing unit is the major part of our automatic carton folder gluer. It boasts simple structure, high reliability and adjustable glue amount.
The superior transfer belt is brought in from the best in class manufacturer in the world, hence ensuring top quality.
Creasing wheel is adjustable, making it suitable for the paperboards of 2-8mm thickness.

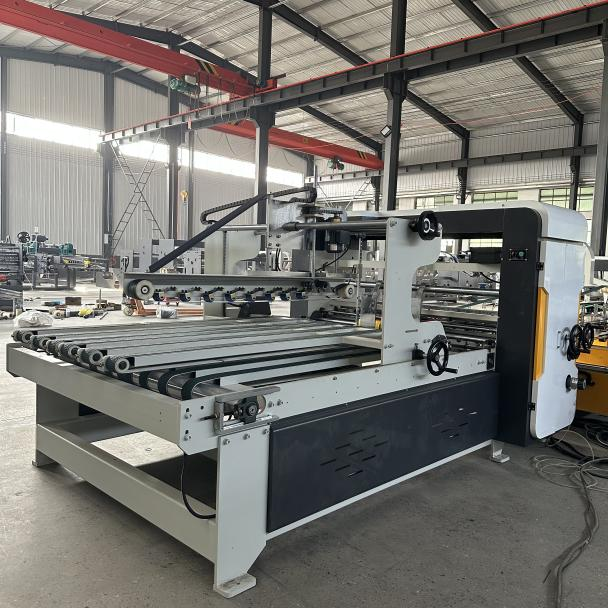

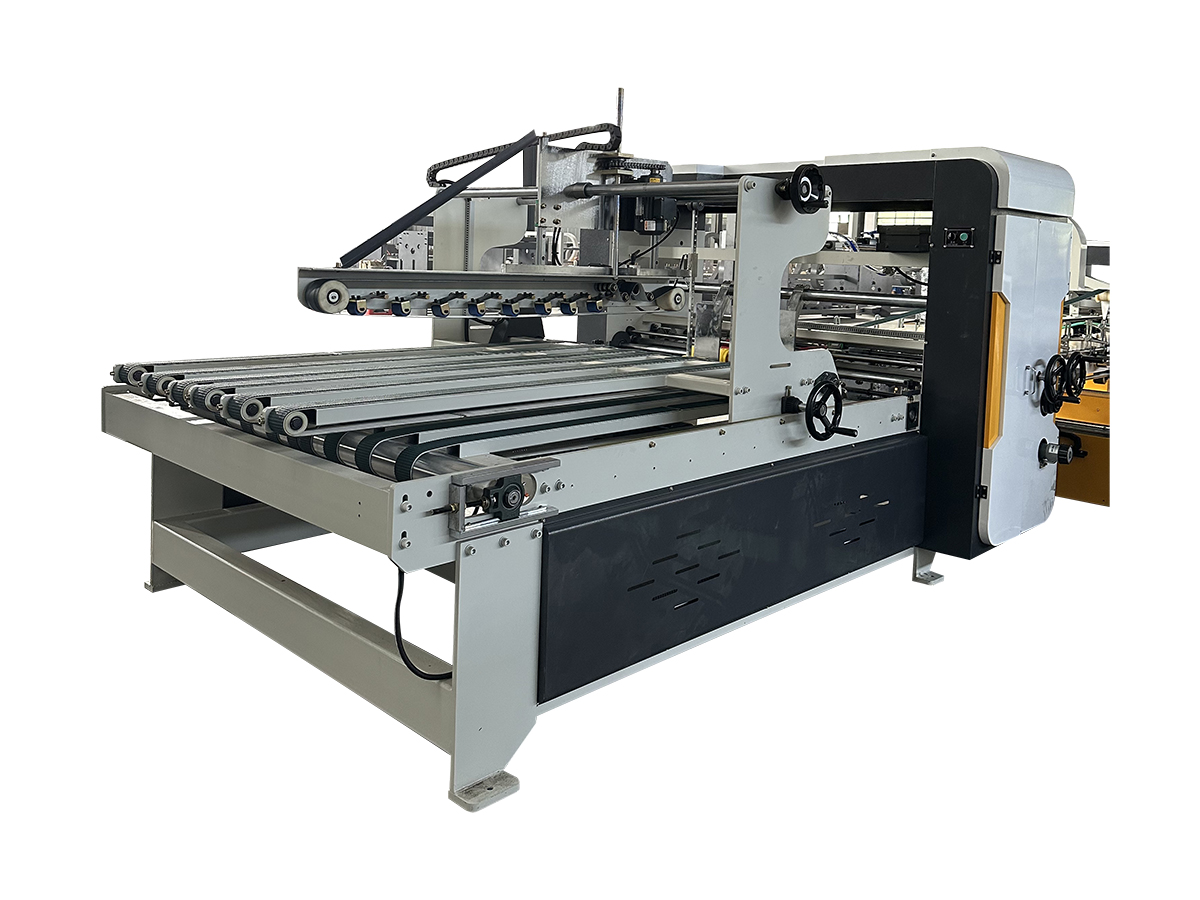

Counting Stacking Unit
OUYE automatic carton folder gluer is designed with an easily operated and highly reliable stacker. It also features counting function.
PLC touch screen control method enhances easy operation and reliability, achieving non-stop stacking.
The stacker comes with automatic correcting function.
Output after counting is controlled pneumatically, ensuring high stability.

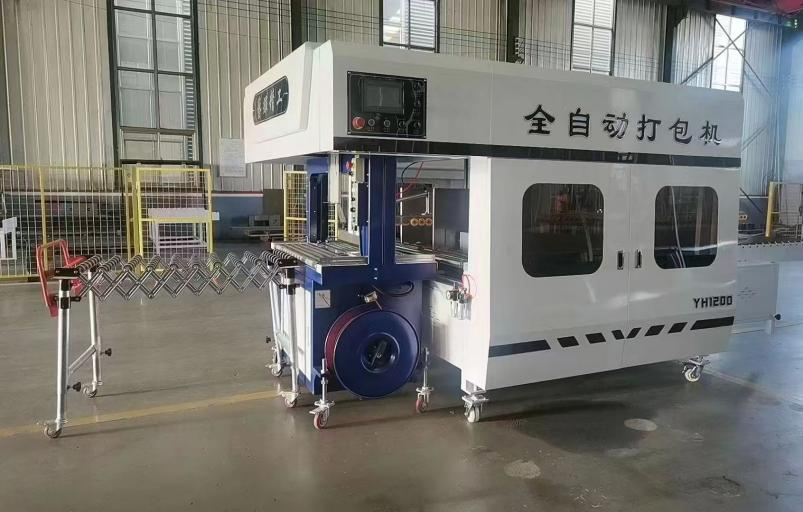

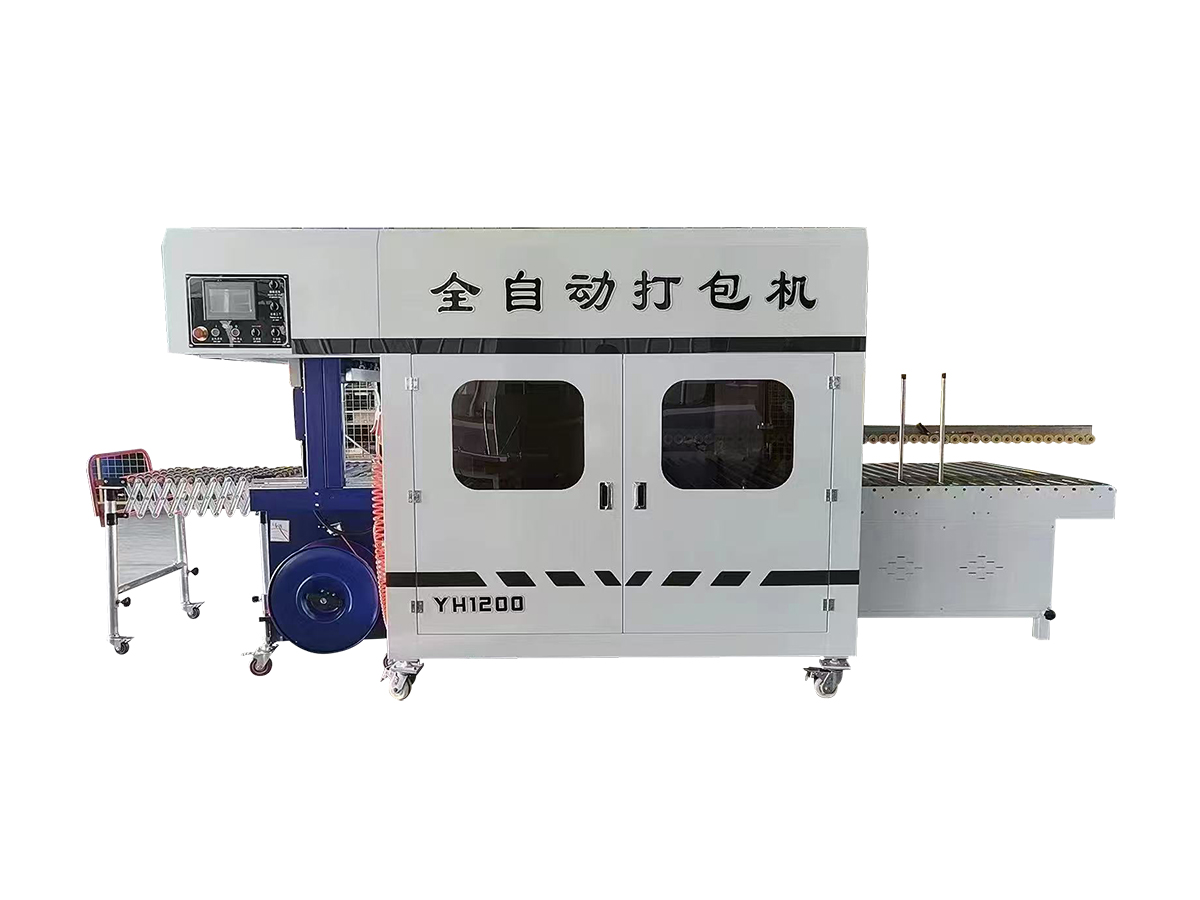

Automatic Bundling Section
Uses polypropylene belts (dimensions: 5/6mm x 0.6mm), offering a cost-effective solution. This choice of material not only reduces expenses but also saves on labor costs, streamlining the bundling process.
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
