In the last decade, I've watched open-top corrugated shelf boxes evolve from simple display trays into one of the most strategic packaging formats for retail and e‑commerce brands. As both a packaging engineer and a daily user of carton packaging equipment, I've seen how the right box making machine can turn low-volume, highly customized shelf box orders from a headache into a profit center. [aopackmachine]
This article dives deep into how modern carton box making machines produce open-top corrugated shelf and display boxes efficiently, what technical features really matter, and how packaging plants and OEM partners can leverage this technology to win more short-run business. [eureka-machinery]
An open-top corrugated shelf box (also known as a display box, shelf-ready tray, or SRP) is a carton where the top is fully open so that products can be directly presented on retail shelves or in e‑commerce fulfillment areas. [packagingtechtoday]
Unlike standard RSC cartons, open-top display boxes must balance brand visibility, structural strength, and easy access. They often feature:
- Low front wall for product visibility
- Reinforced sides and back for stacking strength
- Pre-defined tear lines or perforations (for SRP boxes)
- Custom printing, logos, and graphics for branding
For packaging converters and brand owners, these boxes are crucial in:
- Supermarkets and chain retail
- Electronics and accessories
- Cosmetics and personal care
- Small appliances and housewares
- Cross-border e‑commerce and DTC brands
However, the challenge has always been the same: how to produce many sizes and designs in small to medium quantities, profitably. [aopackmachine]
From the plant floor perspective, open-top shelf and display boxes are typically ordered in short runs, with frequent spec changes driven by marketing campaigns, seasonal promotions, and e‑commerce SKUs. [packagingtechtoday]
Traditional production methods face several issues:
- High die-cut tooling cost for each new design
- Long setup and changeover time on conventional flexo folder gluers
- Significant paper waste due to non-standard sizes
- Difficulty handling last-minute or rush orders
For many box plants, this leads to:
1. Rejecting small orders because they are not profitable
2. Overproducing to offset setup costs, leading to inventory and obsolescence
3. Slower response to brand owners and OEM clients

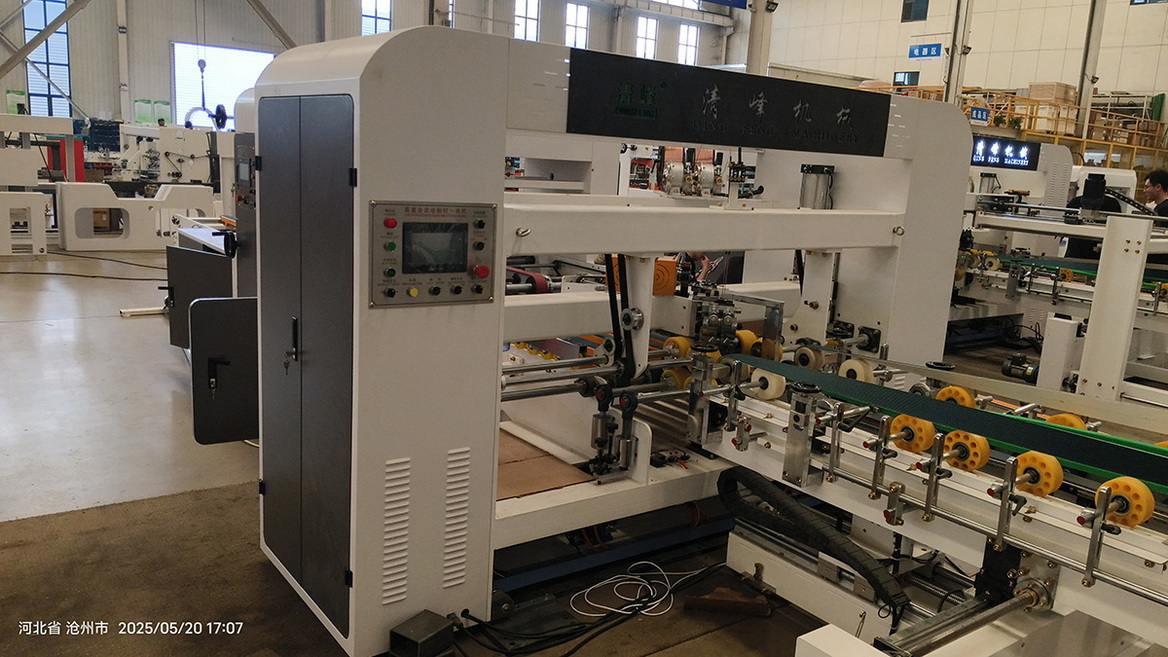

Modern fully automatic carton box making machines directly target this pain point with on-demand, no-die production of customized corrugated boxes, including open-top shelf and display styles. [aopackmachine]
Machines in the BM2508‑Pro / BM2508‑Plus class integrate board feeding, slitting, creasing, slotting, cutting, and optional handle-hole die cutting in one compact line. [aopackmachine]
Typical core capabilities include:
- 150+ box styles (regular cartons, FEFCO styles, trays, shelf boxes, partitions) [aopackmachine]
- No traditional die mould required – box dimensions are input via HMI recipes
- Quick order changeover in about 1–6 seconds, making it ideal for short runs and frequent spec changes [youtube]
- On-demand production – boxes are produced only when needed, reducing inventory and waste [aopackmachine]
This is exactly what open-top shelf box production demands: flexible formats, zero tooling, and rapid switchovers. [aopackmachine]
Below is a simplified, expert-level view of the processing workflow on a fully automatic box making machine for open-top corrugated shelf/display boxes: [eureka-machinery]

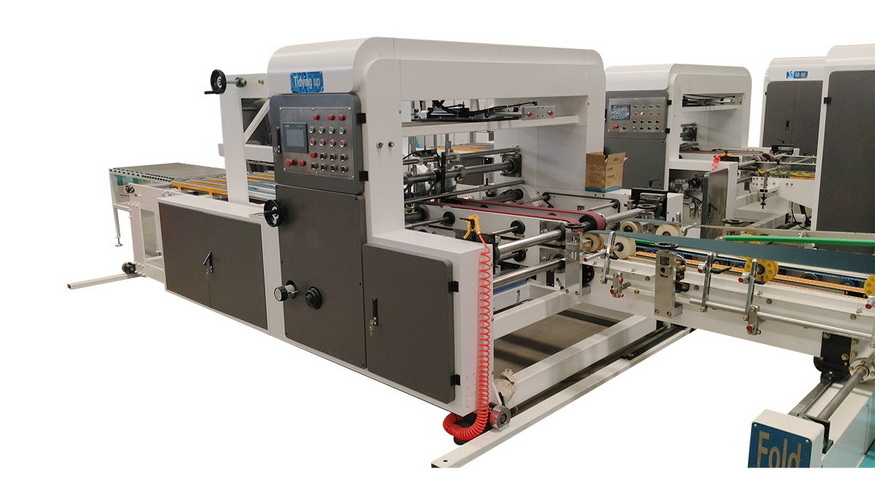

1. Corrugated Board Feeding
- Pre-cut corrugated sheets are fed automatically into the machine.
- Servo-controlled feeding ensures accurate registration for subsequent cutting and creasing.

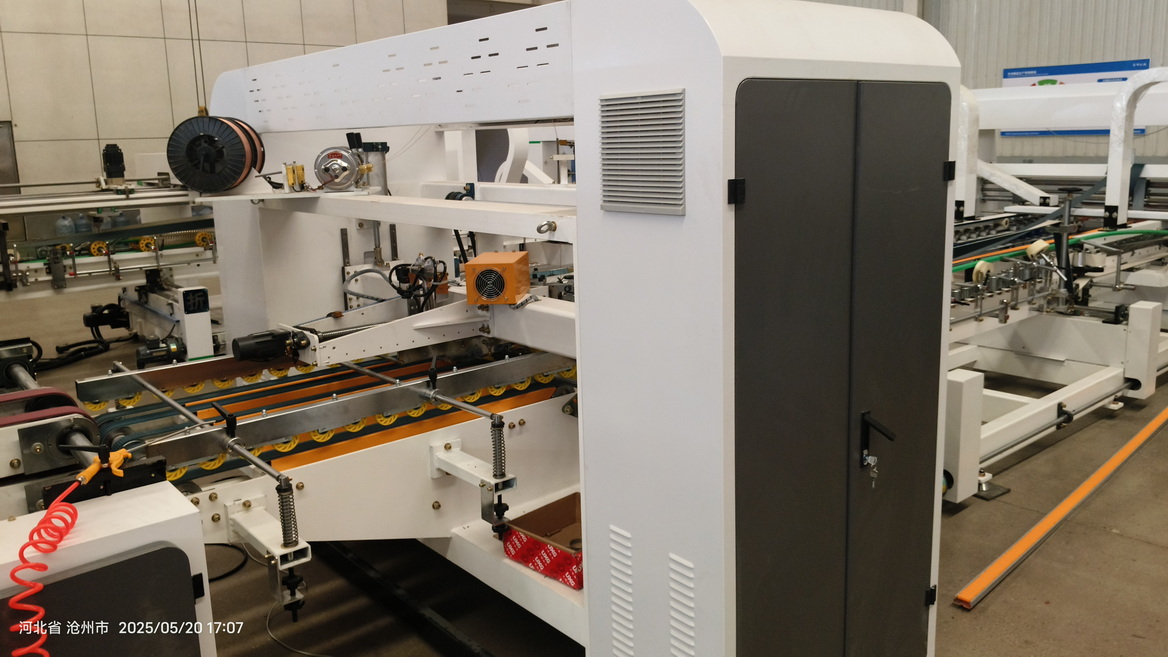

2. Horizontal Slotting and Scoring
- The machine performs horizontal slotting and scoring to define panel heights and fold lines, essential for the open-top front and higher back wall. [eureka-machinery]
3. Vertical Slitting and Creasing
- Vertical tools create side panels and define width, depth, and corner flaps.
- Creasing patterns are tailored for shelf trays, including reinforced corners and stacking shoulders.
4. Horizontal Cutting (Length Setup)
- The sheet is cut to the exact box length, minimizing trim waste versus traditional cutoff systems. [eureka-machinery]
5. Optional Handle Hole or Display Cutouts
- Some machines offer online die-cutting of handle holes or simple display windows on both sides of the box, supporting retail-ready trays. [aopackmachine]

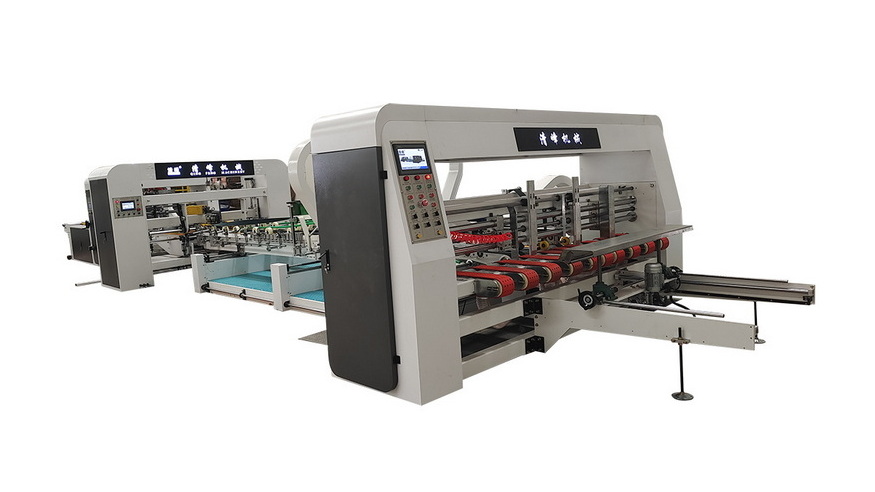

6. Stacking and Delivery
- Finished blanks are stacked neatly and ready for folding and gluing, either offline or integrated with downstream equipment.
From an operator's point of view, most of this is controlled via recipe-based programs – dimension changes are done on the touchscreen, rather than mechanically changing tooling. [aopackmachine]
When evaluating carton packaging equipment for open-top corrugated shelf boxes, these technical points make a practical difference on the shop floor:
Open-top display boxes often support large consumer goods, household items, or multiple inner packs, so big-size carton capability is crucial. [aopackmachine]
Look for machines designed specifically for:
- Big-size cartons and shelf trays
- Large format corrugated sheets
- Stable board feeding even at maximum dimensions
The profitability of shelf box production in a modern box plant depends heavily on changeover time.
Machines like BM2508‑Pro are reported with:
- Order changeover time of about 1–6 seconds, using servo adjustments and recipe recall [youtube]
- Capability to handle 100+ short-run orders in a single shift, thanks to high automation and minimal setup waste [tiktok]
From a plant manager's perspective, this directly translates into:
- Higher machine uptime
- Ability to accept more SKUs and micro-orders
- Faster lead times for key customers
A multifunctional tool set enables flexible design of open-top shelf boxes without extra tooling:
- Horizontal slotting and scoring
- Vertical slitting and creasing
- Horizontal cutting
- Die-cutting handle holes on both sides (for easy lifting in stores and warehouses) [aopackmachine]
This versatility is especially valuable for OEM manufacturers and brand owners who need different formats for different markets and channels.
Based on industry deployments and case reports, automatic box making machines for open-top shelf boxes are used across a wide range of sectors: [packagingtechtoday]
- Furniture and homeware – heavy or bulky items require strong corrugated trays
- Hardware and industrial accessories – multiple SKUs in one display box
- E‑commerce logistics – on-demand custom boxes to reduce void fill and damage
- Food and beverage secondary packaging – shelf-ready trays and multi-pack displays
- Electronics and appliances – tailored display boxes for promotions and seasonal campaigns
These industries value:
- Customized dimensions to reduce damage and void space
- Shorter lead times and the ability to respond quickly to promotions
- Lower inventory risk by producing only what is needed
From both my personal consulting experience and publicly available project cases, I see three main business benefits when plants deploy on-demand box makers for open-top shelf and display boxes: [aopackmachine]
Many plants previously treated small, mixed orders for display boxes as unprofitable "trouble orders."
With on-demand machines:
- Setup cost per order drops sharply, since there is no die tooling and little manual setup
- Plants can accept more SKUs and long-tail customers
- Short-run orders become a profitable niche, not a burden
Fully automatic machines allow many plants to:
- Operate with one operator per machine in many scenarios [youtube]
- Reduce dependence on highly skilled setup technicians
- Cut waste thanks to precise dimensioning and fewer misfeeds
When processing 150+ box styles with one machine, the ROI is often driven by both labor savings and higher throughput. [aopackmachine]
For OEM-oriented factories and contract manufacturers, the ability to produce custom shelf display boxes on demand becomes a strategic advantage:
- Stronger relationships with overseas brand owners
- Capability to support small test orders for new products or markets
- Faster customization for local regulations and language variants
As an industry practitioner, I recommend focusing on these practical design principles when pairing carton packaging equipment with shelf-box-intensive customers:
- Keep front height low enough for visibility but not so low that products slip during transport.
- Reinforce back and side walls if the box must stack on-shelf.
- Use double scores or shoulders where additional stacking strength is needed.
- Optimize footprint to fit standard shelf depths and pallet sizes.
When designing for a specific box maker model, always:
- Respect min/max length, width, and height parameters as per the machine spec sheet. [aopackmachine]
- Avoid extremely narrow flaps that may cause feeding or creasing issues.
- Standardize a dimension family (e.g., fixed depth, variable width) to simplify recipes and changeovers.
- Ensure logotypes and key messages remain visible above the shelf line.
- Combine printed branding with the precise die-free cutting of the box maker to maximize the visual impact per SKU.
- Coordinate with retailers on facing count and shelf planograms to size boxes appropriately.
For plants or OEM factories considering investment in automatic box making machines for open-top shelf and display boxes, here's a comparison-style checklist.
| Factor | Why It Matters for Shelf Boxes |
|---|---|
| Box style library | Must support trays, displays, and open-top shelf boxes at minimum. (aopackmachine) |
| Changeover time | Under ~10 seconds is ideal for short-run, multi-SKU orders. (aopackmachine) |
| Max/min format size | Ensure it covers your largest and smallest shelf display SKUs. (aopackmachine) |
| Board grade compatibility | Ability to run various flute types and strengths. |
| Handle hole / cutout options | Critical for retail-ready trays and ergonomic handling. (eureka-machinery) |
| Integration potential | Can it link with printers, gluers, or automated packing lines? |
| Service & training | Local or regional support reduces downtime and ramp-up time. |
If your plant or OEM operation handles frequent small and medium orders for open-top corrugated shelf boxes, relying on traditional tooling-heavy processes will keep squeezing your margins.
By investing in a fully automatic box making machine with fast changeover, a broad box style library, and strong big-size capability, you can:
- Accept more high-mix, low-volume orders
- Lower labor and setup costs
- Deliver faster, more flexible service to overseas brand owners
Next step:
- Audit your current shelf box portfolio – list SKUs, order sizes, and changeover time.
- Compare those numbers with what a modern box making machine can deliver.
- Contact our engineering team to discuss whether an on-demand shelf box solution is suitable for your plant layout, product mix, and growth targets.
Q1: Can an automatic box making machine handle both regular cartons and open-top shelf boxes?
Yes. Modern machines with a large box style library can typically handle standard RSC cartons, trays, and various open-top shelf and display boxes from one platform. [eureka-machinery]
Q2: How many box styles can a BM2508‑Pro/Plus-class machine usually support?
Public sources report that these machines can process over 150 box styles, covering most common FEFCO and custom designs. [aopackmachine]
Q3: Is a die cutting tool still required for open-top shelf boxes?
For straight-edge shelf trays and many display boxes, no traditional die mould is required; the machine uses integrated slotting, slitting, and cutting tools. For complex shapes, optional simple die-cut features (like handle holes) may be used. [aopackmachine]
Q4: What kind of order size is ideal for on-demand box making machines?
They are optimized for short and medium runs, especially where there are many SKUs and frequent spec changes. High changeover speed allows multiple small orders to be processed profitably. [packagingtechtoday]
Q5: Are these machines suitable for e‑commerce logistics packaging?
Yes. On-demand box making is widely used to produce custom-sized cartons and trays for e‑commerce logistics, reducing void fill and damage while improving packaging efficiency. [packagingtechtoday]
