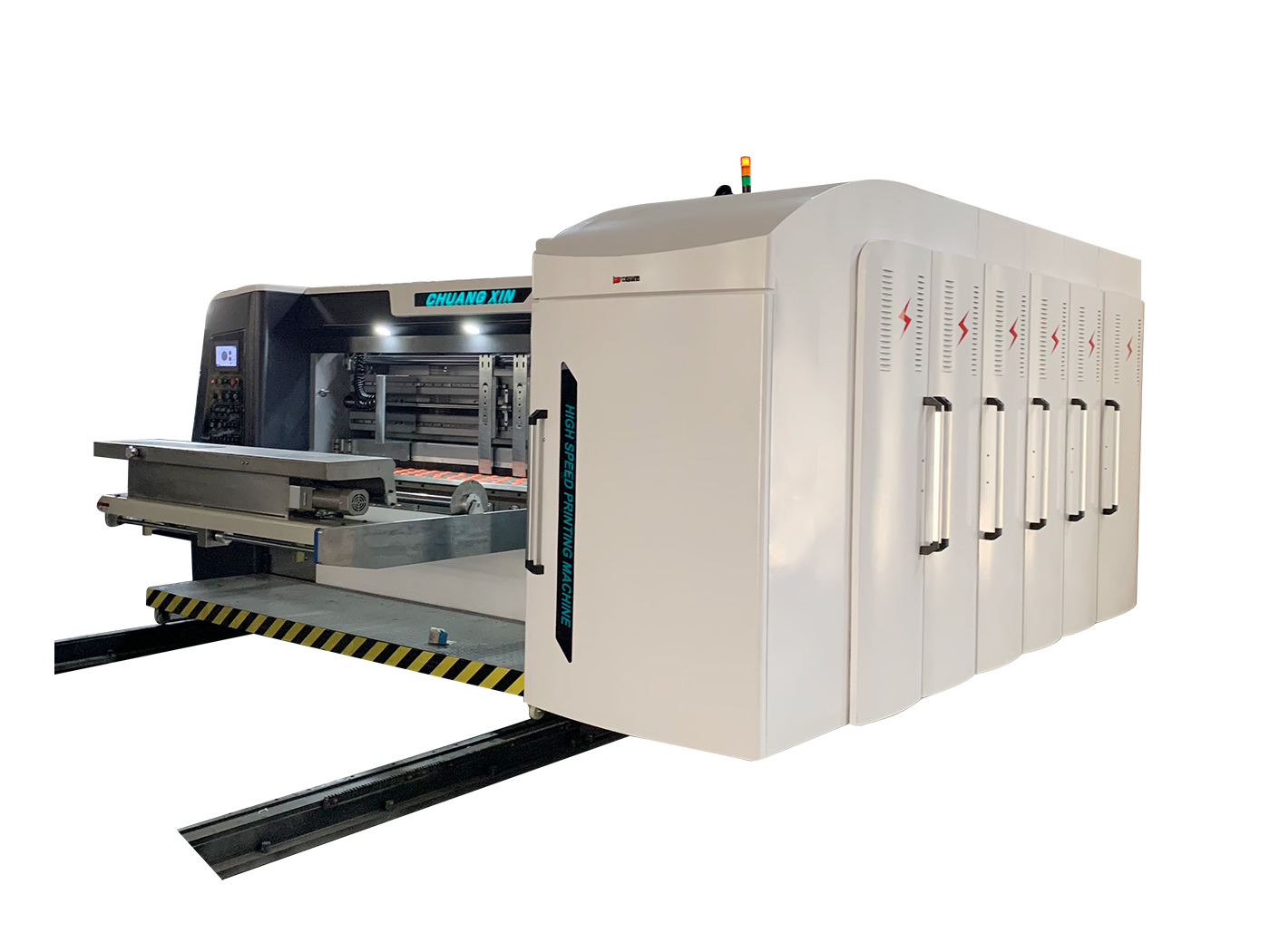

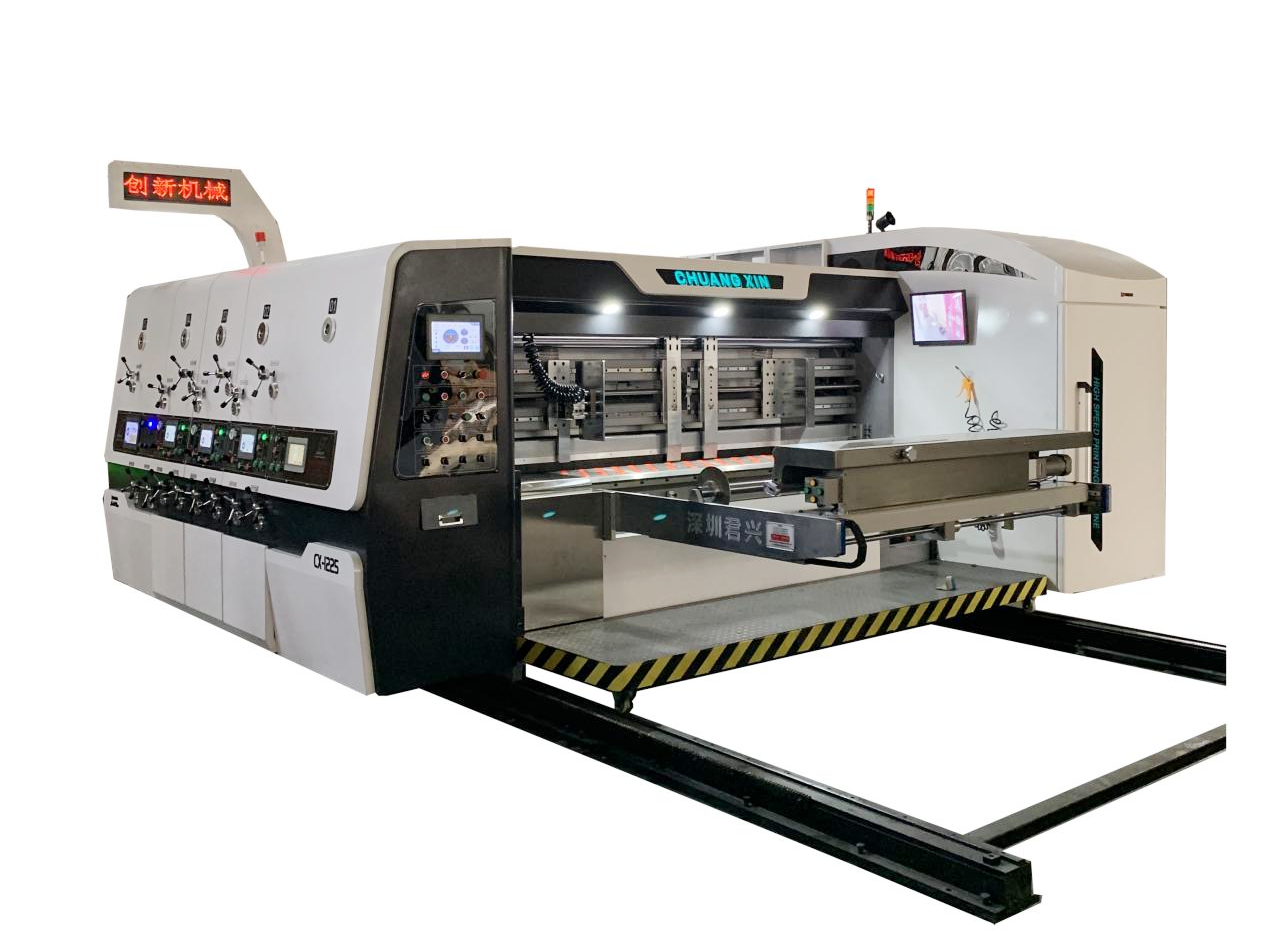

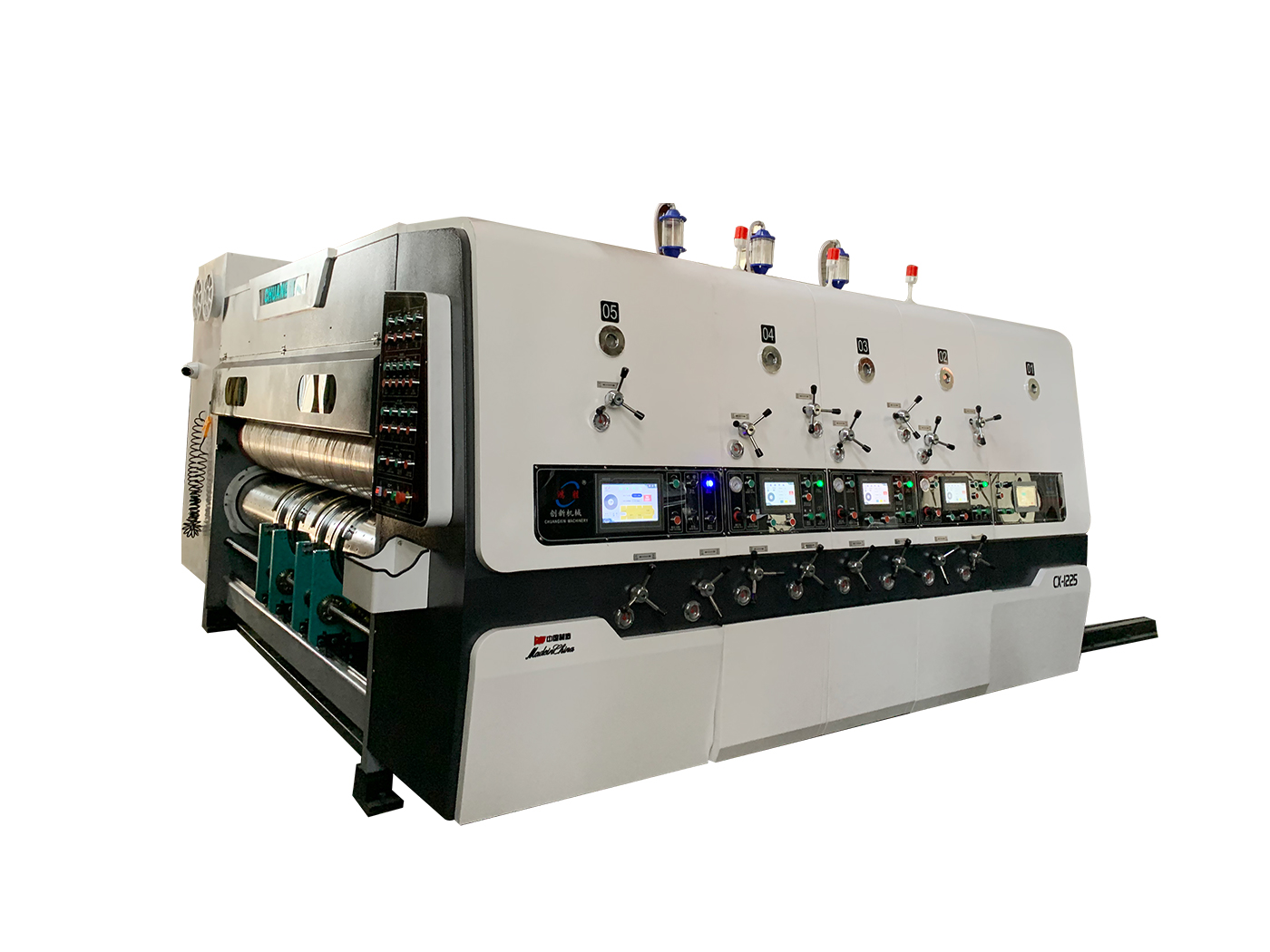

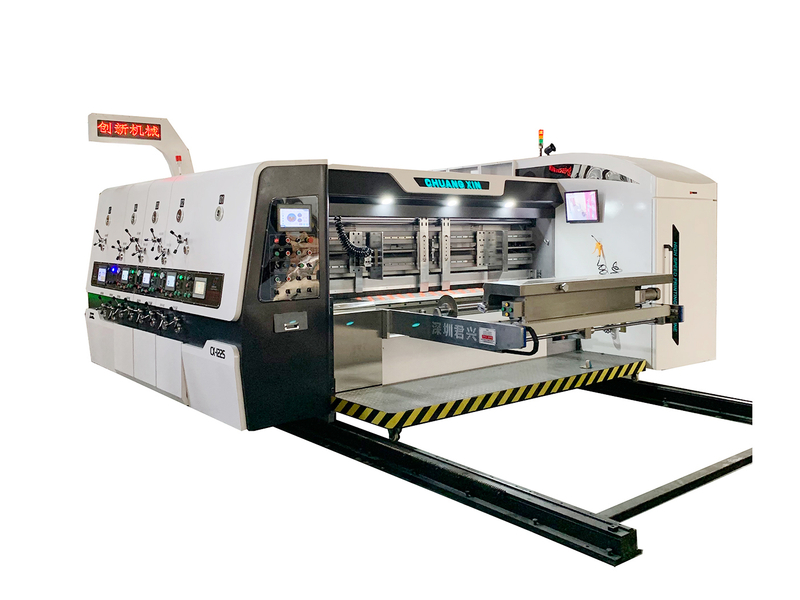

High speed corrugated flexo bottom printer every unit can be separated automatically or manually and an audible alarm sounds during the opening and closing for safe operation.
Every unit of the corrugated flexo printer machine is also equipped with an emergency stop switch for increased safety. The machine operator, working inside each unit can stop the unit from moving at any time.
The high speed corrugated flexo bottom printer is also equipped with an automatic lubrication system that keeps the lubricant levels in all of the units uniform at all times.
Model | OY-1022 | OY-1224 | OY-1228 | OY-1424 | OY-1428 | |
Max. design speed (pcs/min) | 260 | 260 | 260 | 260 | 260 | |
Working speed (pcs/min) | 0-200 | 0-200 | 0-200 | 0-200 | 0-200 | |
Max. feeding size (mm) | 1000×2200 | 1200×2400 | 1200×2800 | 1400×2400 | 1400×2800 | |
Max. printing size(mm) | 980×2000 | 1150×2200 | 1150×2600 | 1350×2200 | 1350×2600 | |
Min. feeding size (mm) | 280×580 | 360×700 | 360×700 | 380×700 | 380×700 | |
Min. slot size | Reverse | 235×65 | 265×100 | 265×100 | 265×100 | 265×100 |
Positive | 135×135 | 165×165 | 165×165 | 165×165 | 165×165 | |
Standard printing plate thickness | 7.2mm | 7.2mm | 7.2mm | 7.2mm | 7.2mm | |

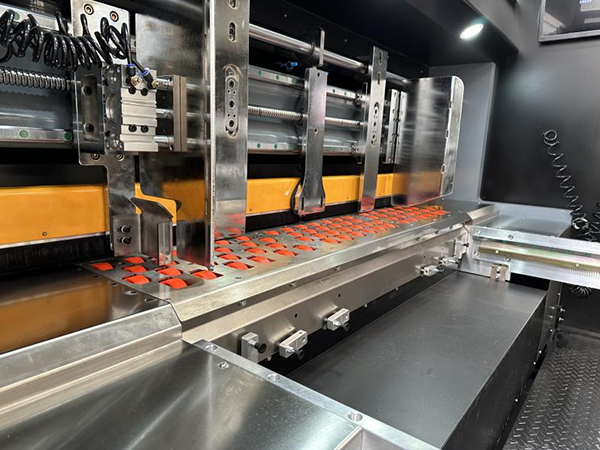

Features of Feeder Unit
This carton making machine is designed with a belt type lead edge feeder. The suction fan is used for aiding the feeding of warped boards. The suction strength can be adjusted depending on your actual demands.
The front plate is manually adjusted, with a graduated scale used for displaying the adjusted condition.
Forward and backward movement of back board is adjusted by computer with digital display. Its angle is adjusted manually.
The side gauge is also adjusted by computer. The parameter to be adjusted can be preset through the touch screen.
The auto flexo printer slotter die cutter and stacker is designed with a dust removing device at the feeder unit for the cleaning of dust and impurity on the paperboard, thus improving printing quality.
The frequency adjustment of main motor is controlled by PLC program. The man-machine interface is equipped with LCD screen.
The paperboard kicking aluminum plate will be return to zero whenever the machine stops.
This feeder is ideal for single wall, double wall and triple wall corrugated boards. E flute corrugated board is included.
The printer unit of our B series auto flexo printer slotter die cutter and stacker is available in 1 to 5 color printing or more color printing. Apart from ordinary cartons, it can also print high quality and precision polychrome printing cartons such as fruit case, gift box, beer case, etc.

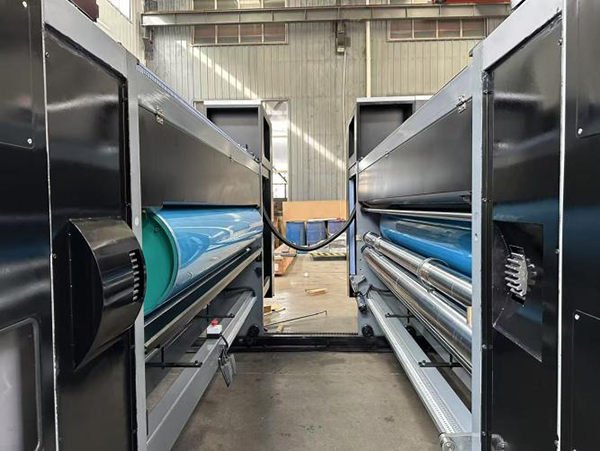

Features of Printer Unit
The flexo printer slotter is equipped with a steel anilox roller.
The inking system employs a rubber cushion roller.
Due to a quick flexo plate changing device, the flexo plate can be easily mounted and dismounted.
Phase adjustment in printing features PLC and touch screen control which can achieve 360 degree adjustment.
Planetary gear type phase adjustment device shows long service life.
The flexo printing machine is equipped with an automatic brake which will prevent the print cylinder from rotating when it is separated or in phase adjustment, thus keeping the original gear position unchanged.
With auto reset system, the print cylinder can be automatically returned to zero after being washed.
The printer is equipped with an auto anilox roller lifting device which automatically lifts the anilox roller and makes it separated with the printing plate when the feeding stops.
All clearance adjustments are completed by computer.

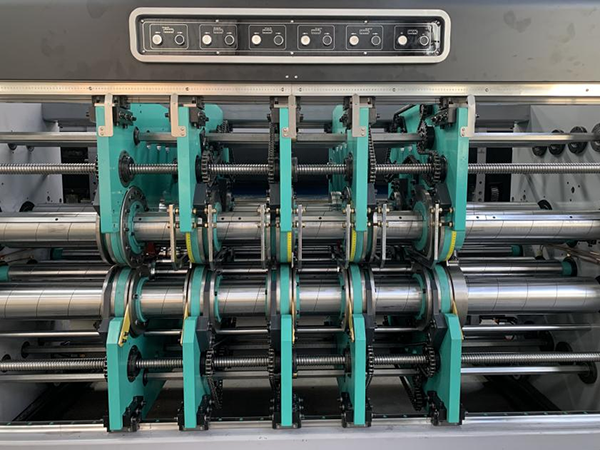

Features of Slotter Unit
The slotter unit of OUYE series flexo printer slotter, die cutter and stacker is used for making standard corrugated cartons. The printed paperboard will experience slotting, creasing, slitting and corner cutting in this part. Adjustment of slotting size and carton height can be manual or motorized.
Slotting phase adjustment and carton height adjustment is controlled by PLC and color screen. It is double frequency adjustment.
The phase adjustment device comes with planetary gear structure, thus ensuring long life span.
The 7mm wide slotting knives are made from alloy materials, which are treated by thermal processing and grinding, consequently ensuring sharp edge and high precision.
The interval of slotting and scoring is controlled by high precision ball screw, PLC and touch screen.
The slotter is designed with auto zero set system that has initial alignment and memory reset functions.
User-friendly operation interface with color touch screen ensures easy operation.

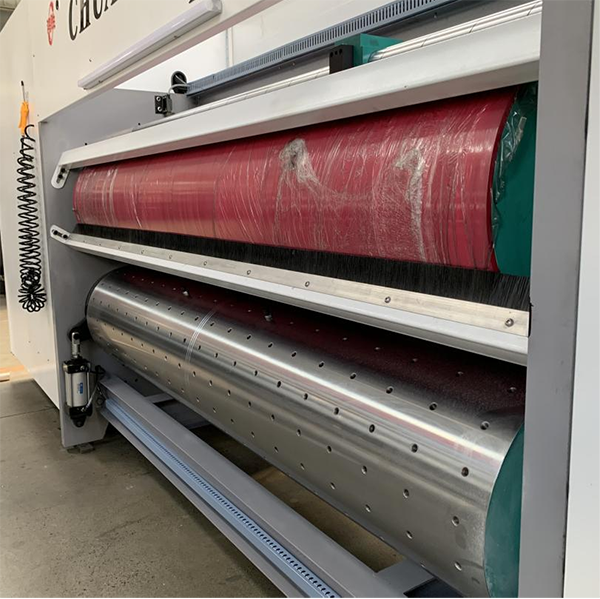

Features of Die Cutter Unit
The die cutter unit in this series flexo printer slotter, die cutter and stacker is great for die cutting special corrugated boards by installing different die-boards. It can die cut 2 to 3 or more paperboards once.
The rubber cushion roller can move at axial direction automatically and circularly.
Covered with the best-in-class rubber, the cushion roller can perform perfectly.
It is designed with auto-reconditioning device for worn cushion roller.
The linear speed of the upper and lower rollers will be automatically compensated after they are repaired.
The die cutter unit comes with versatility. That is, it is favorable for quick change of slotting and die cutting.
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
