1. The whole machine is designed and manufactured in accordance with high speed, high precision, high efficiency, reliable stability and safety.
2. Transmission system: the transmission gear is made of 20CrMnTi steel, fine grinding, national standard 5 precision, using keyless connection ring and cross slider structure, to achieve no side gap gear transmission, can achieve long-term printing registration.
3. The whole machine is divided into one key, automatic split and automatic combination, automatic locking.
4. Printing department computer control, automatic plate, try to print a cardboard can print out the finished product.
5. Grooving tool adjustment while the leading edge of the left and right baffle synchronous adjustment in place, greatly reduce the order change time.

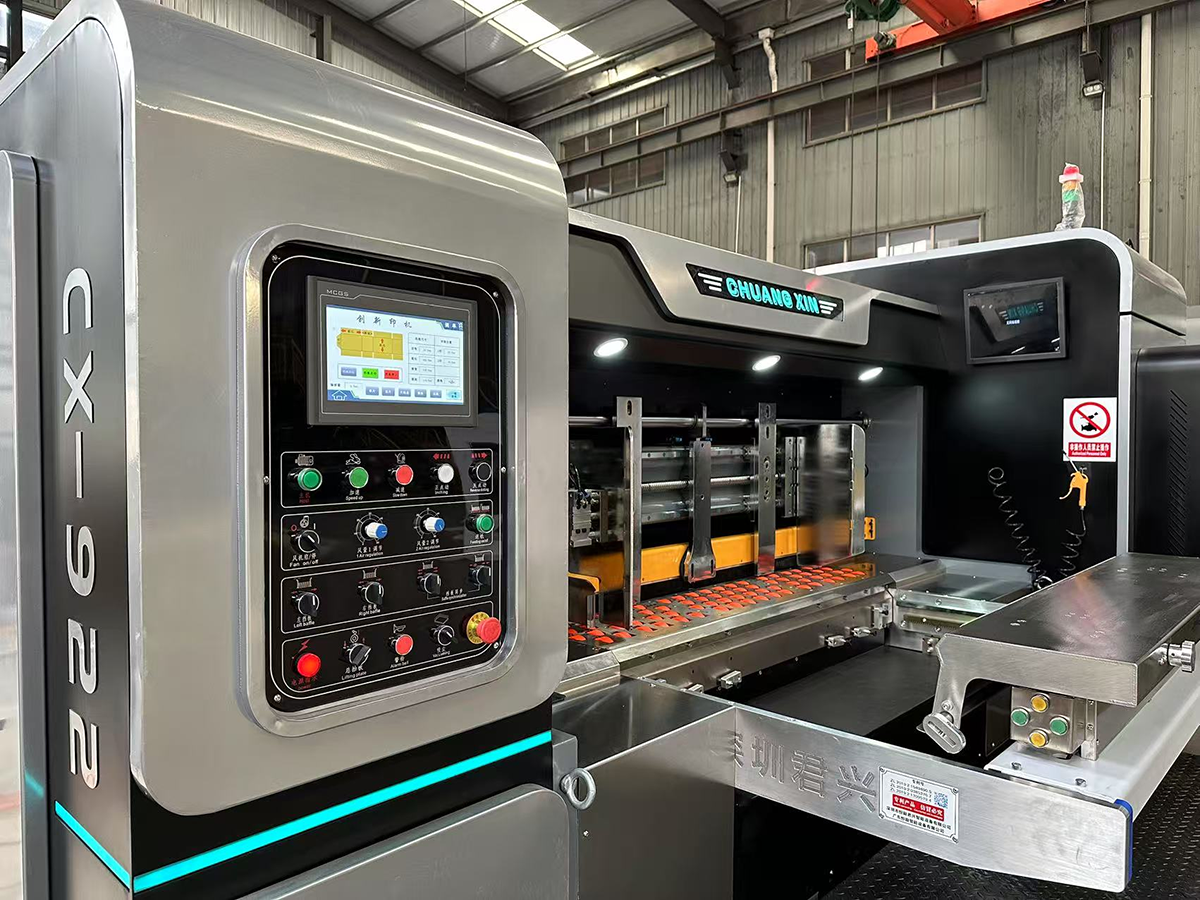

Feeding Unit
1. Servo pressure free type: servo pressure free leading edge roller feed system, supporting four servo motors, intelligent control, accurate, no gear wear caused by the paper feed precision reduction.
2. Zero pressure does not damage the cardboard, and effectively overcome the cardboard warping, improve the accuracy of the paper feed, make the high and low speed paper feed more accurate.
3. The electric control machine is clutch, and the continuous ringing prompts between marching to ensure the safety of operators. The drive shaft is attached with friction clutch to avoid damage to the machine due to misoperation.

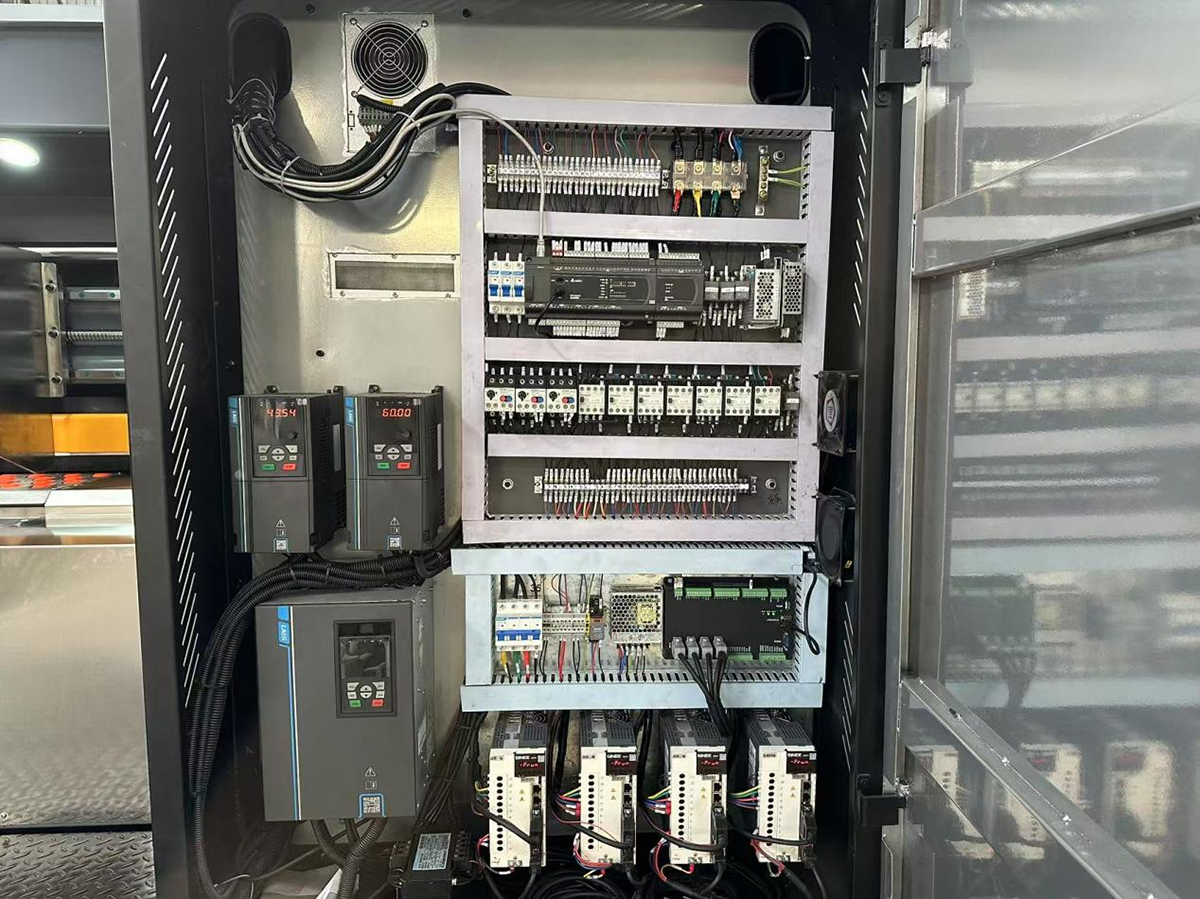

Electrical Control Cabinet
The use of international brand electrical appliances, the whole machine runs stable, the adjustment value is accurate.

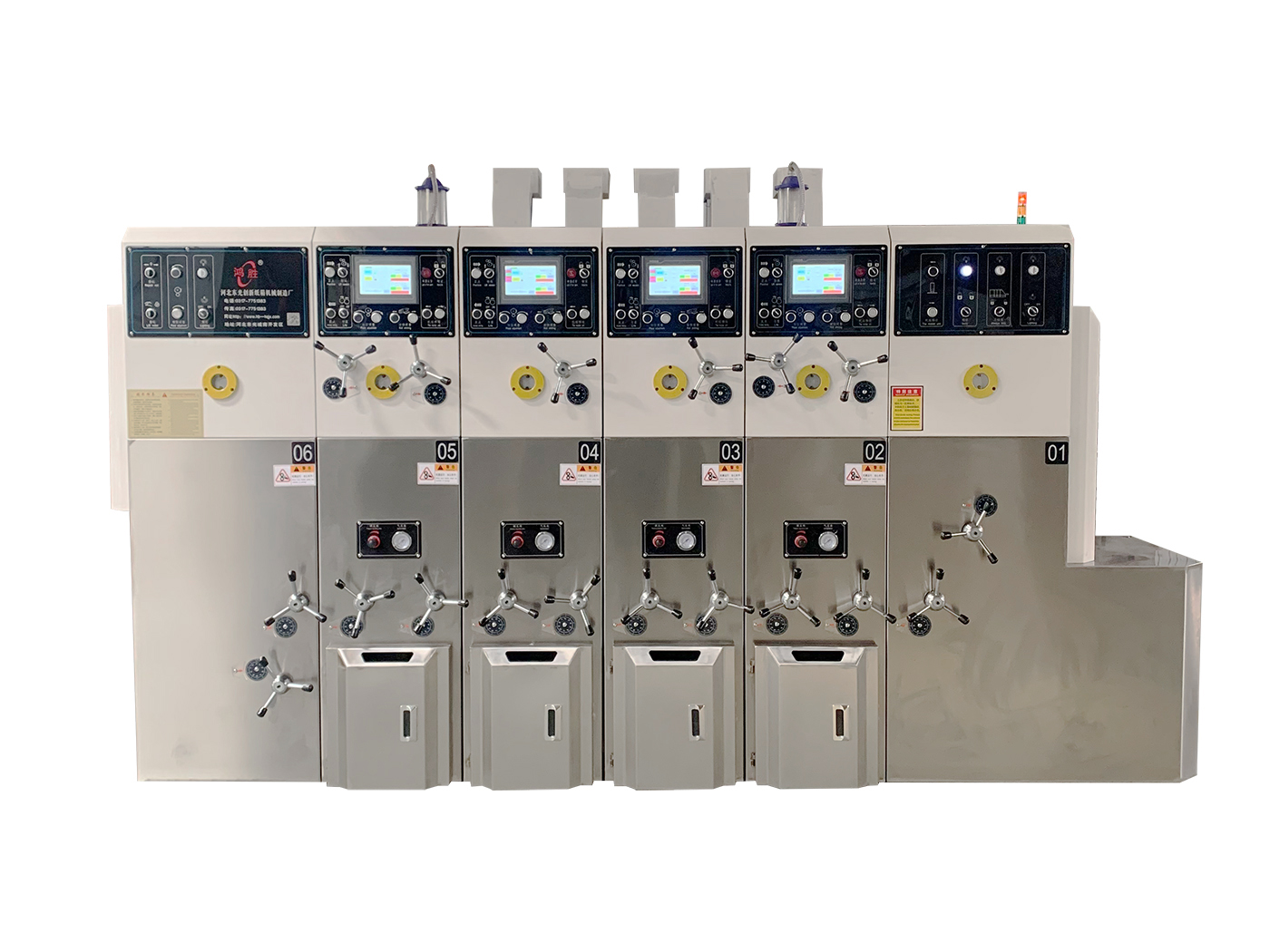

Printing Unit
1. The printing phase adopts full computer digital 360 degree adjustment (operation, shutdown can be), phase modulation accuracy up to 0.1mm.
2. Printing phase using PLC control digital display computer screen electric digital 360 degree adjustment (operation, shutdown can be adjusted accuracy up to 0.1mm.
3. The machine in the process of work, if you need to open the machine for erasing the version afte

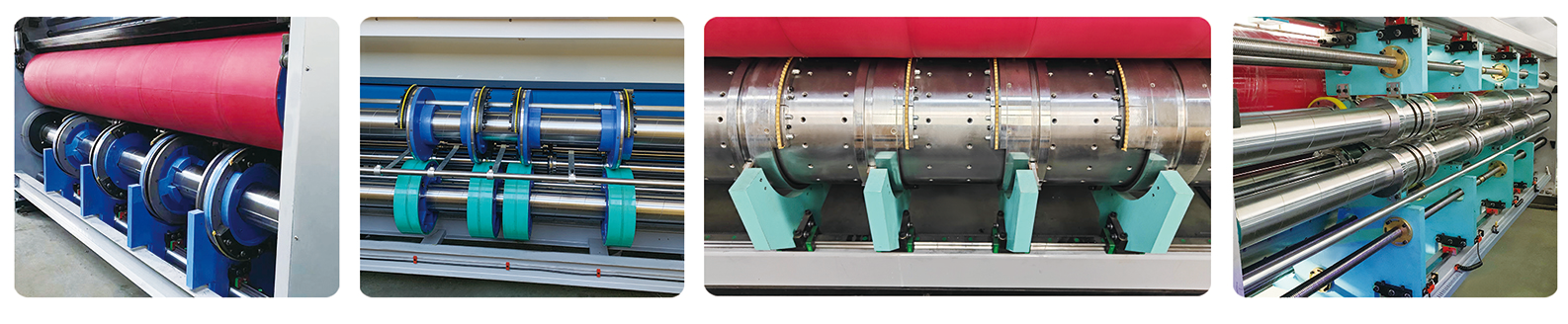

Slotter Unit
All kinds of slotting methods for cardboard can be customized

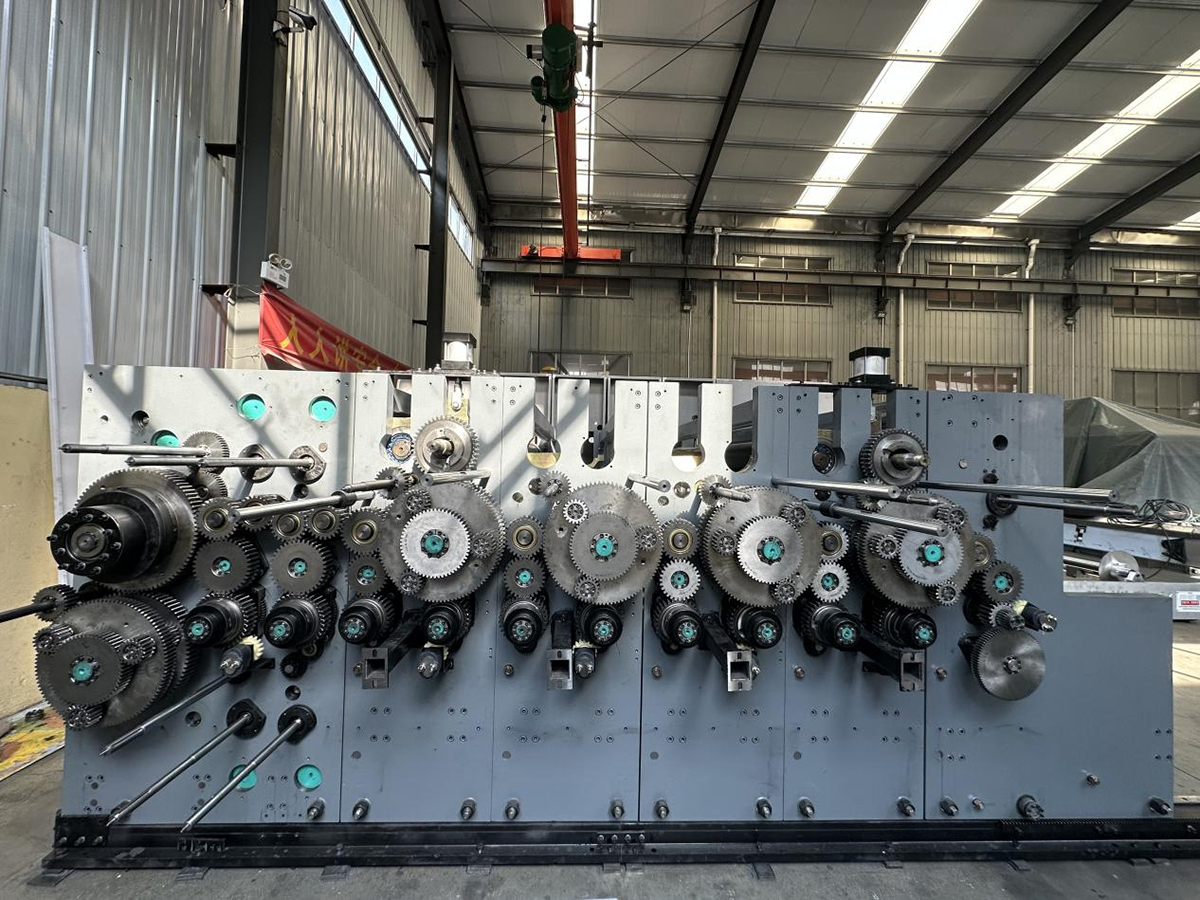

Main Driving Gear
1. The main drive gear thickness of 50mm die-cutting part of the gear thickness of 50-80mm are made of 20CrMnTi steel, after forging, tempering, carburizing treatment, fine grinding processing, five level accuracy.
2. Smooth operation, low noise, hardness HRC58 ~ 62, long life, can achieve long-term printing registration.
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
