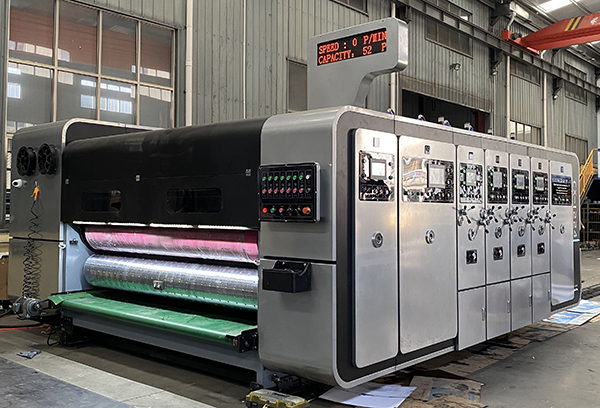

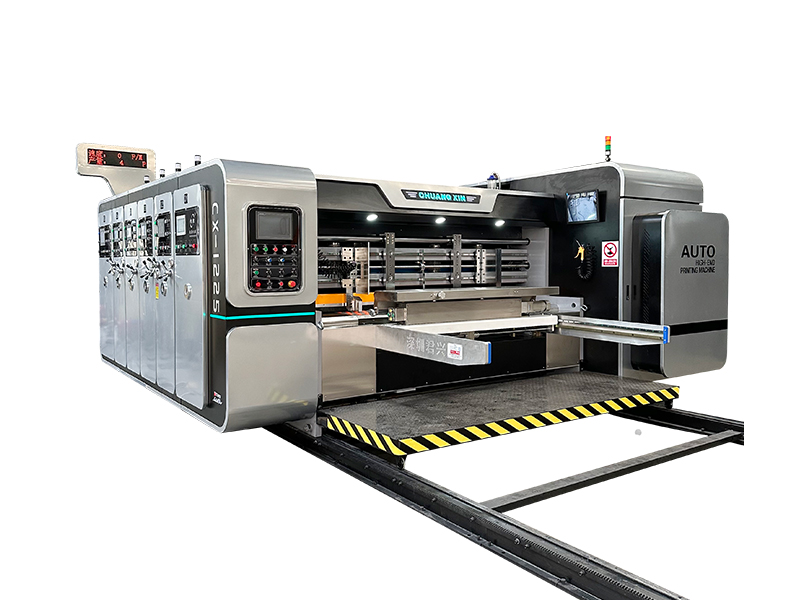

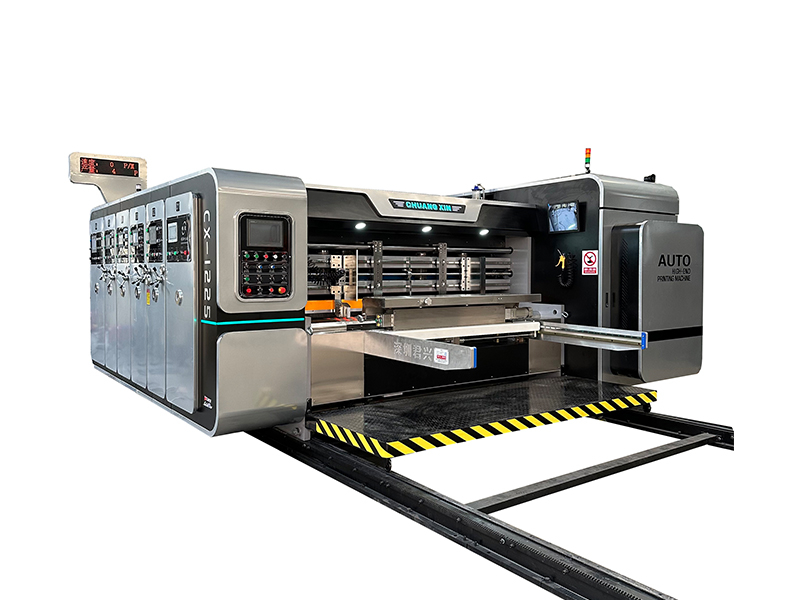

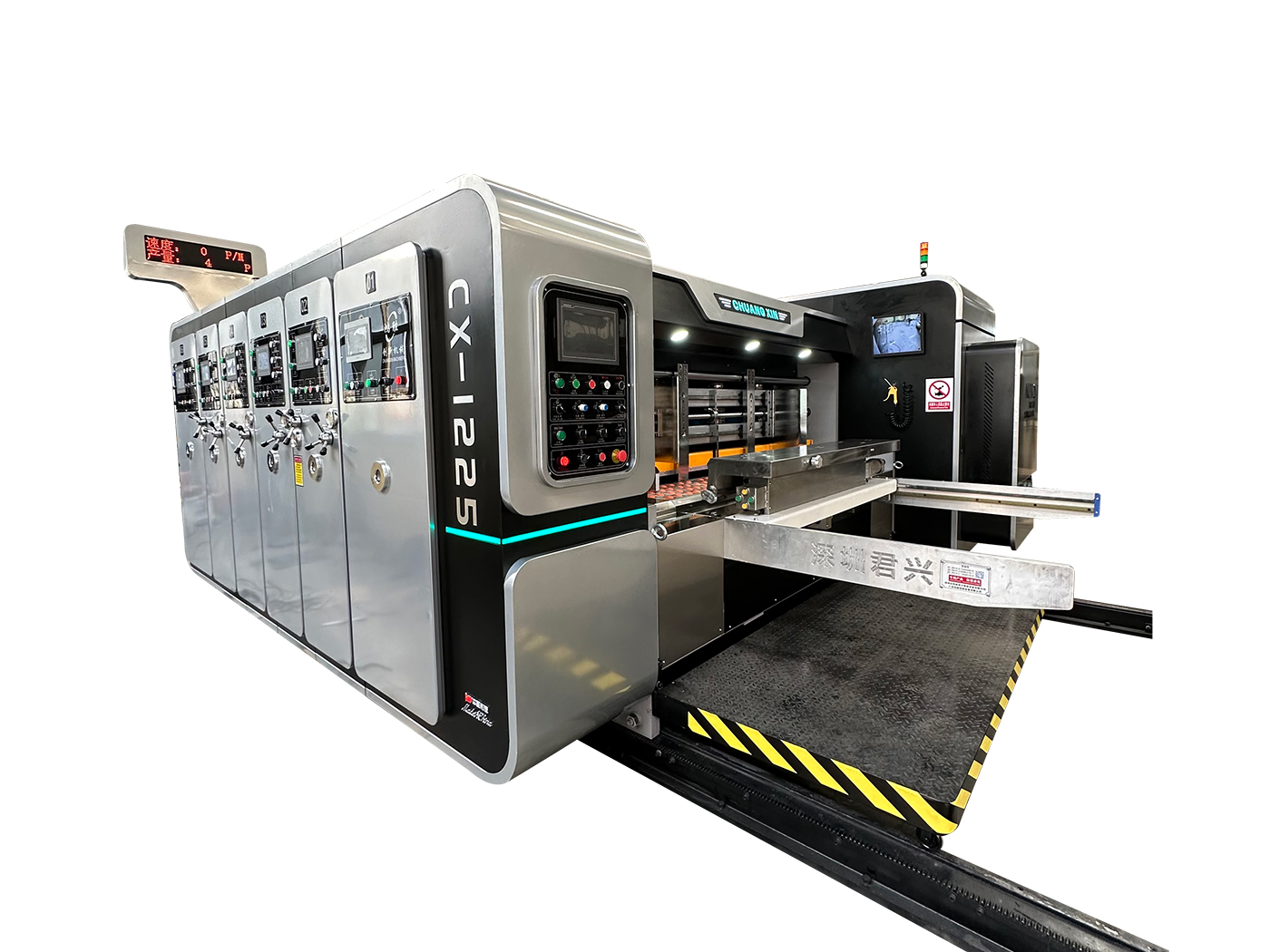

OUYE-A series auto flexo printer slotter die cutter and stacker is mainly used for printing high quality colors on corrugated cartons. It is especially suitable for polychrome printing.
The machine technique parameter: |
||||||||
Type Project |
0618 |
0922 |
1224 |
1228 |
1426 |
1624 |
1628 |
1835 |
Maximum speed (piece/min) |
350 |
300 |
260 |
260 |
260 |
180 |
180 |
150 |
Paperfeedingprecision(mm) |
±1.0 |
±1.0 |
±1.0 |
±1.0 |
±1.0 |
±1.0 |
±1.0 |
±1.0 |
Maximum feed size(mm) |
650*1850 |
900x2200 |
1200*2400 |
1200*2800 |
1400x2600 |
600x2500 |
1600x2900 |
1800*3500 |
Mnimum feed size(mm) |
200*430 |
260x600 |
350x600 |
380×600 |
380x600 |
420x600 |
420×600 |
450x650 |
Size of drawing paper(mm) |
800*1850 |
1100*2200 |
1500x2400 |
1500*2800 |
1700*2600 |
1900x2400 |
1900x2800 |
2000x3300 |
Maximum printing area(mm) |
600*1800 |
880*2200 |
1180x2400 |
1180*2800 |
1380*2600 |
1580*2400 |
1580*2800 |
1780*3500 |
Printing set(mm) |
±0.5 |
±0.5 |
±0.5 |
±0.5 |
土0.5 |
土0.5 |
±0.5 |
±0.5 |
Thickness of standard printing plate(mm) |
5mm |
5mm |
5mm |
5mm |
5mm |
5mn |
5mm |
5mm |
Minimum slotting interval (mm) |
90*90 |
160*160 |
160x160 |
160*160 |
160*160 |
160*160 |
160x160 |
180x180 |
Sloting accuracy(mm) |
±1.5 |
±1.5 |
±1.5 |
士1.5 |
±1.5 |
±1.5 |
±1.5 |
+1.5 |
Die cuting precision(mm) |
±1.5 |
士1.5 |
±1.5 |
±1.5 |
±1.5 |
± 1.5 |
±1.5 |
±1.5 |
1. This type of corrugated box making machine employs advanced belt type lead edge feeder which ensures easy operation, making feeding fast, stable and precise.
2. Our auto flexo printer slotter die cutter and stacker comes with a 7 inch color touch screen which is favorable for order pre-set (200 orders can be pre-set), order inquiry, order memory and readout, synchronous zero set, automatic and manual phase adjustment, parameter management, automatic inking and automatic display of production quantity and speed.
3. All adjustments are available in computer control and motorized control, adapting to user habits and convenient for user selection.
4. The drive rollers of this auto flexo printer slotter die cutter and stacker are all made of high quality steel pipes which have experienced thermal refining, hard chromium plating, correcting and drilling balancing, hence ensuring stable running. Gears are made from high quality alloy steel through quenching treatment.
5. The clearance between rollers can be adjusted depending on the self locking function of worm gear case. Disc handle seat makes it more convenient and faster.
6. Lateral and longitudinal movement of slotting knife are motorized adjust. Box height is also motorized adjust.
7. The die cutting part of this auto flexo printer slotter die cutter and stacker is equipped with speed-limited compensation mechanism so that the die cut roller can move crosswise 40mm.
8. This carton machinery also boasts printing and slotting memory functions, ensuring automatic zero set and automatic slotting reset. The slitter is driven by ball screw, keeping stable operation and high accuracy.
9. Main electrical elements comply with European quality standard.
10.The high speed auto flexo printer slotter, die cutter and stacker, with computer memory function, can memorize 999 orders. The highest speed can reach 300 sheets per minute.

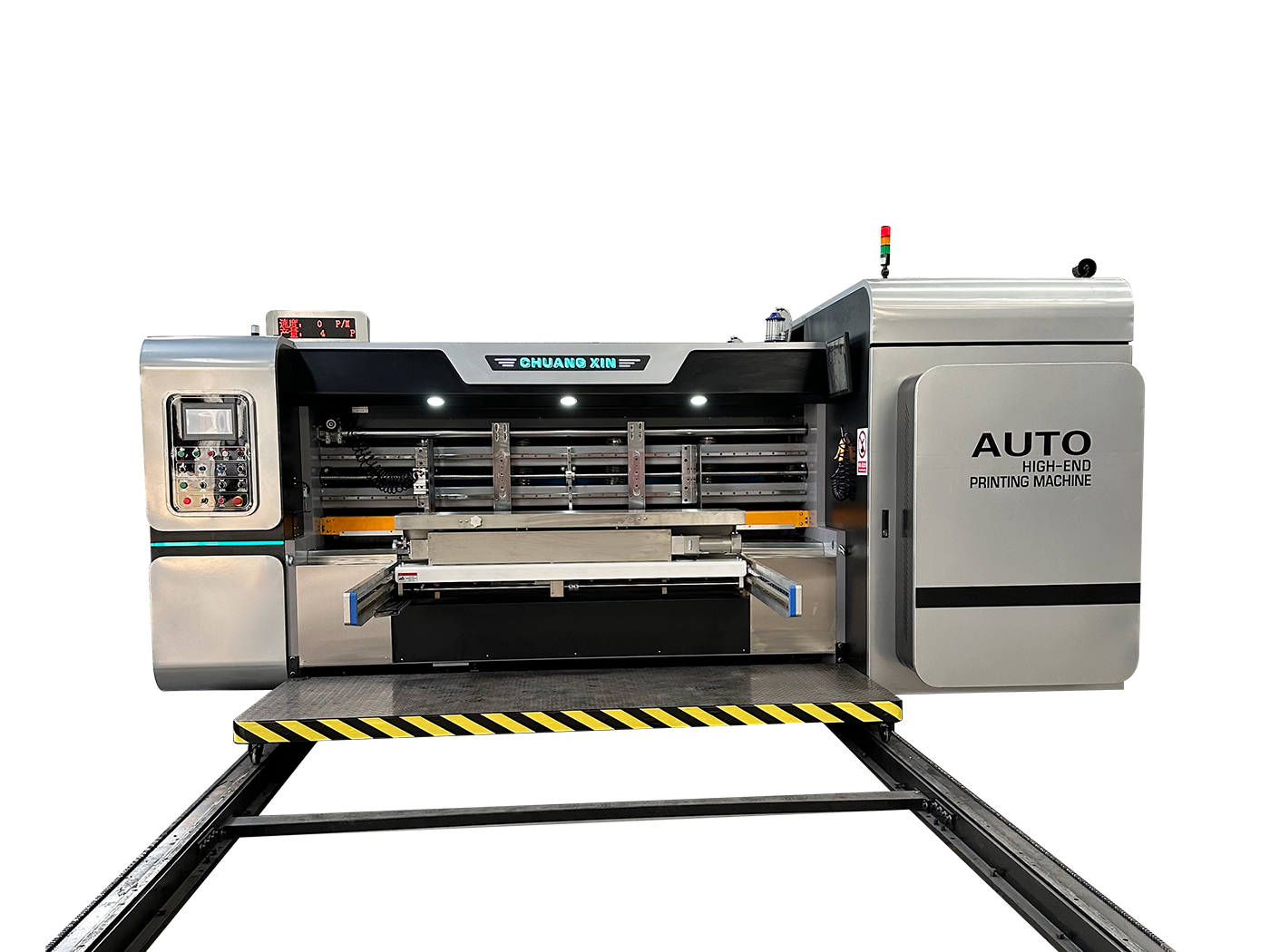

Feeder unit
1. This printing slotting and die cutting machine is provided with a belt type lead edge feeder which features easy operation and maintenance
2. Thanks to the lead edge device, the paperboard can avoid being warped and feeding error is reduced.
3. Suction hold-down device is typically designed for aiding the feeding of warped board. The suction strength can be manually adjusted as per needs. Display on dial ensures convenience.
4. The left and right side gauge movement can be adjusted by computer. It comes with pneumatic aligning device.
5. Forward and backward back shield movement can also be adjusted by computer. Angle is manually adjusted.
6. Equipped with the company's unique parallel fit type suction dust removal mechanism,for large field and high network printing has a reliable guarantee, while effectively reducing the number of stoppage erase.
7. It is suitable for 3 ply, 5 ply and 7 ply corrugated cardboard, including corrugated board E.

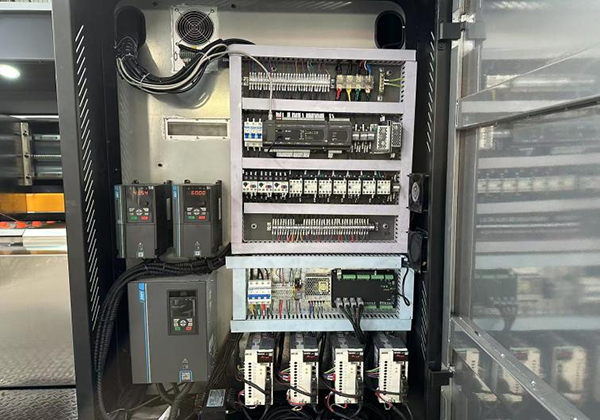

Electrical control cabinet
The use of international brand electrical appliances, the whole machine runs stable, the adjustment value is accurate.
The flexo printer can implement 1 to 5 color printing or more color printing. It can print not only ordinary cartons but also high quality and high precision polychrome printing cartons such as fruit case, gift box, beer case, etc.
Features of Printer Unit

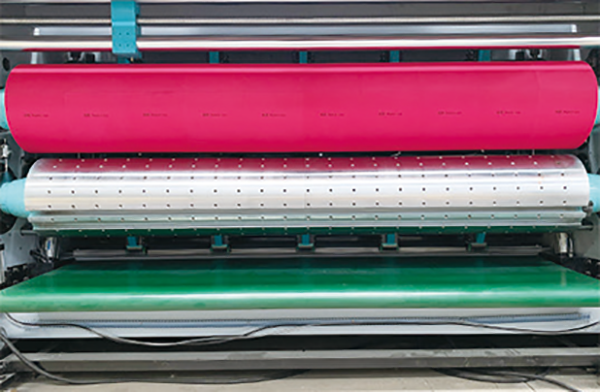

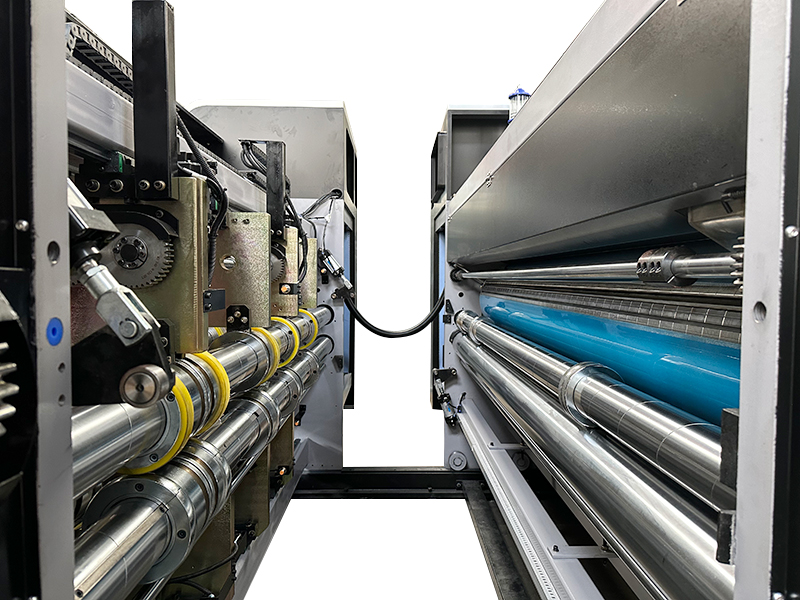

The printer unit of this series flexo printer slotter die cutter and stacker is equipped with steel Anilox roller.
It is a standard machine supplied with rubber roller inking system. (Two scraping knife inking system is on option)
Quick change device makes mounting and disassembly of flexo printing plates faster and more convenient.
Phase adjustment is controlled by PLC and touch screen, which ensures all-round adjustment.
Planetary gear phasing adjustment mechanism comes with long service life.
The printing unit is provided with an automatic braking device which will prevent the printing cylinder from rotating when it is separated or in phase adjustment. Since that, the original gear position is unchanged.
Automatic reset system ensures auto return to zero after the print roll is cleaned.
Axial adjustment is controlled by computer with digital display. The adjust distance is up to 20mm.
Auto lifting device for the anilox roller makes sure that the anilox roller will rise and be separated with the printing plate when feeding stops.
All clearance adjustments can be completed by computer.
The slotter unit in this flexo printer slotter, die cutter and stacker is used for making standard corrugated cartons. It can complete slotting, creasing, slitting and corner cutting at one stroke. Slotting size and carton height is motorized or manual adjust.
Features of Slotter Unit

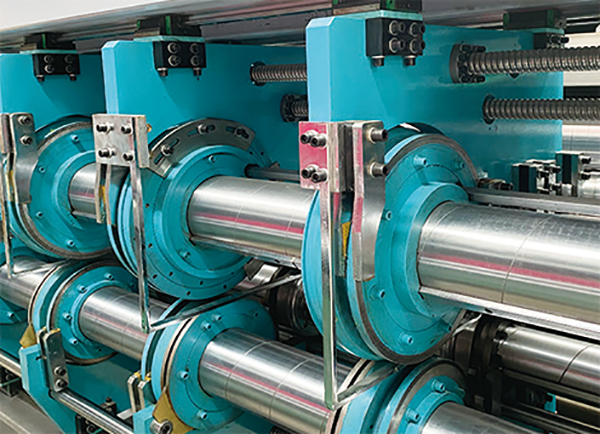

The slotting unit comes with double scoring rollers. The paperboard that has been scored in advance is hard to damage.
Slotting phase adjustment and carton height adjustment can be done by PLC, with color screen display. It is double frequency adjustment.
The phase adjustment device is made of planetary gear, thus ensuring long life span.
The slotting head, with width of 7mm, is made from alloy materials by thermal treatment and comes with sharpness and high precision.
The clearance of slotting and scoring is controlled by high precision ball screw, PLC and touch screen.
The slotter boasts auto zero set function.

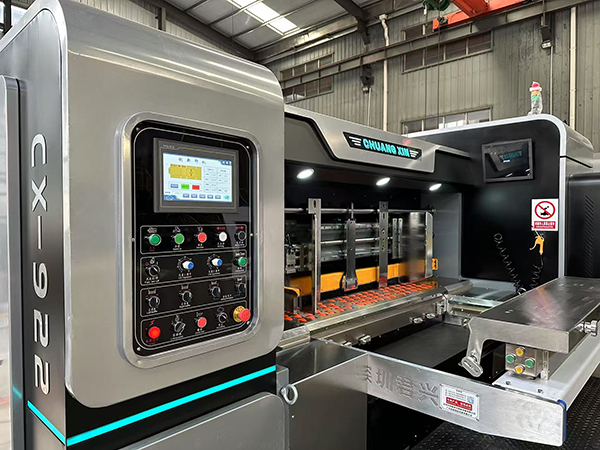

User-friendly operation interface with color touch screen ensures easy operation.

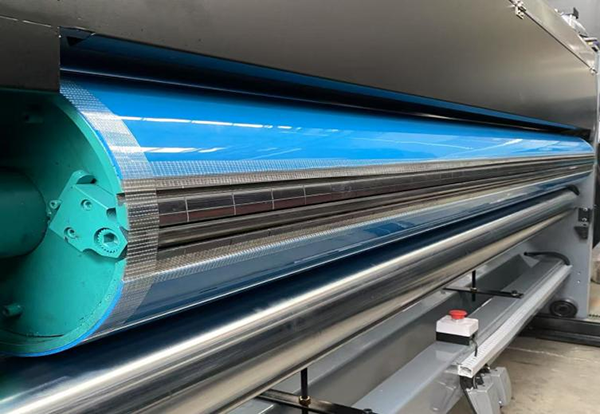

The die cutter unit in the flexo printer slotter, die cutter and stacker can be used for die cutting special corrugated boards. 2 to 3 or more boards can be cut at one stroke.
Features of Die Cutter Unit
The folding carton die cutter comes with steel die cut roller with hard chrome plating treatment and grinding process on surface.
The die cut roller features balance correcting function, hence ensuring stable running.
The cushion roller is designed with an automatic moving device on axial direction, allowing it to move about 40mm.
An automatic compensation device can prolong the service life of cushion roller.
The die cutting phase adjustment is controlled by PLC and color touch screen.
Planetary gear structure of phase adjustment device shows long service life.
Axial position adjustment is controlled by computer with digital display.
1. In addition to the standard configuration of the main function of die cutting, in addition to the configuration of four sets of steel die, do ordinary industrial box slotting, cutting Angle, side use, servo motor four knife synchronous adjustment, electric transverse movement. One click change order, can store 999 orders, convenient and fast.
2. Using 8 sets of servo motor tool adjustment, high precision, fast tool adjustment speed.
3. adjust the box type there are 4 order modes: continuous box, single box (double molding), heaven and earth cover box, template shaped box.
4. Tool adjustment at the same time, the leading edge left and right gear electric control synchronous adjustment.
5. The use of a pre-pressure, a solid pressure, are synchronous servo motor adjustment, easy to operate, forming effect is better.
Shock the waste removal department
1. The vibrating chip removal machine adopts a series of round belt design, and the cardboard passes through the middle.
2. Independent motor control vibration shaft, can adjust the speed.
3. Equipped with 2 axial flow fans, can effectively clear the residual paper scraps on the surface of the board.
4. There is a conveyor belt at the lower part of the shaker, and the paper scraps are concentrated and transported to the transverse belt.

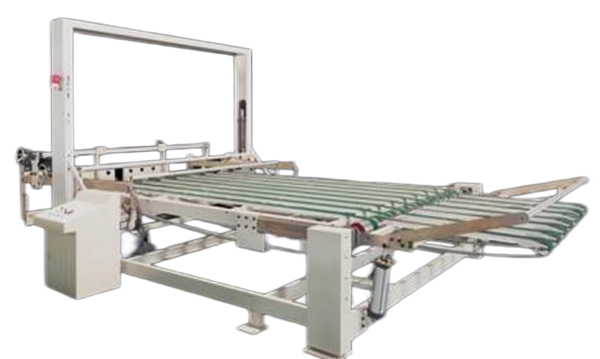

Stacker Machine
Blank taking arm:
1. It has two control modes: the manual and automatic.
2. The speed of driving belt of board catching arm is set with inverter and its tension can be also adjusted independently without any limit of belt length with easy, flexible and rapid in adjustments.
Elevation of working Table:
1. Driven by the strong chain to ensure its smooth lifting and falling.
2. Auto stacking up to 1600mm, the worktable elevation is fixed with protector.
3. The lifting driving motor of the worktable is equipped with the braking to keep it in position without any sliding.
Board Catching Guard Plate:
1. The board catching plate is driven pneumatically and board stacking height is controlled by photoelectrical sensor.
2. The rear guard plate’s position can be adjusted manually depending on the board length.
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
Hot Tags: High-Definition Printer Dryer Die Cutter Machine, Box Printing And Cutting Machine, Cardboard Printing Machine, Corrugated Box Printer, Carton Printing Slotting Die Cutting Machine, Hd Carton Printing Machine, Vacuum Transfer Bottom Printer, Automatic Corrugated Carton Box Production Line, 6 Color Flexo Printing Machine, Corrugated Making Machine, China, Customized, private label, Bulk, discount, manufacturers, factory, suppliers, manufacturing company, price

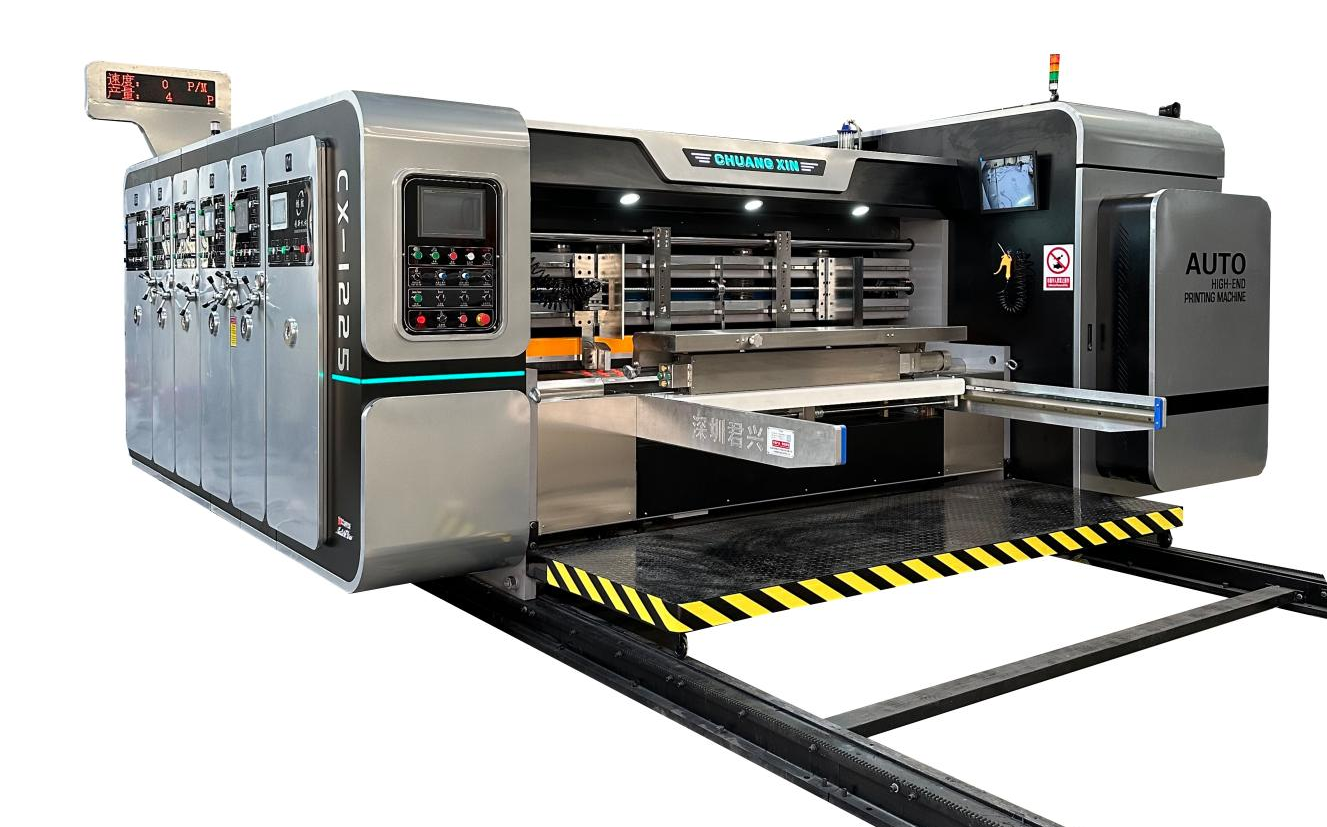

OUYE-A series auto flexo printer slotter die cutter and stacker is mainly used for printing high quality colors on corrugated cartons. It is especially suitable for polychrome printing.
The machine technique parameter: |
||||||||
Type Project |
0618 |
0922 |
1224 |
1228 |
1426 |
1624 |
1628 |
1835 |
Maximum speed (piece/min) |
350 |
300 |
260 |
260 |
260 |
180 |
180 |
150 |
Paperfeedingprecision(mm) |
±1.0 |
±1.0 |
±1.0 |
±1.0 |
±1.0 |
±1.0 |
±1.0 |
±1.0 |
Maximum feed size(mm) |
650*1850 |
900x2200 |
1200*2400 |
1200*2800 |
1400x2600 |
600x2500 |
1600x2900 |
1800*3500 |
Mnimum feed size(mm) |
200*430 |
260x600 |
350x600 |
380×600 |
380x600 |
420x600 |
420×600 |
450x650 |
Size of drawing paper(mm) |
800*1850 |
1100*2200 |
1500x2400 |
1500*2800 |
1700*2600 |
1900x2400 |
1900x2800 |
2000x3300 |
Maximum printing area(mm) |
600*1800 |
880*2200 |
1180x2400 |
1180*2800 |
1380*2600 |
1580*2400 |
1580*2800 |
1780*3500 |
Printing set(mm) |
±0.5 |
±0.5 |
±0.5 |
±0.5 |
土0.5 |
土0.5 |
±0.5 |
±0.5 |
Thickness of standard printing plate(mm) |
5mm |
5mm |
5mm |
5mm |
5mm |
5mn |
5mm |
5mm |
Minimum slotting interval (mm) |
90*90 |
160*160 |
160x160 |
160*160 |
160*160 |
160*160 |
160x160 |
180x180 |
Sloting accuracy(mm) |
±1.5 |
±1.5 |
±1.5 |
士1.5 |
±1.5 |
±1.5 |
±1.5 |
+1.5 |
Die cuting precision(mm) |
±1.5 |
士1.5 |
±1.5 |
±1.5 |
±1.5 |
± 1.5 |
±1.5 |
±1.5 |
1. This type of corrugated box making machine employs advanced belt type lead edge feeder which ensures easy operation, making feeding fast, stable and precise.
2. Our auto flexo printer slotter die cutter and stacker comes with a 7 inch color touch screen which is favorable for order pre-set (200 orders can be pre-set), order inquiry, order memory and readout, synchronous zero set, automatic and manual phase adjustment, parameter management, automatic inking and automatic display of production quantity and speed.
3. All adjustments are available in computer control and motorized control, adapting to user habits and convenient for user selection.
4. The drive rollers of this auto flexo printer slotter die cutter and stacker are all made of high quality steel pipes which have experienced thermal refining, hard chromium plating, correcting and drilling balancing, hence ensuring stable running. Gears are made from high quality alloy steel through quenching treatment.
5. The clearance between rollers can be adjusted depending on the self locking function of worm gear case. Disc handle seat makes it more convenient and faster.
6. Lateral and longitudinal movement of slotting knife are motorized adjust. Box height is also motorized adjust.
7. The die cutting part of this auto flexo printer slotter die cutter and stacker is equipped with speed-limited compensation mechanism so that the die cut roller can move crosswise 40mm.
8. This carton machinery also boasts printing and slotting memory functions, ensuring automatic zero set and automatic slotting reset. The slitter is driven by ball screw, keeping stable operation and high accuracy.
9. Main electrical elements comply with European quality standard.
10.The high speed auto flexo printer slotter, die cutter and stacker, with computer memory function, can memorize 999 orders. The highest speed can reach 300 sheets per minute.
Feeder unit
1. This printing slotting and die cutting machine is provided with a belt type lead edge feeder which features easy operation and maintenance
2. Thanks to the lead edge device, the paperboard can avoid being warped and feeding error is reduced.
3. Suction hold-down device is typically designed for aiding the feeding of warped board. The suction strength can be manually adjusted as per needs. Display on dial ensures convenience.
4. The left and right side gauge movement can be adjusted by computer. It comes with pneumatic aligning device.
5. Forward and backward back shield movement can also be adjusted by computer. Angle is manually adjusted.
6. Equipped with the company's unique parallel fit type suction dust removal mechanism,for large field and high network printing has a reliable guarantee, while effectively reducing the number of stoppage erase.
7. It is suitable for 3 ply, 5 ply and 7 ply corrugated cardboard, including corrugated board E.
Electrical control cabinet
The use of international brand electrical appliances, the whole machine runs stable, the adjustment value is accurate.
The flexo printer can implement 1 to 5 color printing or more color printing. It can print not only ordinary cartons but also high quality and high precision polychrome printing cartons such as fruit case, gift box, beer case, etc.
Features of Printer Unit
The printer unit of this series flexo printer slotter die cutter and stacker is equipped with steel Anilox roller.
It is a standard machine supplied with rubber roller inking system. (Two scraping knife inking system is on option)
Quick change device makes mounting and disassembly of flexo printing plates faster and more convenient.
Phase adjustment is controlled by PLC and touch screen, which ensures all-round adjustment.
Planetary gear phasing adjustment mechanism comes with long service life.
The printing unit is provided with an automatic braking device which will prevent the printing cylinder from rotating when it is separated or in phase adjustment. Since that, the original gear position is unchanged.
Automatic reset system ensures auto return to zero after the print roll is cleaned.
Axial adjustment is controlled by computer with digital display. The adjust distance is up to 20mm.
Auto lifting device for the anilox roller makes sure that the anilox roller will rise and be separated with the printing plate when feeding stops.
All clearance adjustments can be completed by computer.
The slotter unit in this flexo printer slotter, die cutter and stacker is used for making standard corrugated cartons. It can complete slotting, creasing, slitting and corner cutting at one stroke. Slotting size and carton height is motorized or manual adjust.
Features of Slotter Unit
The slotting unit comes with double scoring rollers. The paperboard that has been scored in advance is hard to damage.
Slotting phase adjustment and carton height adjustment can be done by PLC, with color screen display. It is double frequency adjustment.
The phase adjustment device is made of planetary gear, thus ensuring long life span.
The slotting head, with width of 7mm, is made from alloy materials by thermal treatment and comes with sharpness and high precision.
The clearance of slotting and scoring is controlled by high precision ball screw, PLC and touch screen.
The slotter boasts auto zero set function.
User-friendly operation interface with color touch screen ensures easy operation.
The die cutter unit in the flexo printer slotter, die cutter and stacker can be used for die cutting special corrugated boards. 2 to 3 or more boards can be cut at one stroke.
Features of Die Cutter Unit
The folding carton die cutter comes with steel die cut roller with hard chrome plating treatment and grinding process on surface.
The die cut roller features balance correcting function, hence ensuring stable running.
The cushion roller is designed with an automatic moving device on axial direction, allowing it to move about 40mm.
An automatic compensation device can prolong the service life of cushion roller.
The die cutting phase adjustment is controlled by PLC and color touch screen.
Planetary gear structure of phase adjustment device shows long service life.
Axial position adjustment is controlled by computer with digital display.
1. In addition to the standard configuration of the main function of die cutting, in addition to the configuration of four sets of steel die, do ordinary industrial box slotting, cutting Angle, side use, servo motor four knife synchronous adjustment, electric transverse movement. One click change order, can store 999 orders, convenient and fast.
2. Using 8 sets of servo motor tool adjustment, high precision, fast tool adjustment speed.
3. adjust the box type there are 4 order modes: continuous box, single box (double molding), heaven and earth cover box, template shaped box.
4. Tool adjustment at the same time, the leading edge left and right gear electric control synchronous adjustment.
5. The use of a pre-pressure, a solid pressure, are synchronous servo motor adjustment, easy to operate, forming effect is better.
Shock the waste removal department

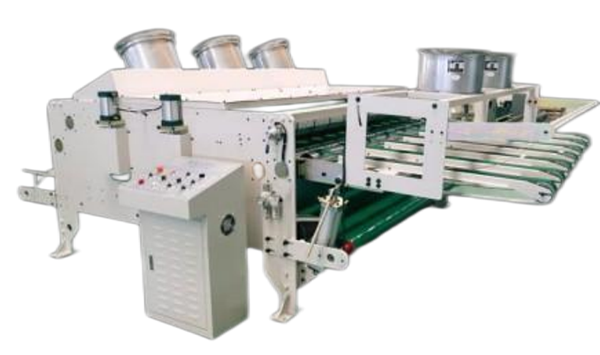

1. The vibrating chip removal machine adopts a series of round belt design, and the cardboard passes through the middle.
2. Independent motor control vibration shaft, can adjust the speed.
3. Equipped with 2 axial flow fans, can effectively clear the residual paper scraps on the surface of the board.
4. There is a conveyor belt at the lower part of the shaker, and the paper scraps are concentrated and transported to the transverse belt.
Stacker Machine
Blank taking arm:
1. It has two control modes: the manual and automatic.
2. The speed of driving belt of board catching arm is set with inverter and its tension can be also adjusted independently without any limit of belt length with easy, flexible and rapid in adjustments.
Elevation of working Table:
1. Driven by the strong chain to ensure its smooth lifting and falling.
2. Auto stacking up to 1600mm, the worktable elevation is fixed with protector.
3. The lifting driving motor of the worktable is equipped with the braking to keep it in position without any sliding.
Board Catching Guard Plate:
1. The board catching plate is driven pneumatically and board stacking height is controlled by photoelectrical sensor.
2. The rear guard plate’s position can be adjusted manually depending on the board length.
Hebei Ouye Carton Machinery Manufacturer is a leading intelligent factory specializing in the design and manufacturing of carton packaging machinery. As a modern enterprise that integrates design, production, sales, and after-sales service, we pride ourselves on our innovative capabilities and extensive manufacturing experience. Our commitment to continuous improvement allows us to address the shortcomings of existing packaging machinery both domestically and internationally, propelling us towards the development of intelligent, high-speed, and energy-efficient automated machinery.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: How to control quality?
A: Our company has a team of engineers with excellent skills and many years of practical experience. The core components of the machine have dedicated suppliers and designated brands, with dual control from details to technology. Finally, each machine undergoes strict individual testing before shipment,we have CE,ISO9001 Quality Certificationetc.
Q: What's the delivery time?
A: Around 30~50days, however, based on order.
Q: What's payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn't work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
Hot Tags: High-Definition Printer Dryer Die Cutter Machine, Box Printing And Cutting Machine, Cardboard Printing Machine, Corrugated Box Printer, Carton Printing Slotting Die Cutting Machine, Hd Carton Printing Machine, Vacuum Transfer Bottom Printer, Automatic Corrugated Carton Box Production Line, 6 Color Flexo Printing Machine, Corrugated Making Machine, China, Customized, private label, Bulk, discount, manufacturers, factory, suppliers, manufacturing company, price
